Chrysler
>>
2005
>>
Sebring TSi
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures - Except Coupe
>>
Connector PINOUTS
>>
Power Distribution Center
Power Distribution Center

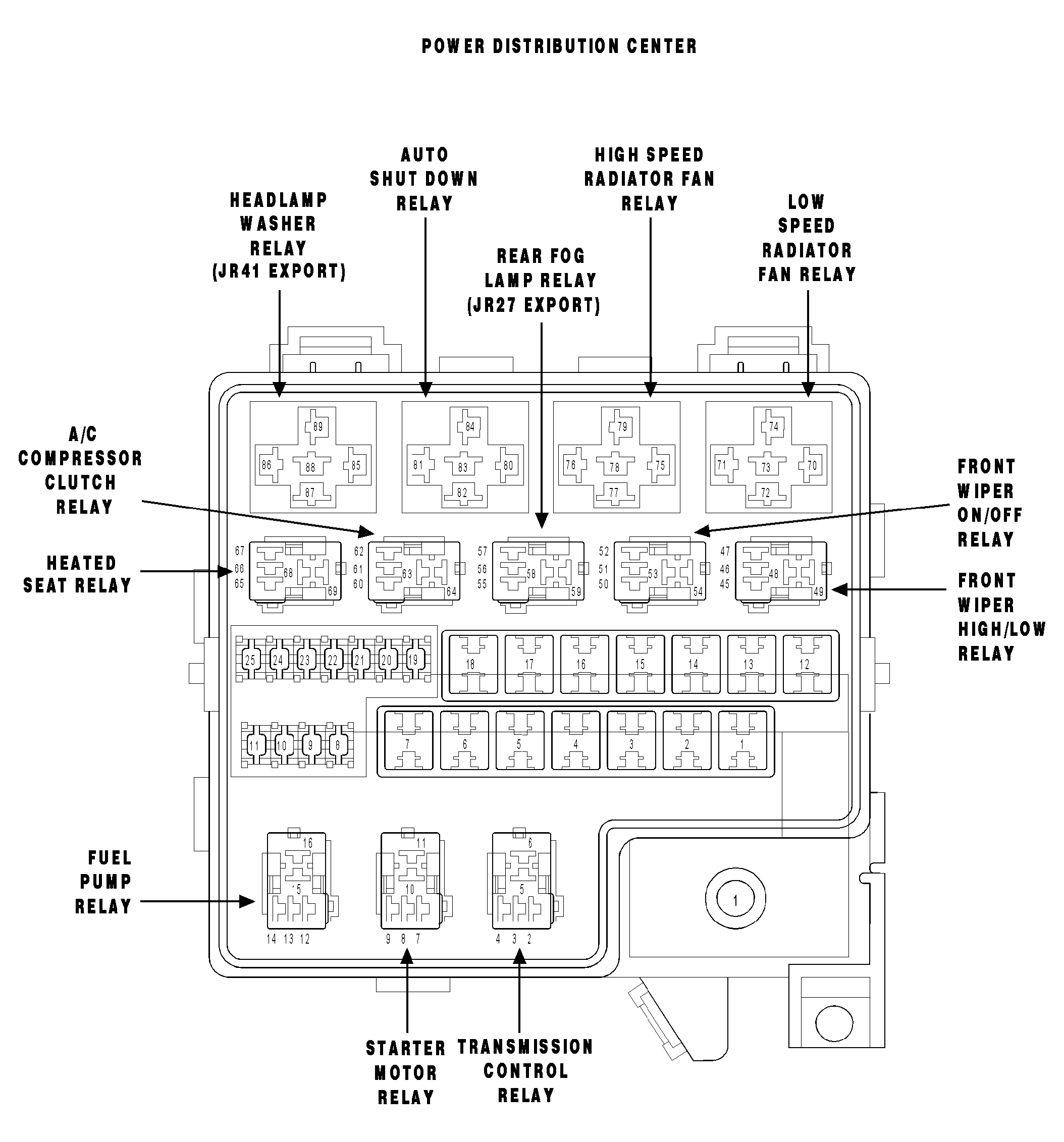

Fig 1: Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.

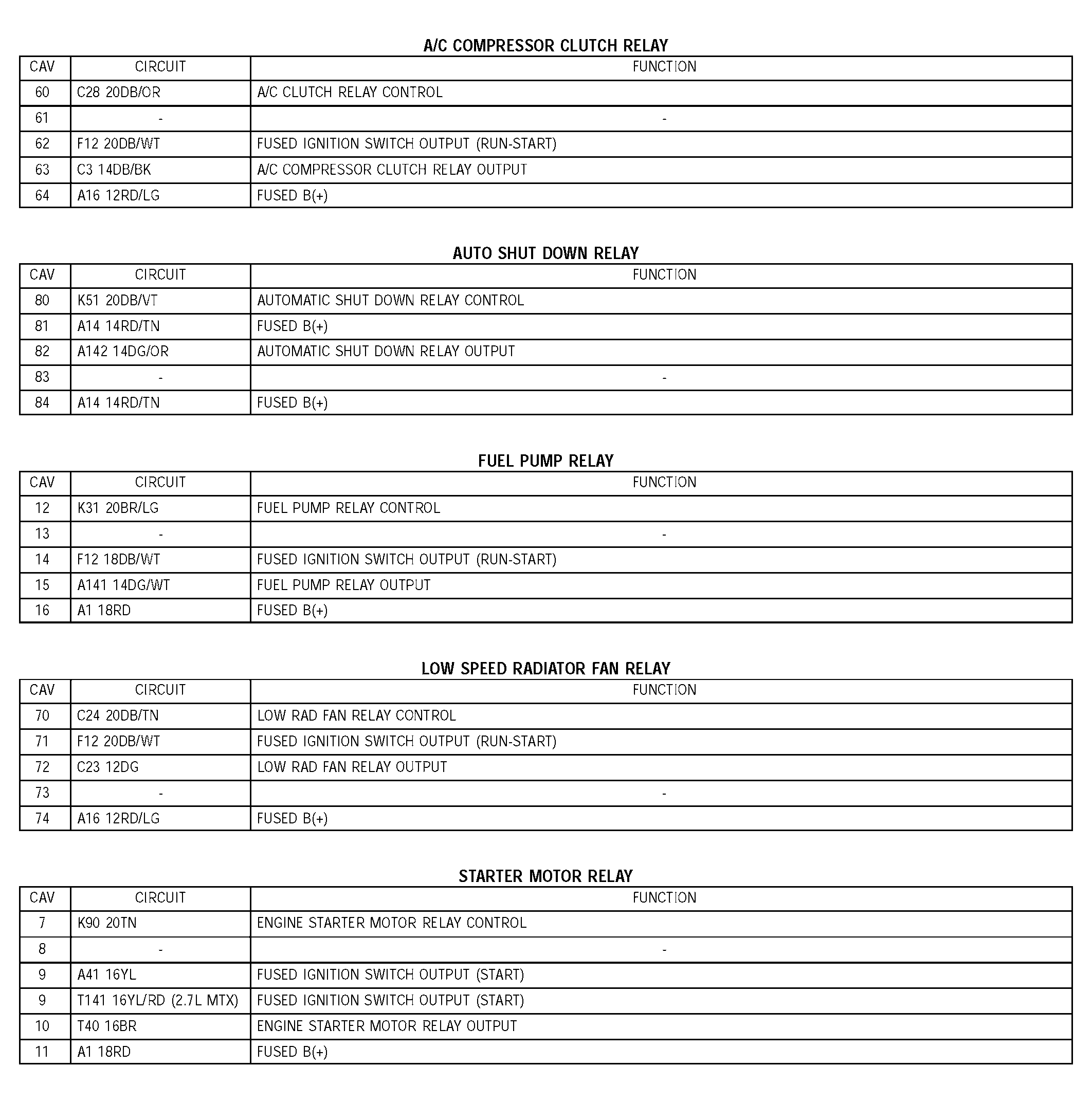

Fig 2: Power Distribution Center Fuse & Relay Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
