Installation - 2.7L

  1. The sensor mounts onto intake manifold plenum (Fig 1). Tighten screws to 4.5 N.m (40 in. lbs.) torque.

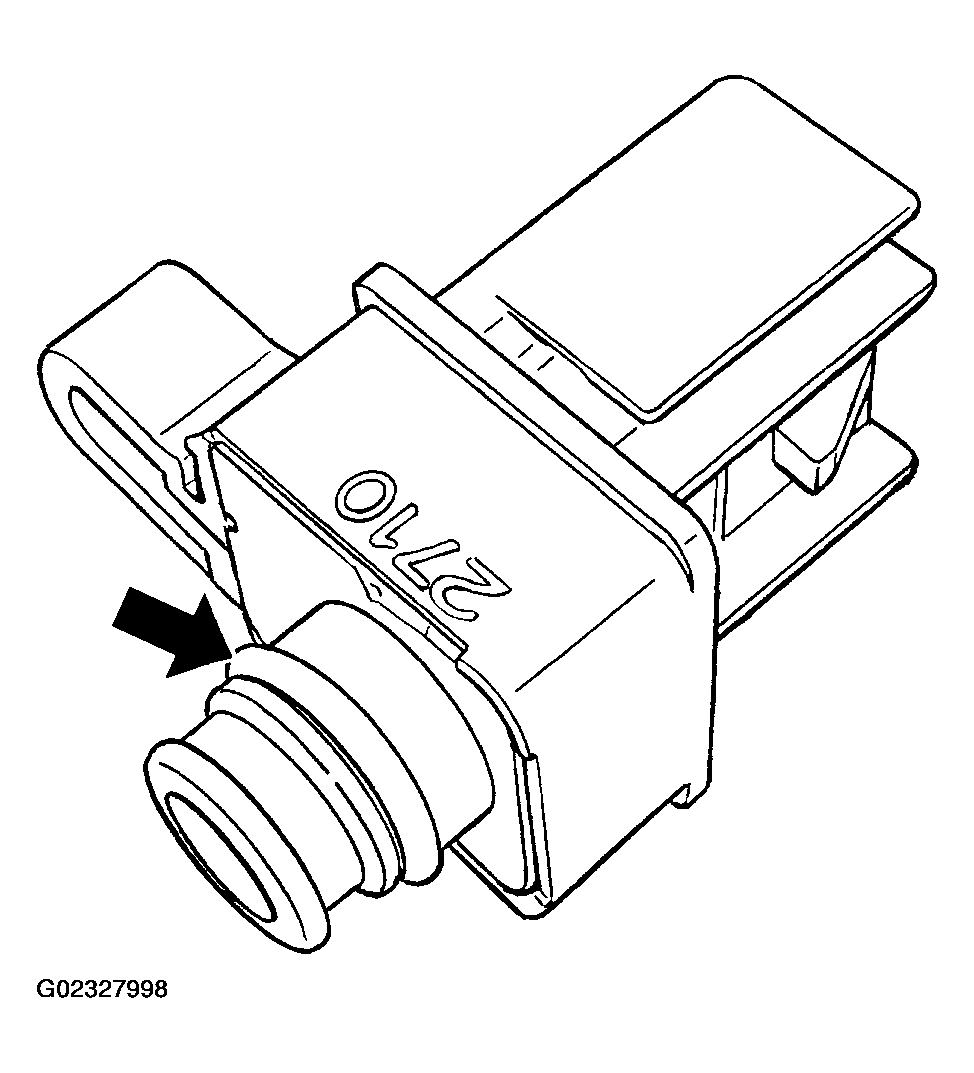

    Fig 1: Map Sensor O-Ring
    G02327998Courtesy of DAIMLERCHRYSLER CORPORATION

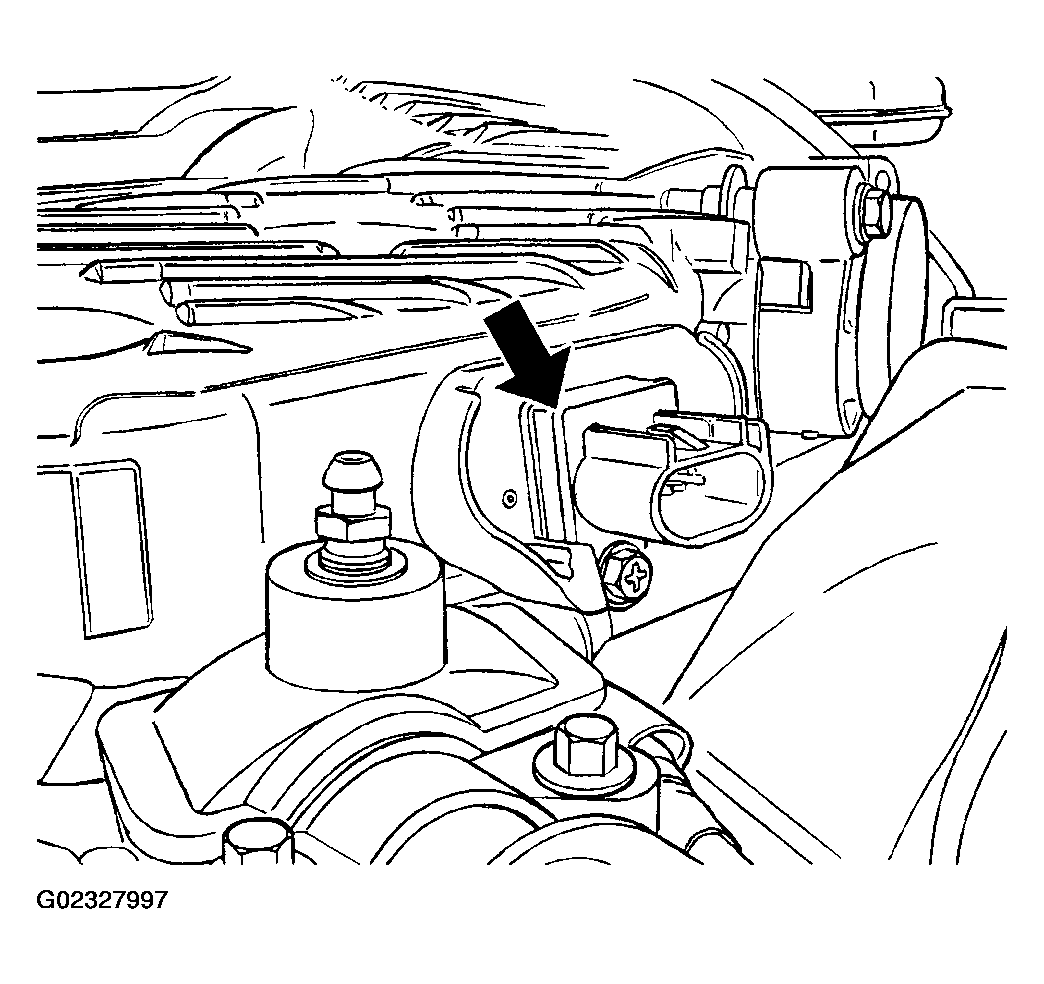

  2. Attach electrical connector to sensor (Figure).
  3. Install the negative battery cable.
