Fuel Pump Module: Description

The fuel pump module contains the fuel pump, fuel reservoir, level sensor, inlet strainer, fuel pressure regulator, and fuel filter (Fig 1).

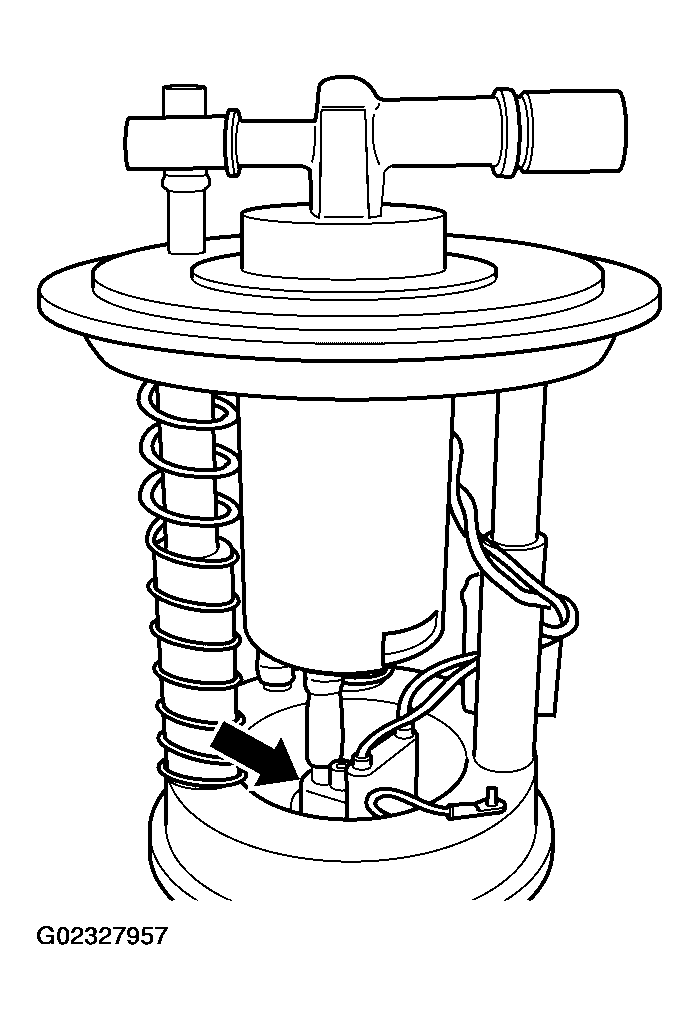

Fig 1: Fuel Pump Location

Courtesy of DAIMLERCHRYSLER CORPORATION
