Removal And Installation: Notes

CAUTION: Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

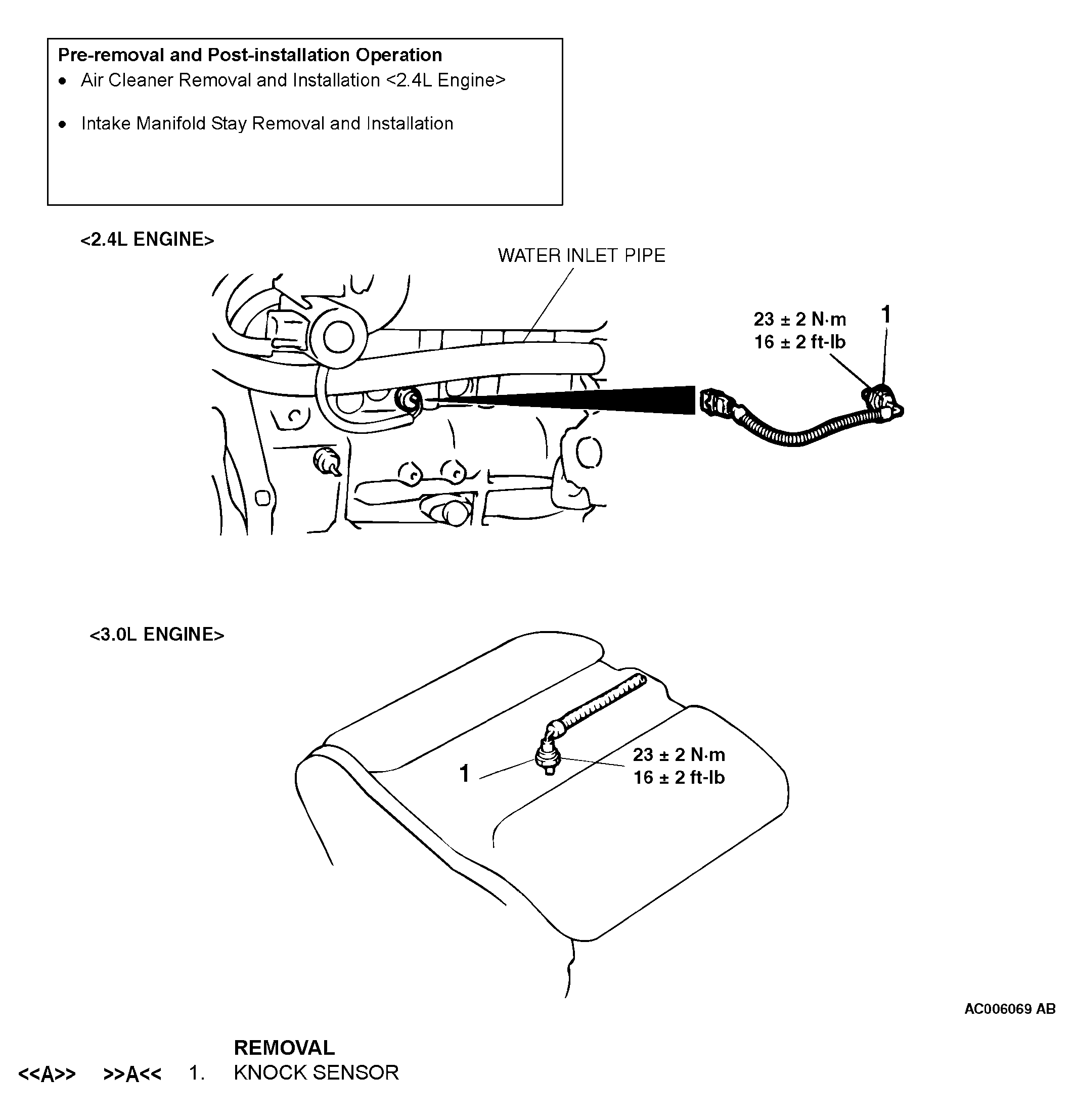

Fig 1: Removing/Installing Knock Sensor
G04537486Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tool:

MD998773: Knock Sensor Wrench
