Disassembly And Assembly: Notes

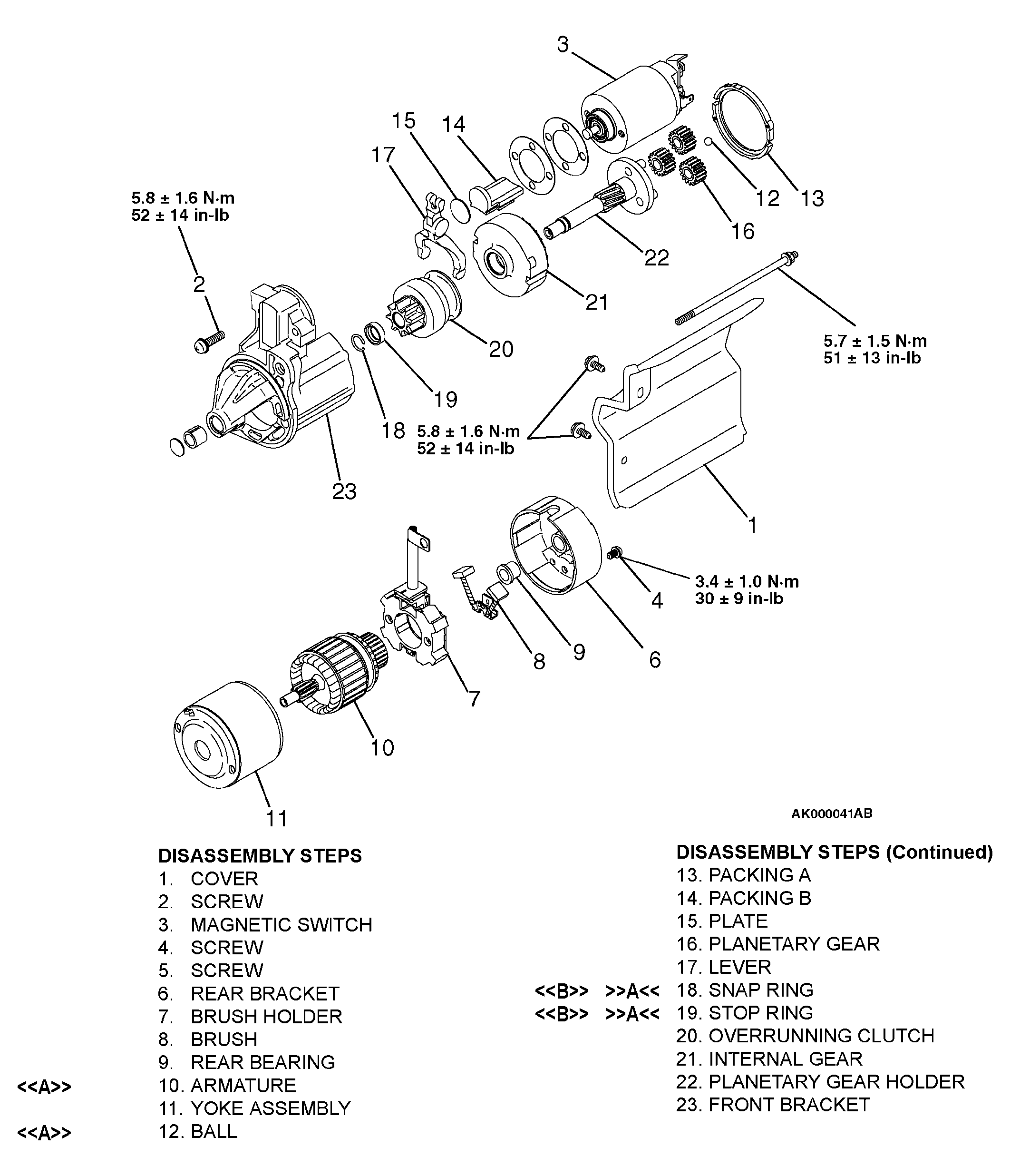

Fig 1: Exploded View Of Starter Motor Assembly

G04537400

Courtesy of DAIMLERCHRYSLER CORPORATION
