Home >> Chrysler >> 2005 >> Sebring Base, 2D Coupe >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - Coupe >> Generator Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

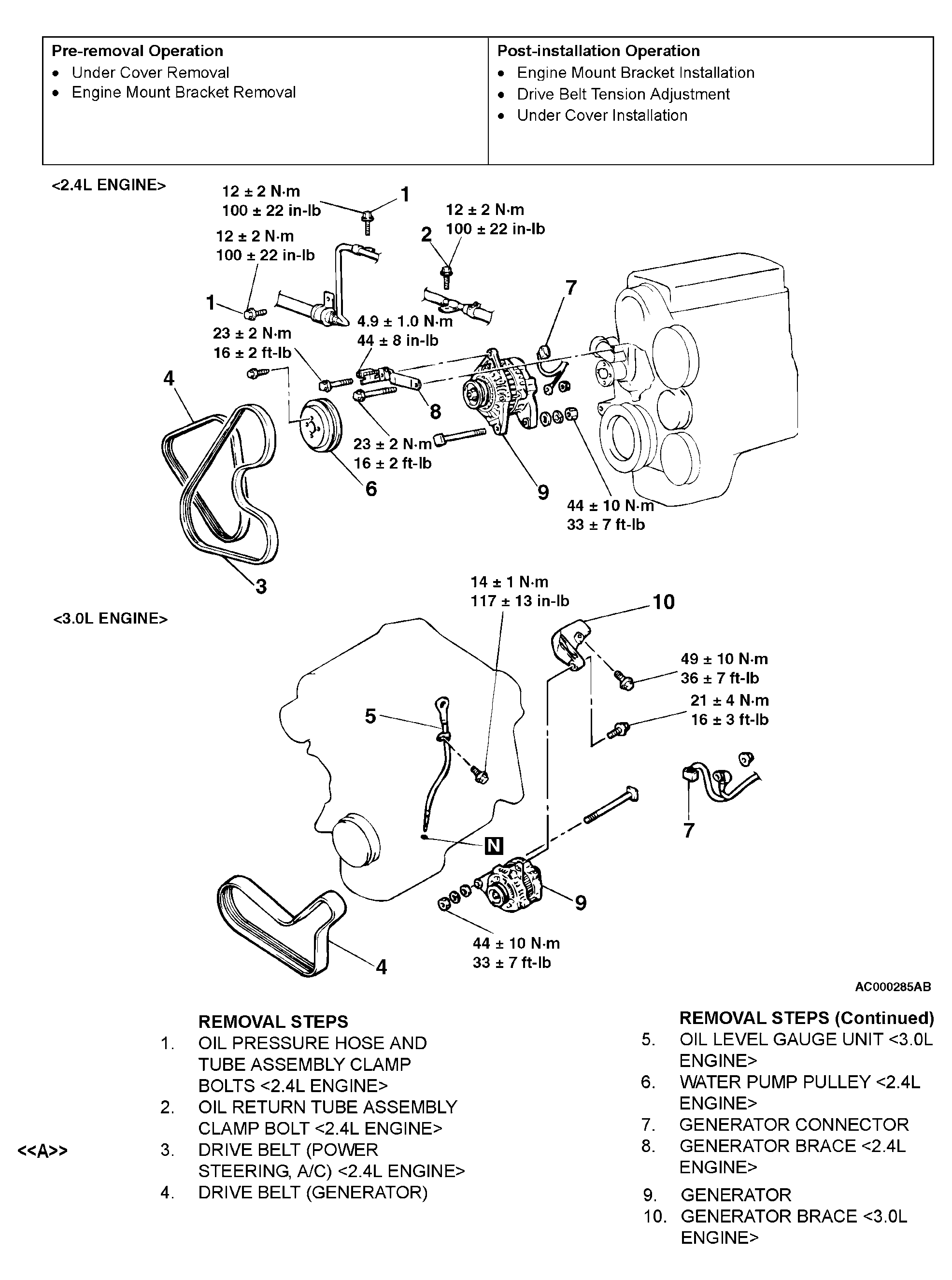

Fig 1: Removing/Installing Generator Assembly And Torque Specifications

G04537427

Courtesy of DAIMLERCHRYSLER CORPORATION
