Stator Check

  1. Check the continuity between the coil lead. If there is no continuity, replace the stator.

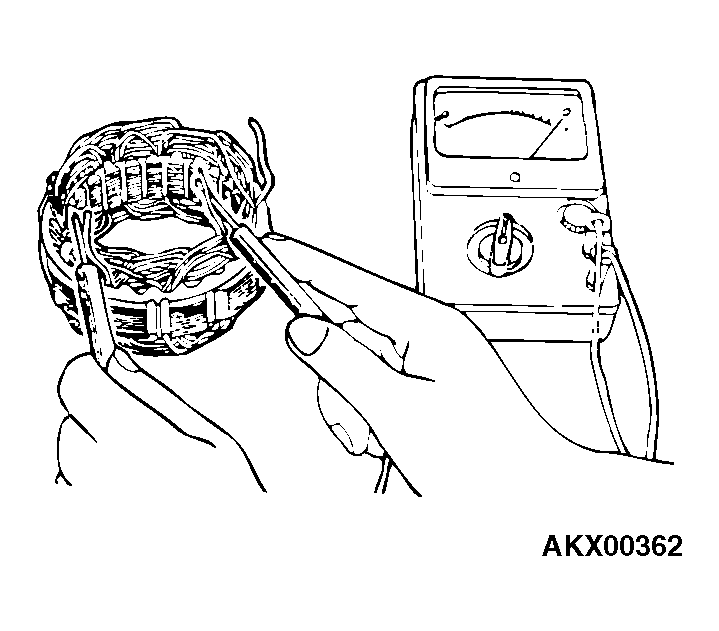

    Fig 1: Checking Continuity Between Coil Lead
    G04537437Courtesy of DAIMLERCHRYSLER CORPORATION
  2. Check the continuity between the coil and the core. If there is continuity, replace the stator.

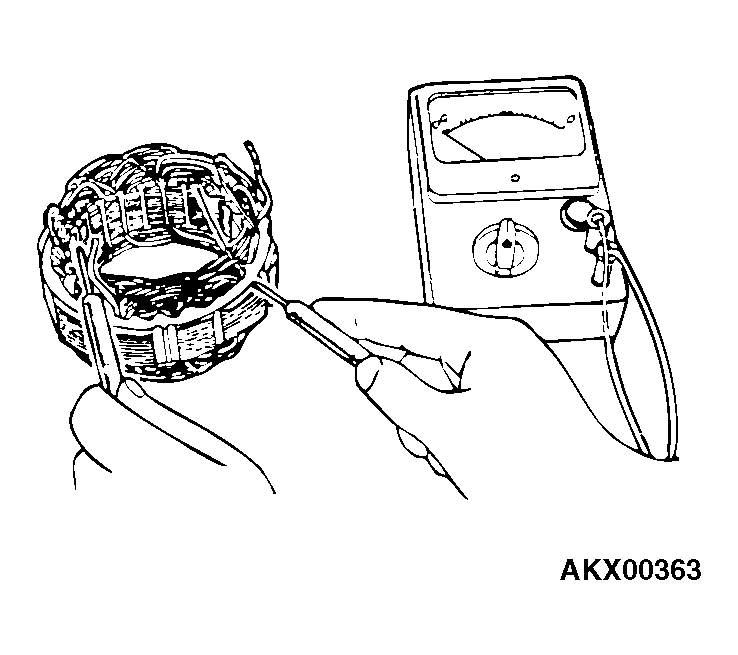

    Fig 2: Checking Continuity Between Coil And Core
    G04537438Courtesy of DAIMLERCHRYSLER CORPORATION
