Power Window Relay Check

TESTER CONNECTION & SPECIFIED CONDITION

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
Not applied 4 - 5 Open circuit
  • Connect terminal No. 1 to the positive battery terminal.
  • Connect terminal No. 3 to the negative battery terminal.
 Less than 2 ohms

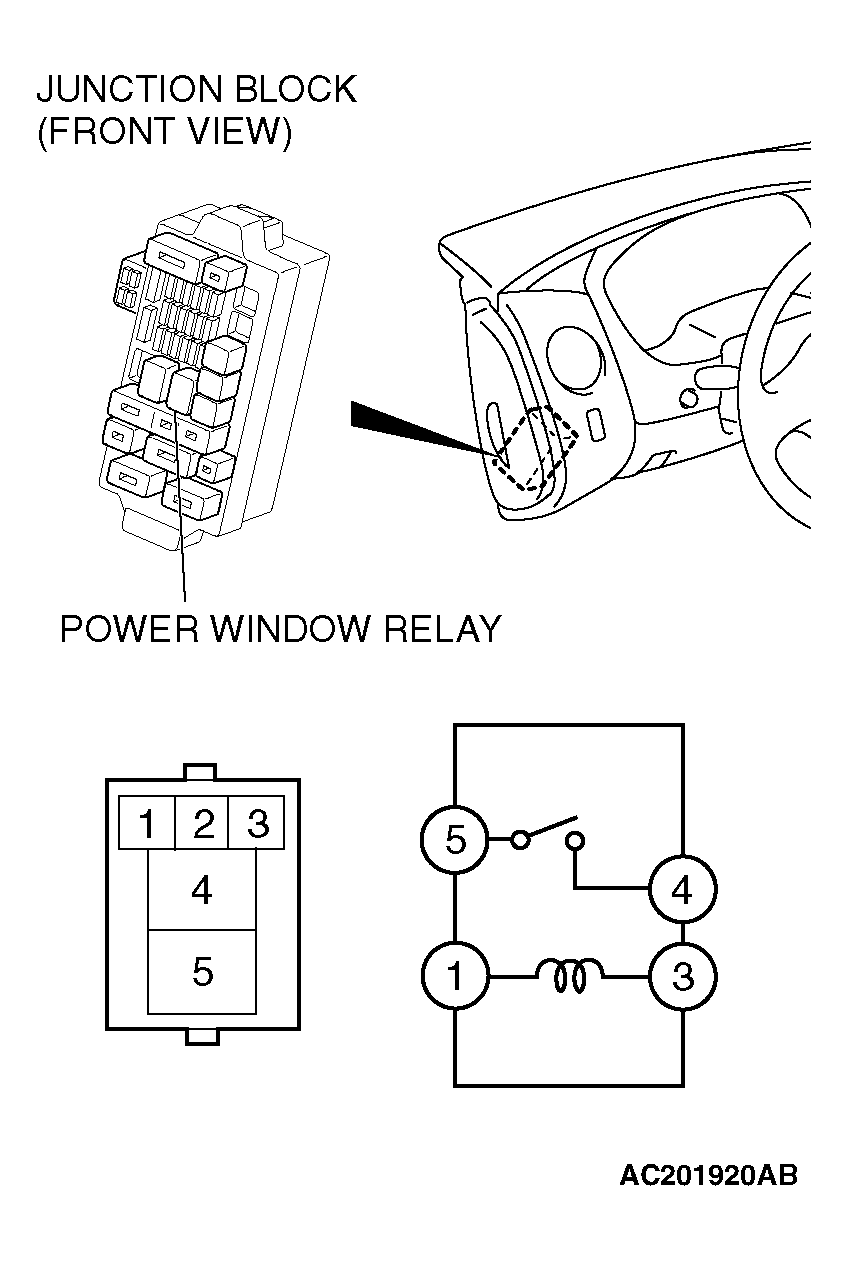

Fig 1: Checking Power Window Relay
G04538902Courtesy of DAIMLERCHRYSLER CORPORATION
