Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING: Before removing the steering gear box, refer to SERVICE PRECAUTIONS and Air Bag Module and Clock Spring P.8M-140. Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

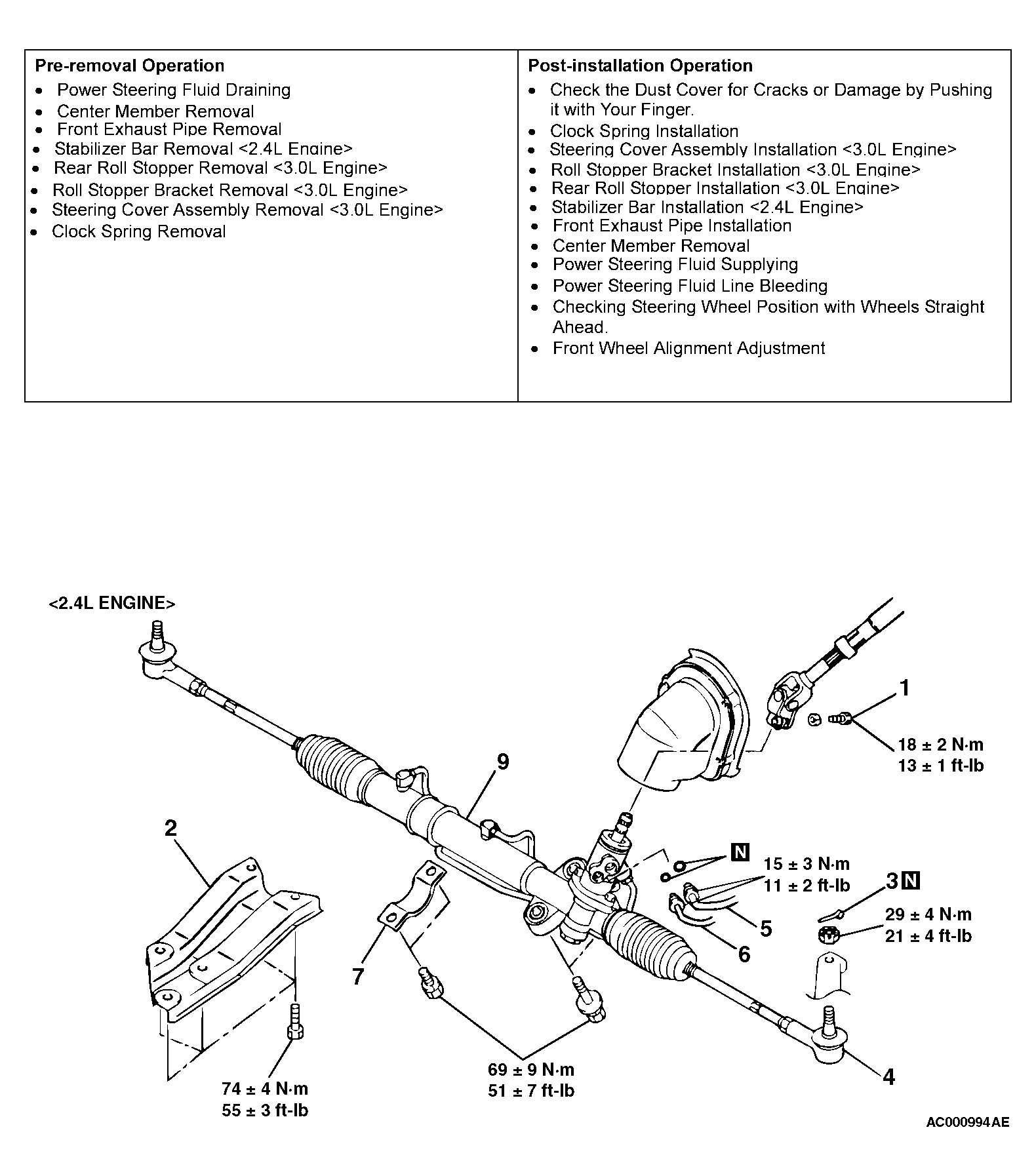

Fig 1: Removing/Installing Power Steering Gear Box Assembly (2.4L Engine)

Courtesy of DAIMLERCHRYSLER CORPORATION

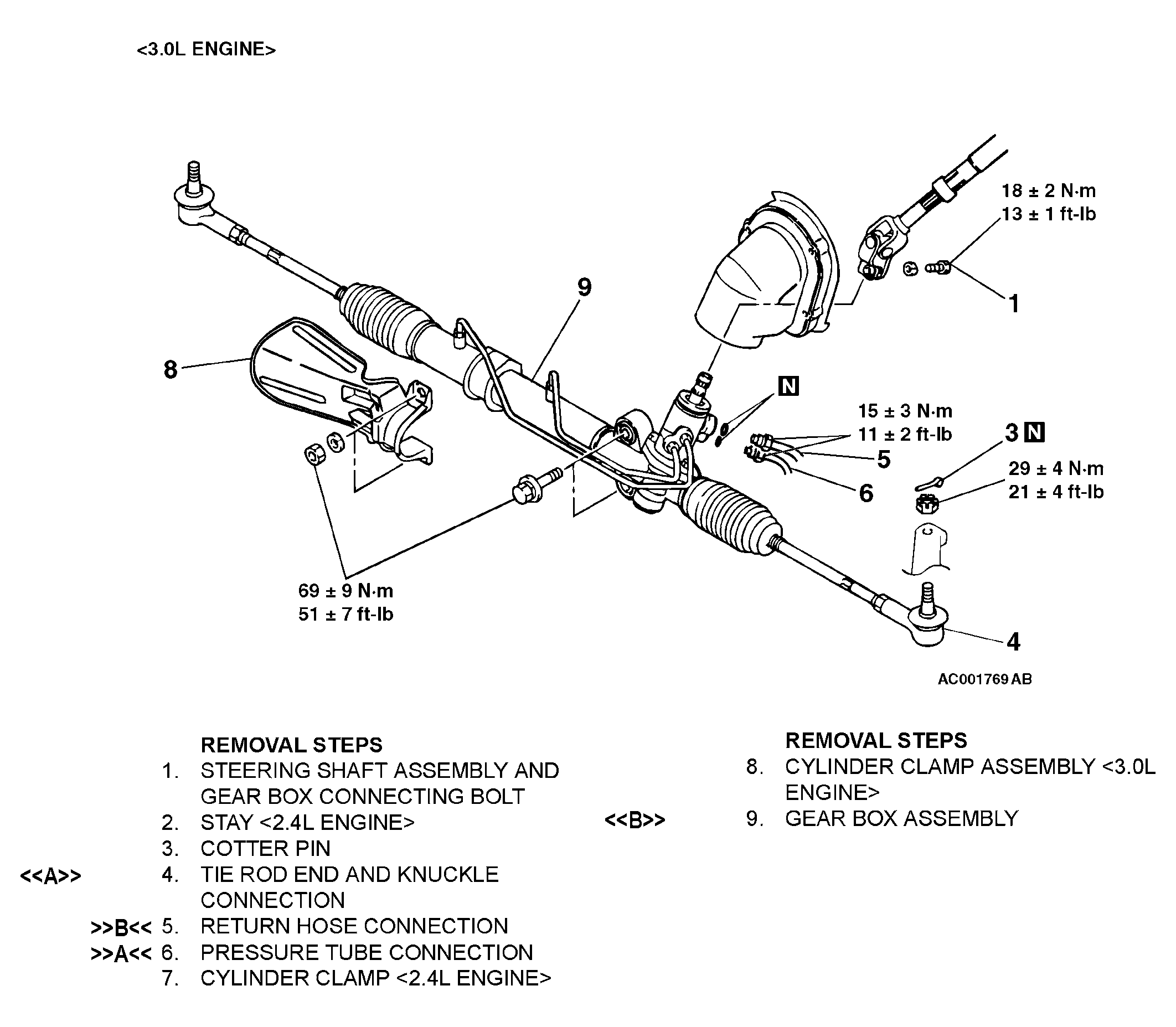

Fig 2: Removing/Installing Power Steering Gear Box Assembly (3.0L Engine)

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990228 or MB991006: Preload Socket
MB991897: Ball Joint Remover
