Fluid Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the front wheels.
  2. Disconnect the return hose connection.
  3. Connect a vinyl hose to the return hose, and drain the fluid into a container.
    CAUTION: Be careful not to position the high-tension cable near the fuel rail.
  4. Disconnect the high-tension cable.
  5. While operating the starting motor intermittently, turn the steering wheel all the way to the left and right several times to drain all of the fluid.

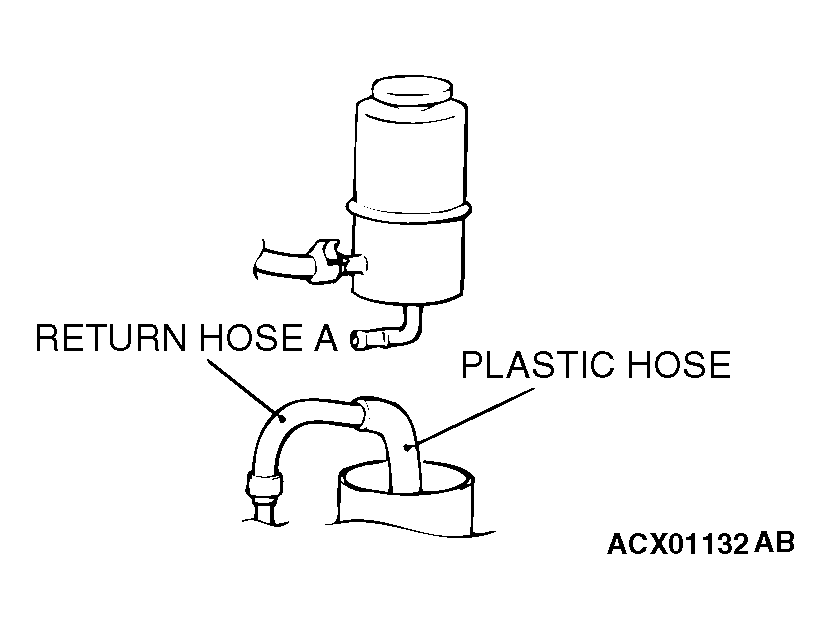

    Fig 1: Draining Fluid Into Container
    G04539225Courtesy of DAIMLERCHRYSLER CORPORATION
  6. Connect the return hoses securely, and then secure with the clip.
  7. Fill the oil reservoir with DIAMOND ATF to the lower position of the filler, and then bleed the air.
