Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

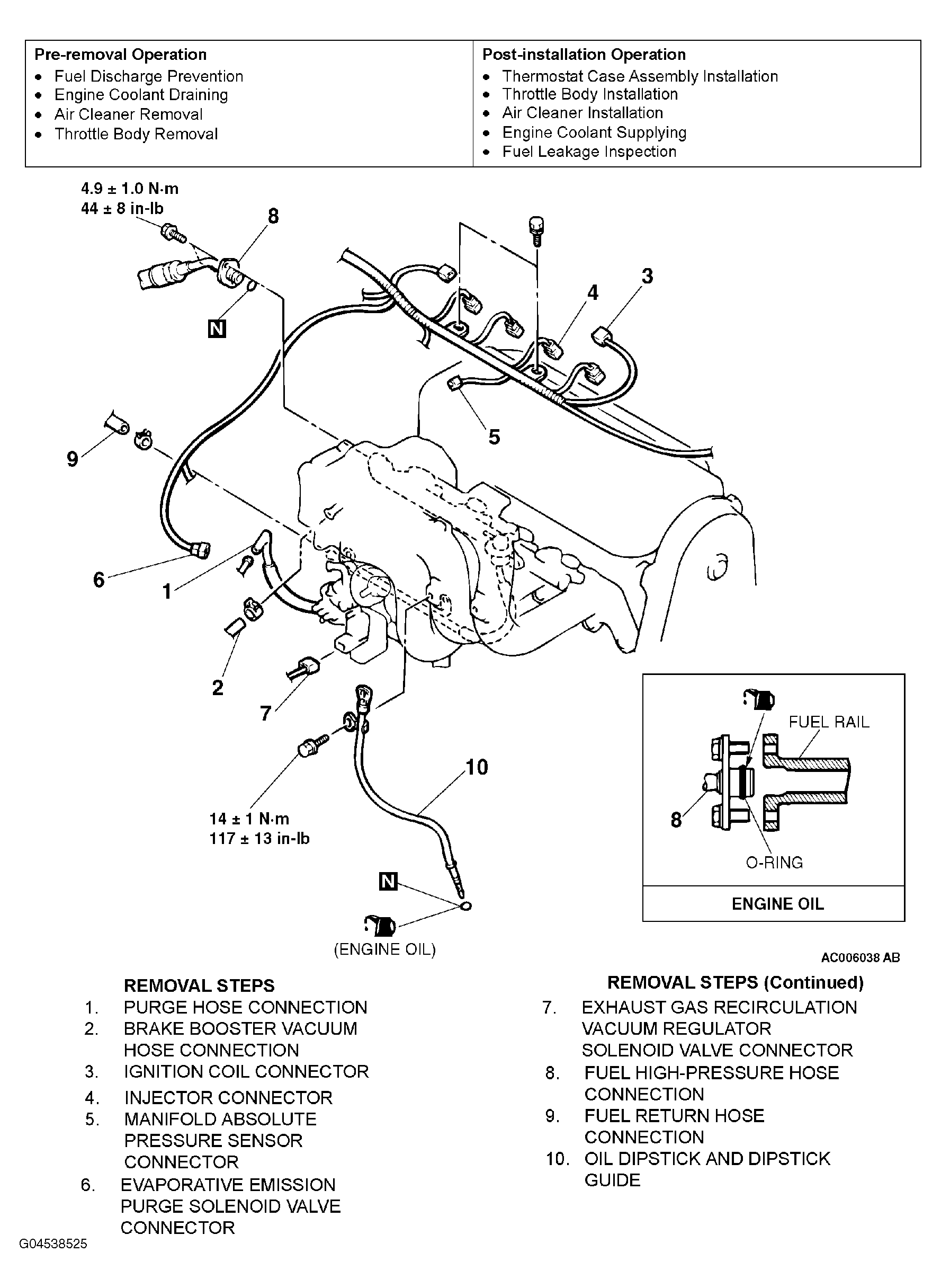

Fig 1: Removing/Installing Intake Manifold (2.4L Engine) (1 Of 2)
G04538525Courtesy of DAIMLERCHRYSLER CORPORATION

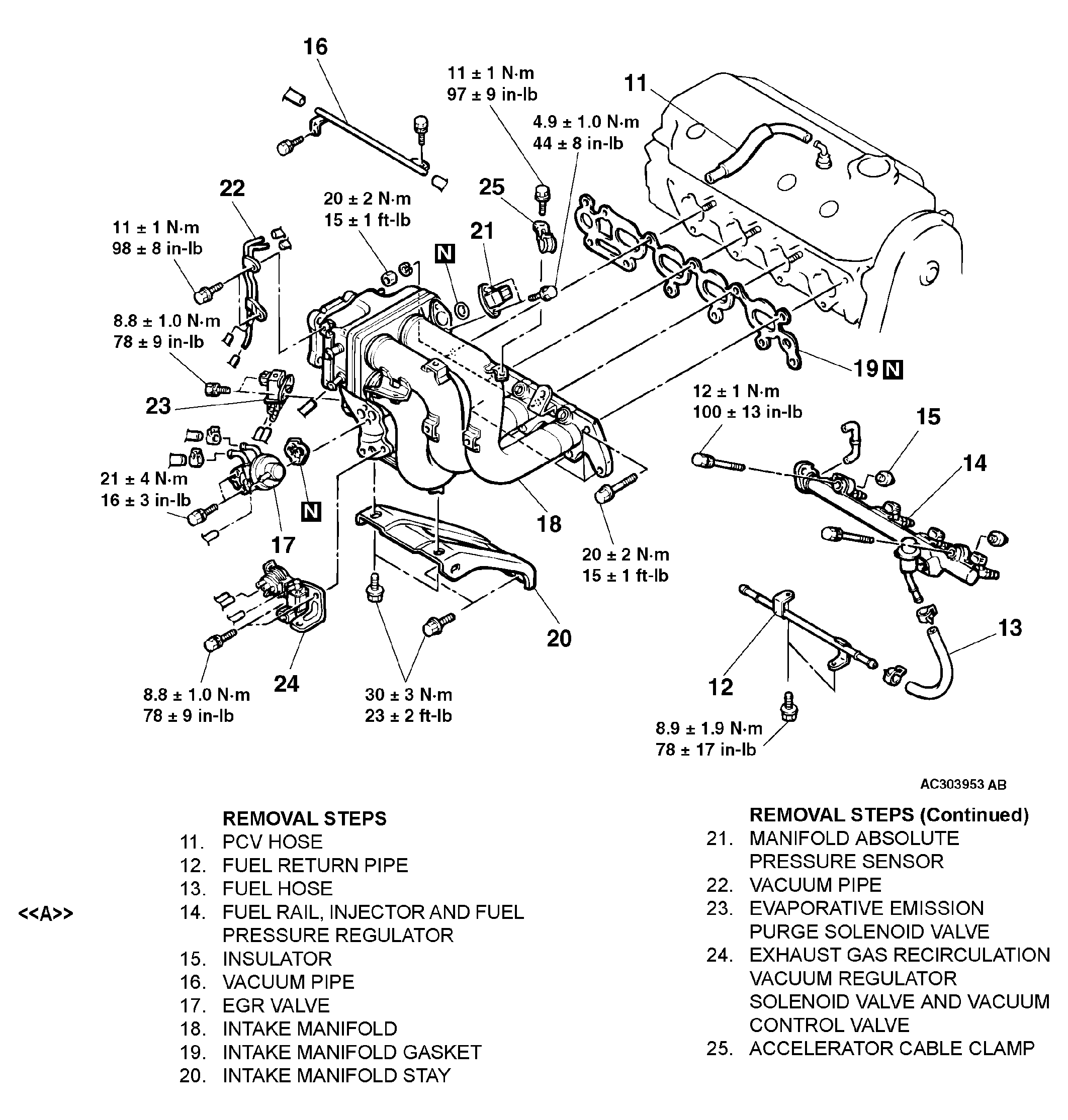

Fig 2: Removing/Installing Intake Manifold (2.4L Engine) (2 Of 2)
G04538526Courtesy of DAIMLERCHRYSLER CORPORATION
