Ignition Switch Continuity Check
WARNING: This page is about a different variant/trim than selected.

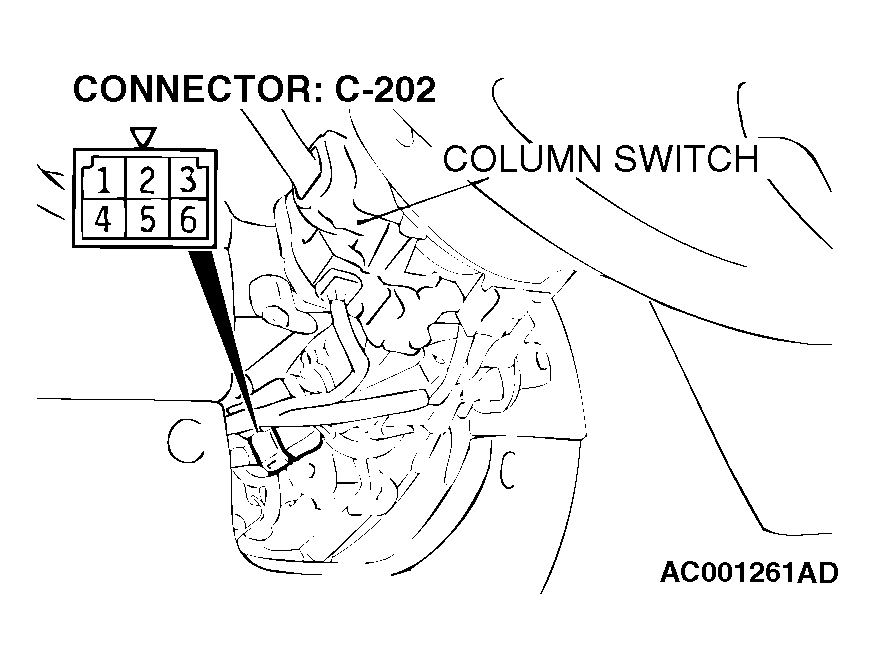

Disconnect ignition switch connector C-202 without removing the ignition switch and steering lock cylinder. Then check the continuity.
IGNITION SWITCH CONTINUITY CHECK
| SWITCH POSITION | TESTER CONNECTION | SPECIFIED CONDITION |
|---|---|---|
| "LOCK" (OFF) | 1 - 2 1 - 3 1 - 4 1 - 5 1 - 6 |
Open circuit |
| "ACC" | 1 - 6 | Less than 2 ohms |
| "ON" | 1 - 2 - 4 - 6 | Less than 2 ohms |
| "START" | 1 - 2 - 3 - 5 | Less than 2 ohms |
