Special Tools
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS
| TOOL | TOOL NUMBER AND NAME | REPLACED BY MILLER TOOL NUMBER | APPLICATION |
|---|---|---|---|

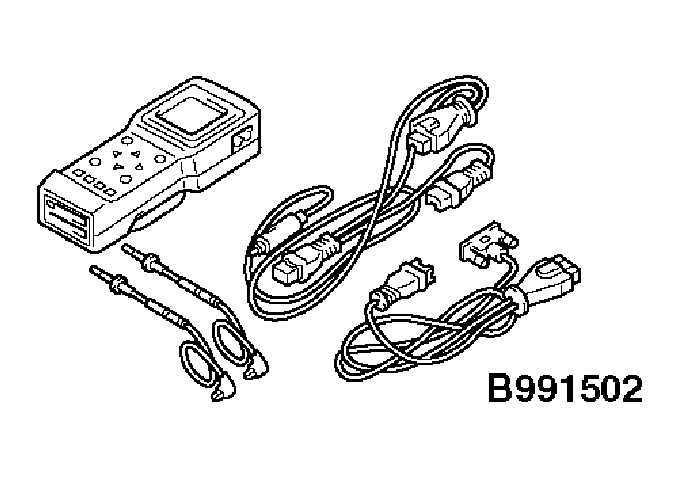

| MB991502 Scan tool (MUT-II) | DRB-III Used with CH8425 | Diagnostic trouble code check. | |

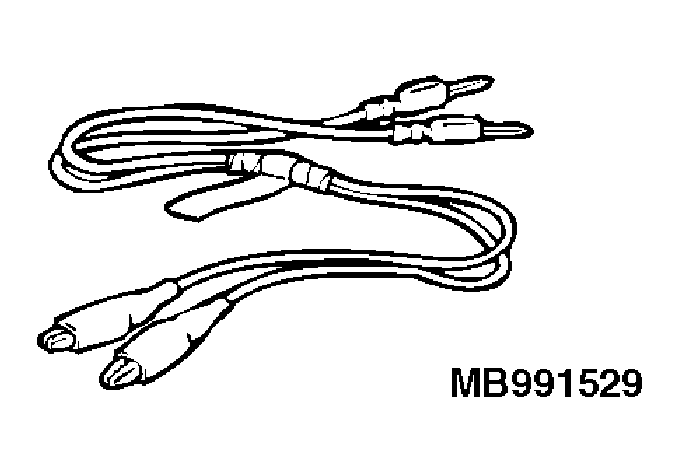

| MB991529 Diagnostic trouble code check harness | N/A | ||

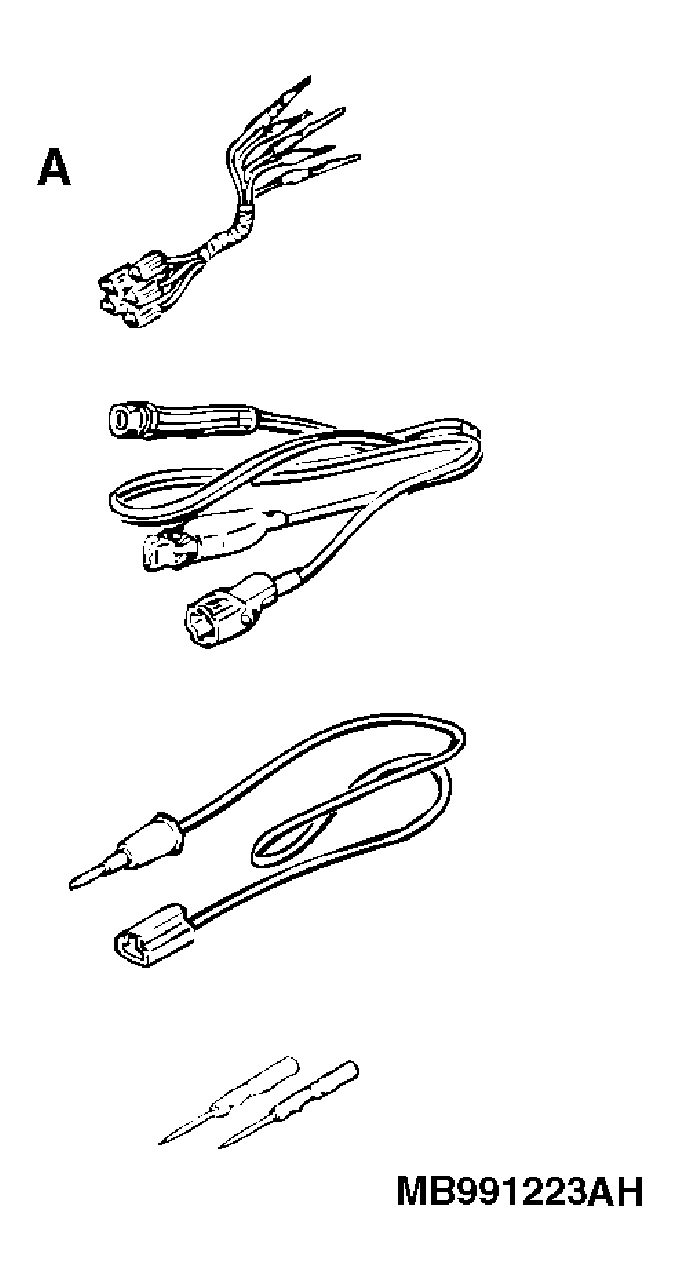

| MB991223 Harness set MB991219 A: Connector pin contact pressure inspection |
N/A | Checking the continuity and measuring the voltage at the harness connector |
