Brush Check

WARNING: This page is about a different variant/trim than selected.

Replace the brush if the brush protrusion length shown in the illustration is below the minimum limit value.
Minimum limit: 2 mm (0.08 inch)

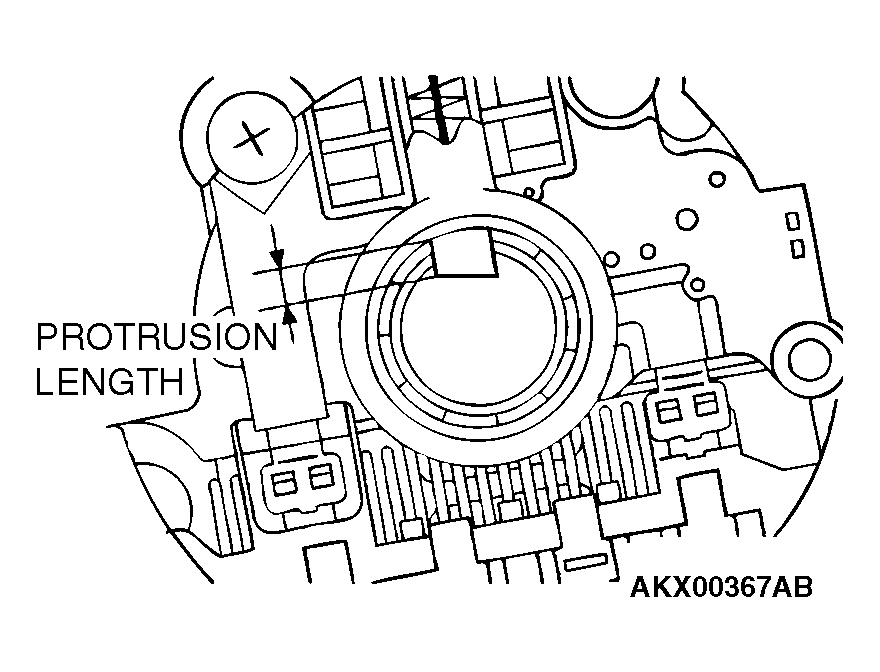

Fig 1: Identifying Brush Protrusion Length
Courtesy of DAIMLERCHRYSLER CORPORATION
The brush can be removed by unsoldering the brush lead wire.
When installing a new brush, push the brush in to the brush holder, and solder the lead wire.

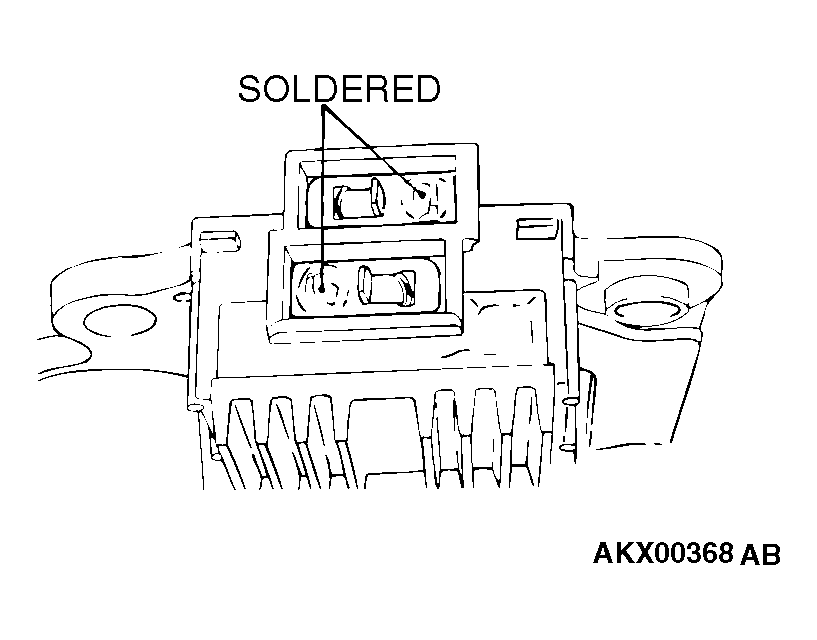

Fig 2: Locating Solder At Brush Lead Wire
