Fan Controller Check

WARNING: This page is about a different variant/trim than selected.
  1. Remove condenser fan motor connector.
  2. Start the engine and run it at idle.
  3. Turn the A/C switch to ON and maintain the coolant temperature at 80°C (176°F) or less.
  4. When measuring the voltage between the fan control module-side connector terminals, check that the value changes repeatedly as indicated by (1) - (3) below.
    1. 0 V
    2. 8.2 +/- 2.6 V
    3. Battery positive voltage +/- 2.6 V
  5. If the voltage does not repeatedly change as indicated, replace the radiator fan motor and the fan control module assembly. (Refer to RADIATOR  ).

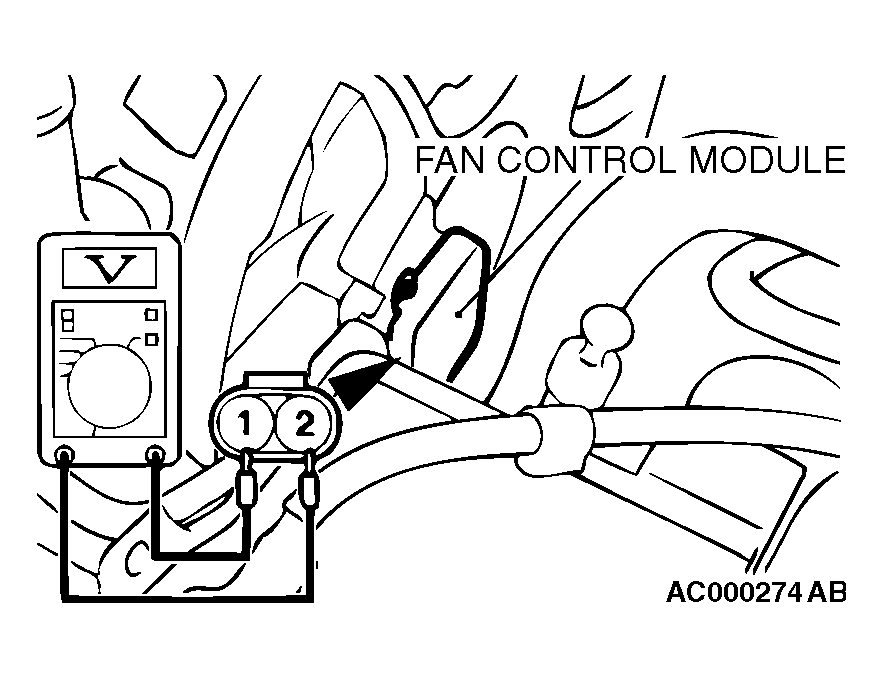

    Fig 1: Measuring Voltage Between Fan Control Module-Side Connector Terminals
    G04537364Courtesy of DAIMLERCHRYSLER CORPORATION
