Fan Control Relay Continuity Check
WARNING: This page is about a different variant/trim than selected.

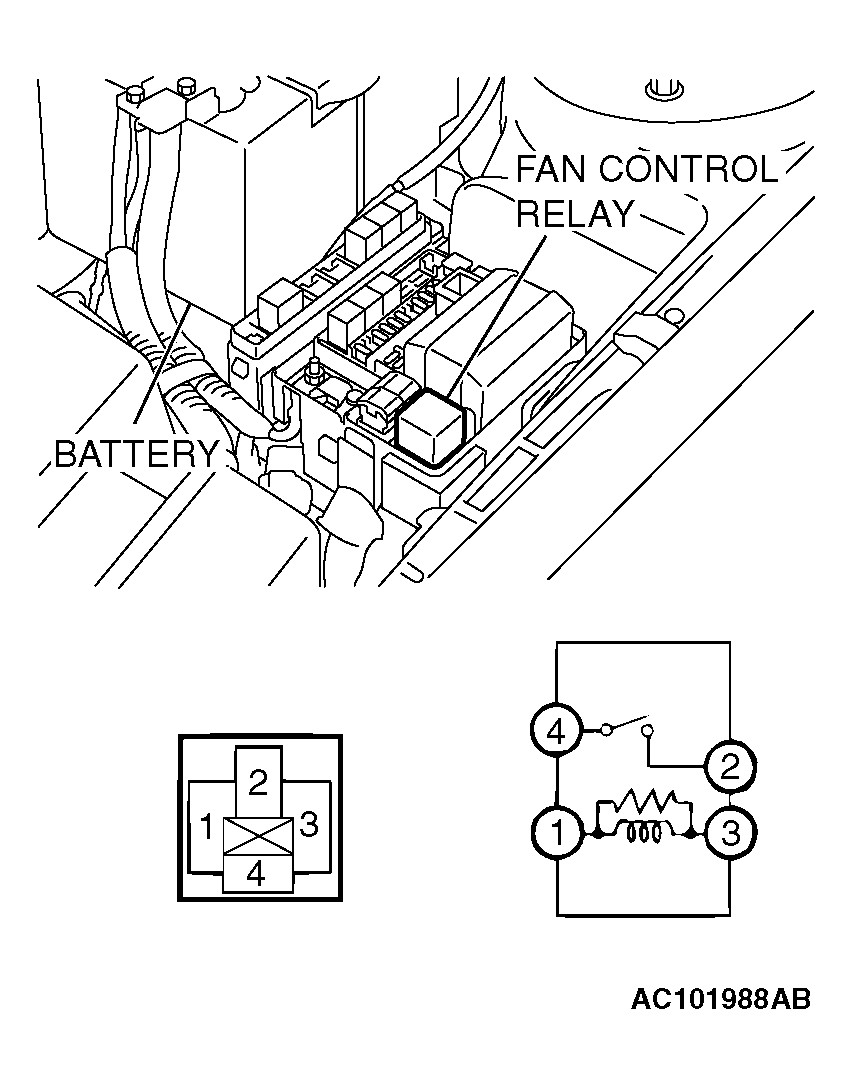

FAN CONTROL RELAY CONTINUITY
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
4 - 2 |
Open circuit |
| Connect terminal No. 3 and battery (-) terminal. Connect terminal No. 1 and battery (+) terminal. |
4 - 2 |
Less than 2 ohms |
Courtesy of DAIMLERCHRYSLER CORPORATION
