Special Tools

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS CHART

TOOL TOOL NUMBER AND NAME REPLACED BY MILLER TOOL NUMBER APPLICATION

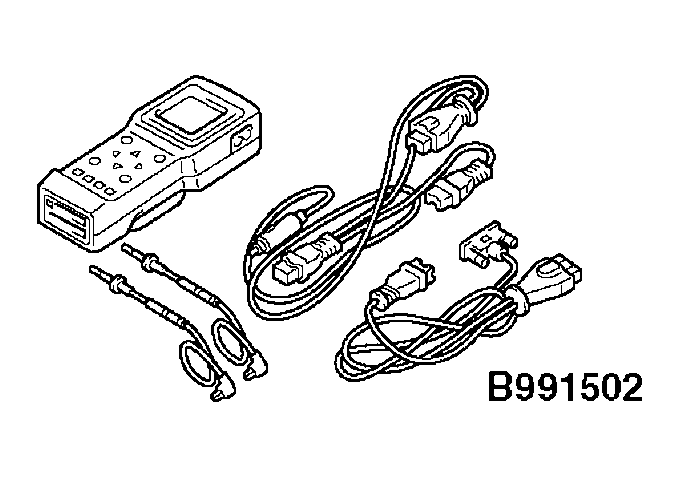

G04537548Courtesy of DAIMLERCHRYSLER CORPORATION
 Scan tool (MUT-II) DRB-III Used with CH8425 Reading MFI system diagnostic trouble code

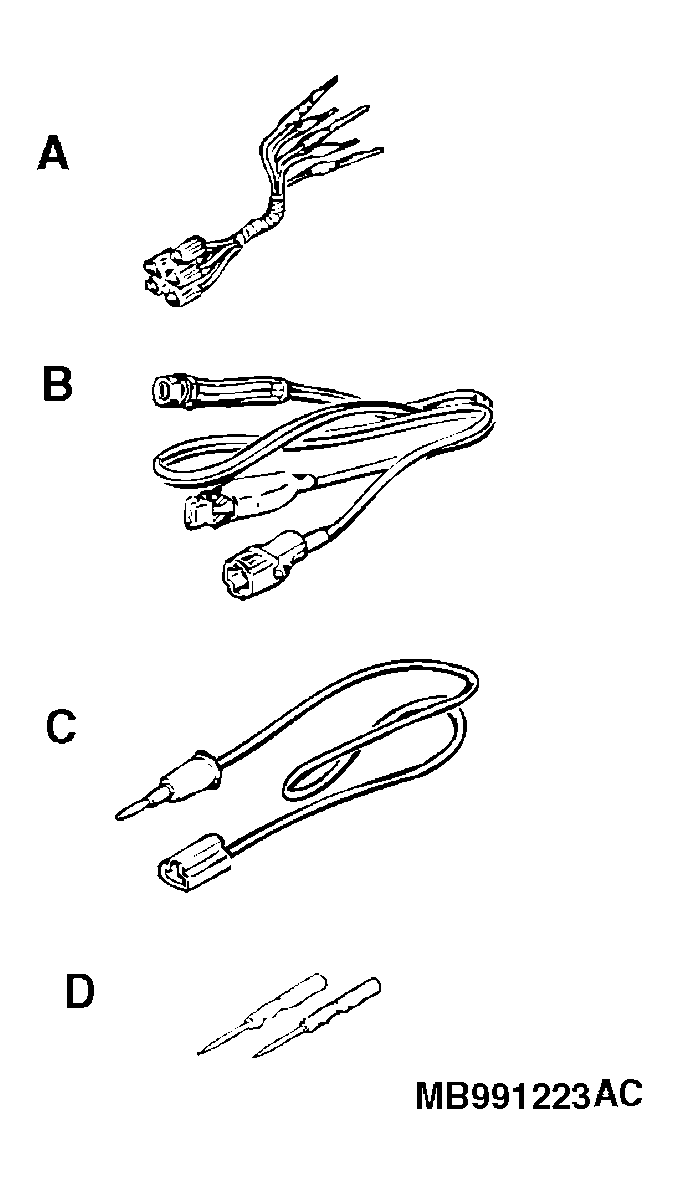

G04537549Courtesy of DAIMLERCHRYSLER CORPORATION
 MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222
Harness set
A: Test harness
B: LED harness
C: LED harness adapter
D: Probe		 N/A Making voltage and resistance measurements during troubleshooting
  1. Connect pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
