Fuel Tank Temperature Sensor
WARNING: This page is about a different variant/trim than selected.
CAUTION:
After finishing this test, wipe the unit dry and install it in the fuel tank.

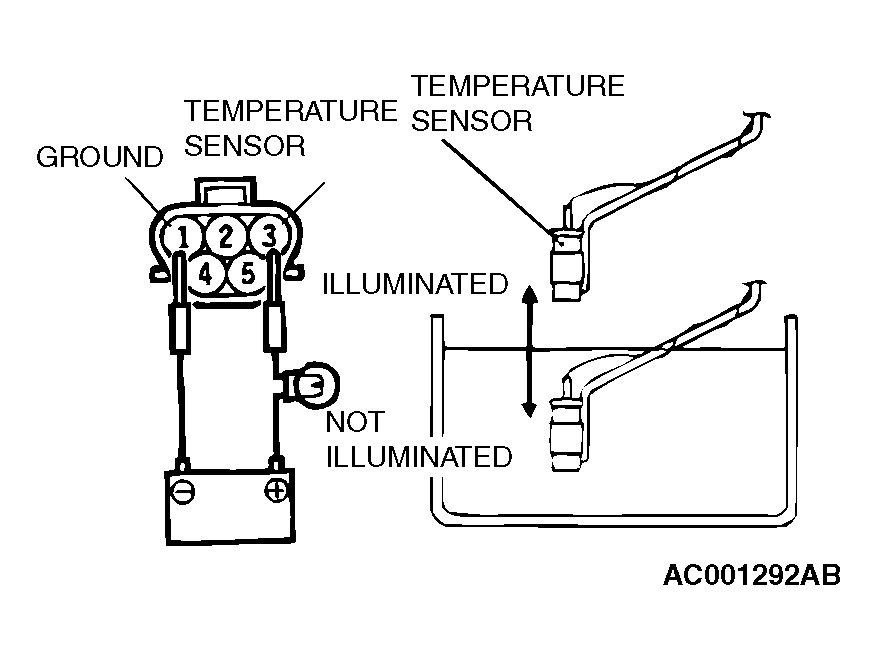

- Connect the fuel level sensor (with temperature sensor) to the battery via a test light (12V - 3.4W). Immerse in water.
- Condition is good if the light goes off when the fuel tank temperature sensor is immersed in water and comes on when it is taken out of water.
- If all check result are correct, the fuel level sensor is OK. If either check result is not correct, replace the fuel level sensor.
