Fuel Level Sensor Float Height

WARNING: This page is about a different variant/trim than selected.
  1. Move the float and measure height A at point

    Standard value:

    • A: 180.3 mm (7.10 inches)
    • B: 18.8 mm (0.74 inch)

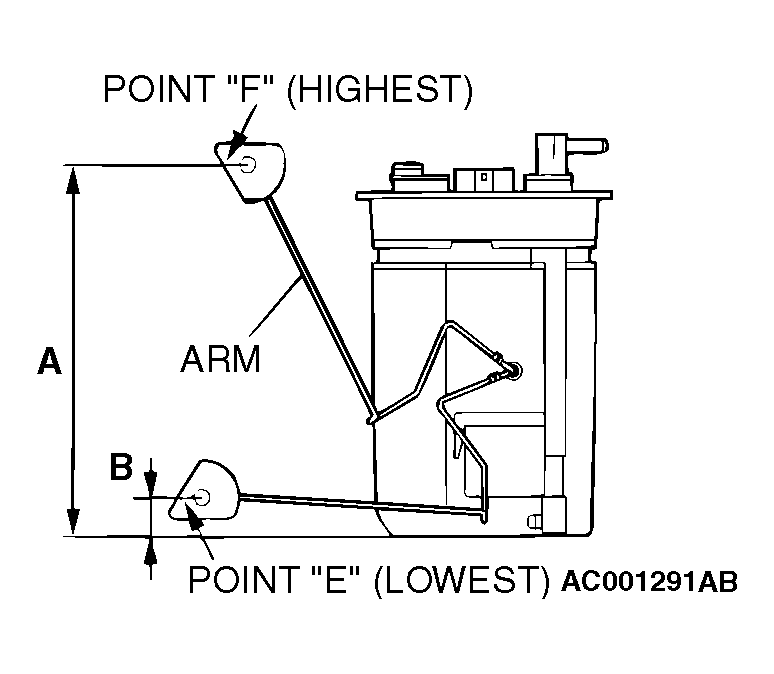

      Fig 1: Identifying Fuel Level Sensor Float Height
      G04537554Courtesy of DAIMLERCHRYSLER CORPORATION
  2. Adjust the float arm to the standard value, then go to Thermistor check.
