Left Front Position Lamp (Export) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

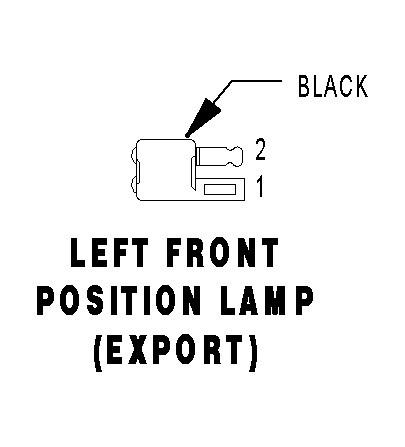

LEFT FRONT POSITION LAMP (EXPORT) - BLACK 2 WAY

GCTJ580284Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 L7 18WT/YL HEADLAMP SWITCH OUTPUT
2 Z950 20BK GROUND
