Inlet Air Temperature Sensor: Description

The IAT Sensor is a Negative Temperature Coefficient (NTC) Sensor that provides information to the PCM regarding the temperature of the air entering the intake manifold (Fig 1).

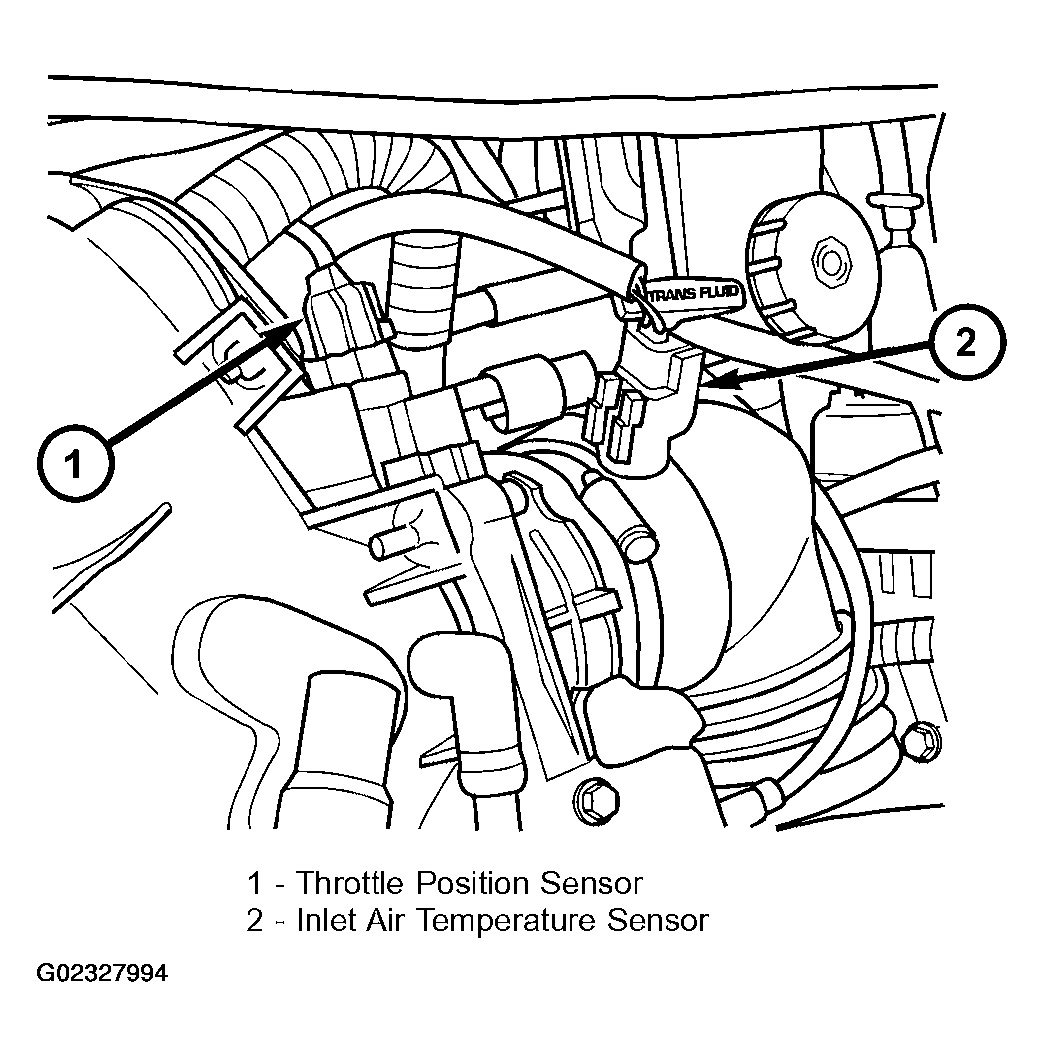

Fig 1: TPS And Inlet Air Temp. Sensor 2.7L

Courtesy of DAIMLERCHRYSLER CORPORATION
