Junction Block

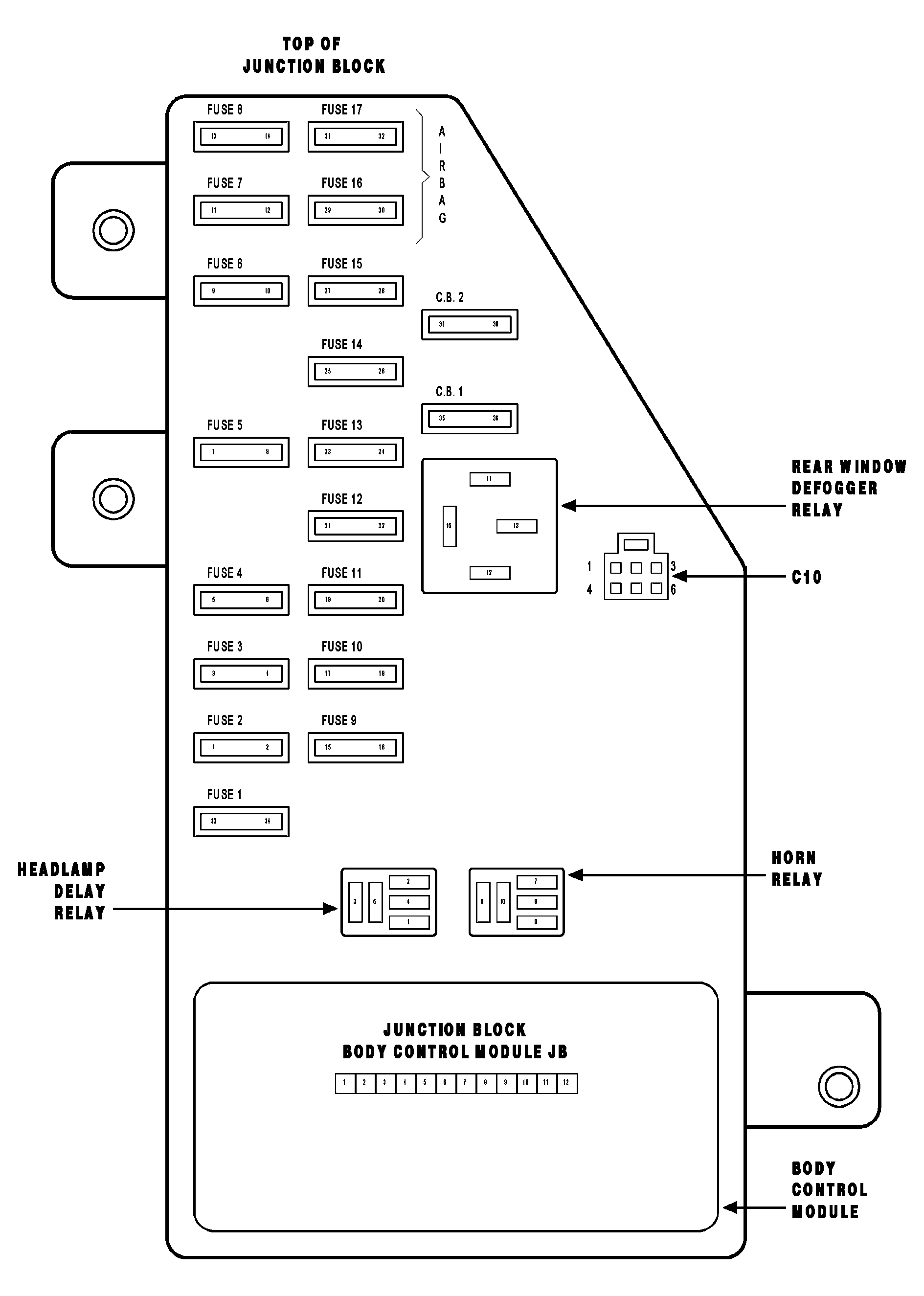

Fig 1: Identifying Junction Block

G04536567

Courtesy of DAIMLERCHRYSLER CORP.

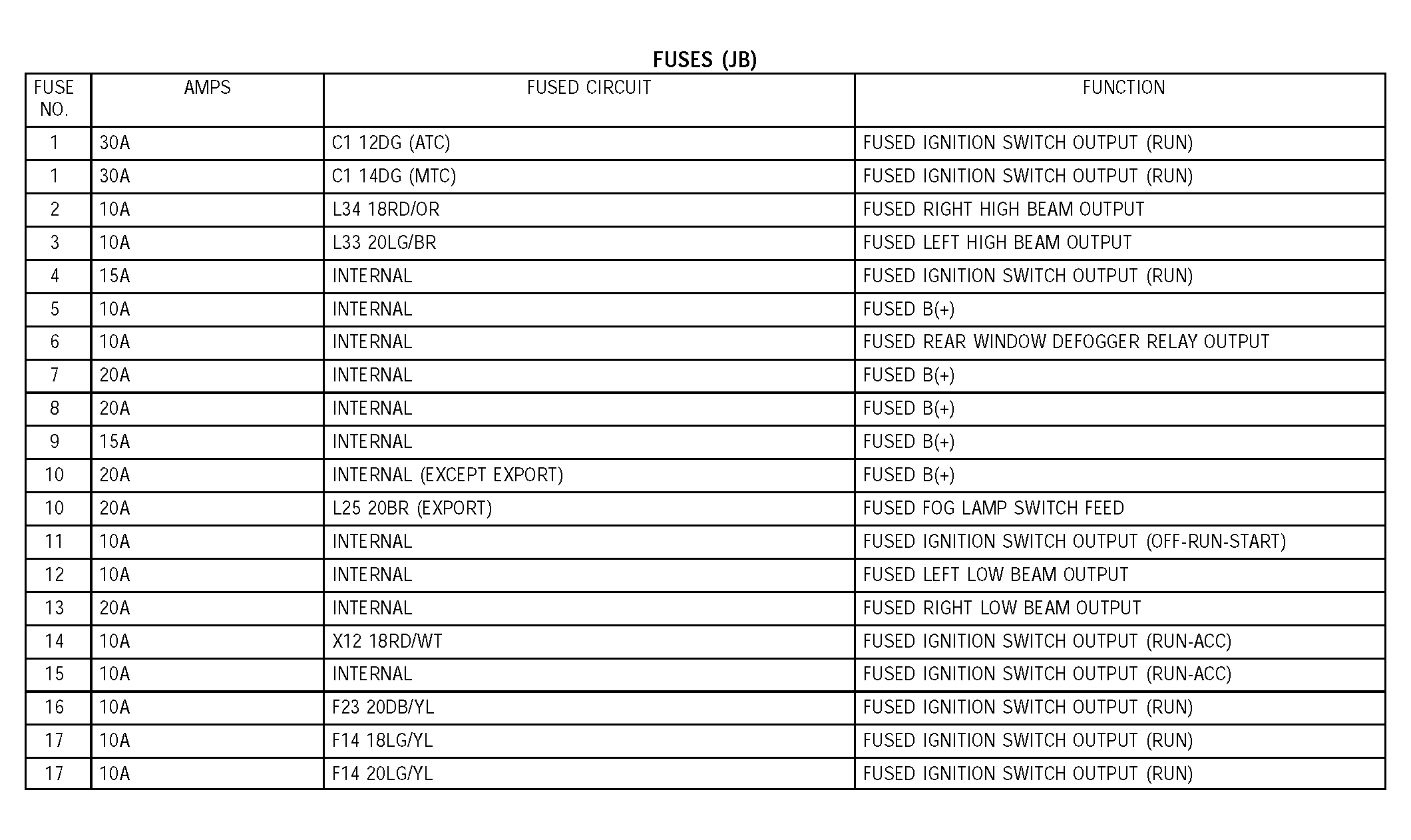

Fig 2: Junction Block Chart

G04536568

Courtesy of DAIMLERCHRYSLER CORP.
