Wheel Speed Sensor Connectors: Front

LEFT FRONT

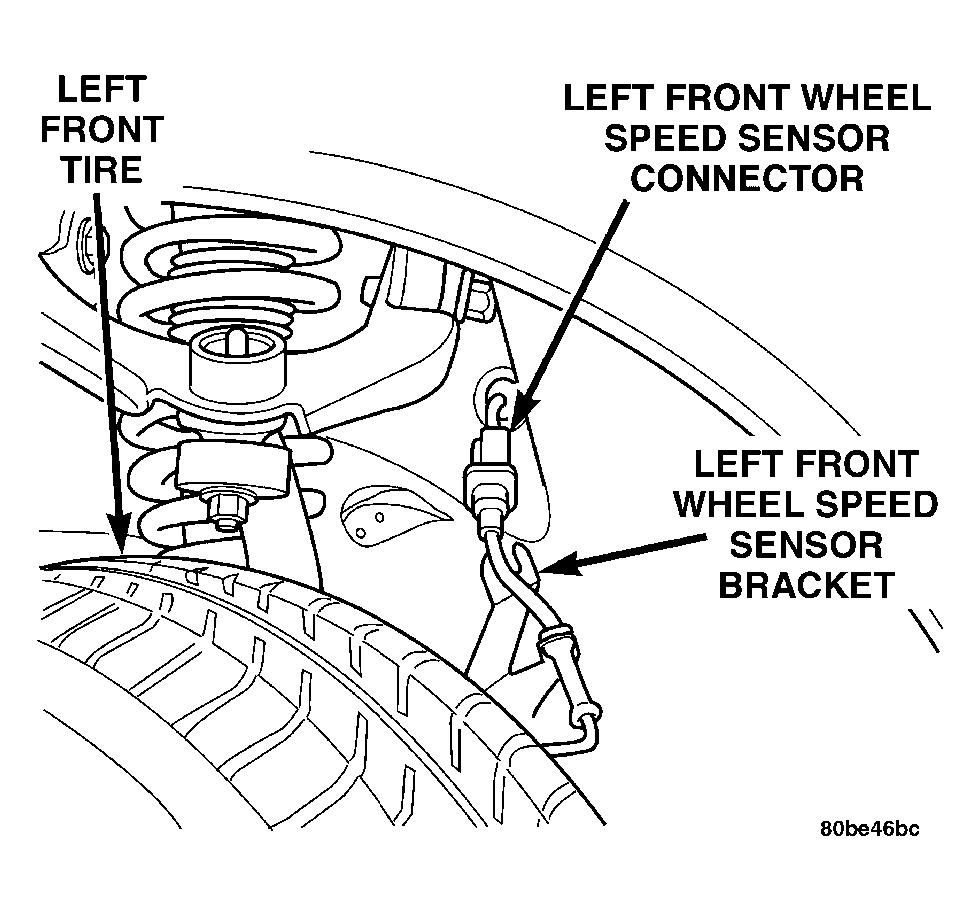

Fig 1: Identifying Wheel Speed Sensor Connectors - Left Front
G04536559Courtesy of DAIMLERCHRYSLER CORP.

RIGHT FRONT

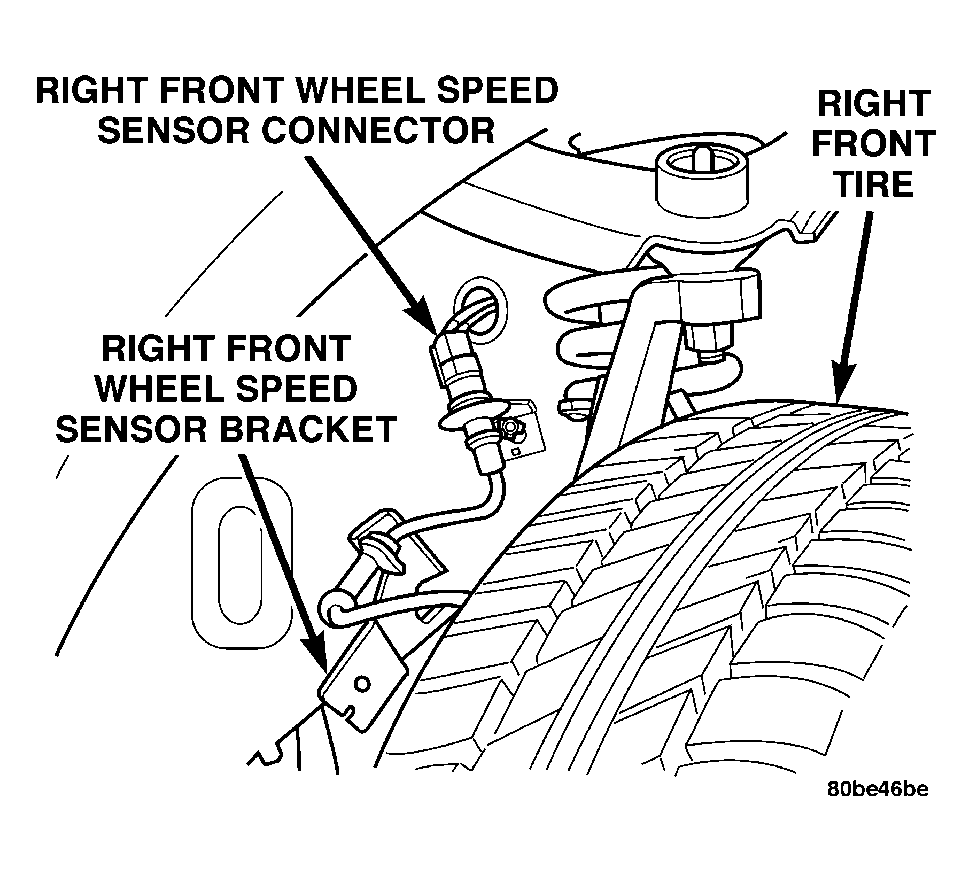

Fig 2: Identifying Wheel Speed Sensor Connectors - Right Front
G04536560Courtesy of DAIMLERCHRYSLER CORP.
