Coolant Recovery Press Container: Installation

  1. Connect the recovery hose to container.

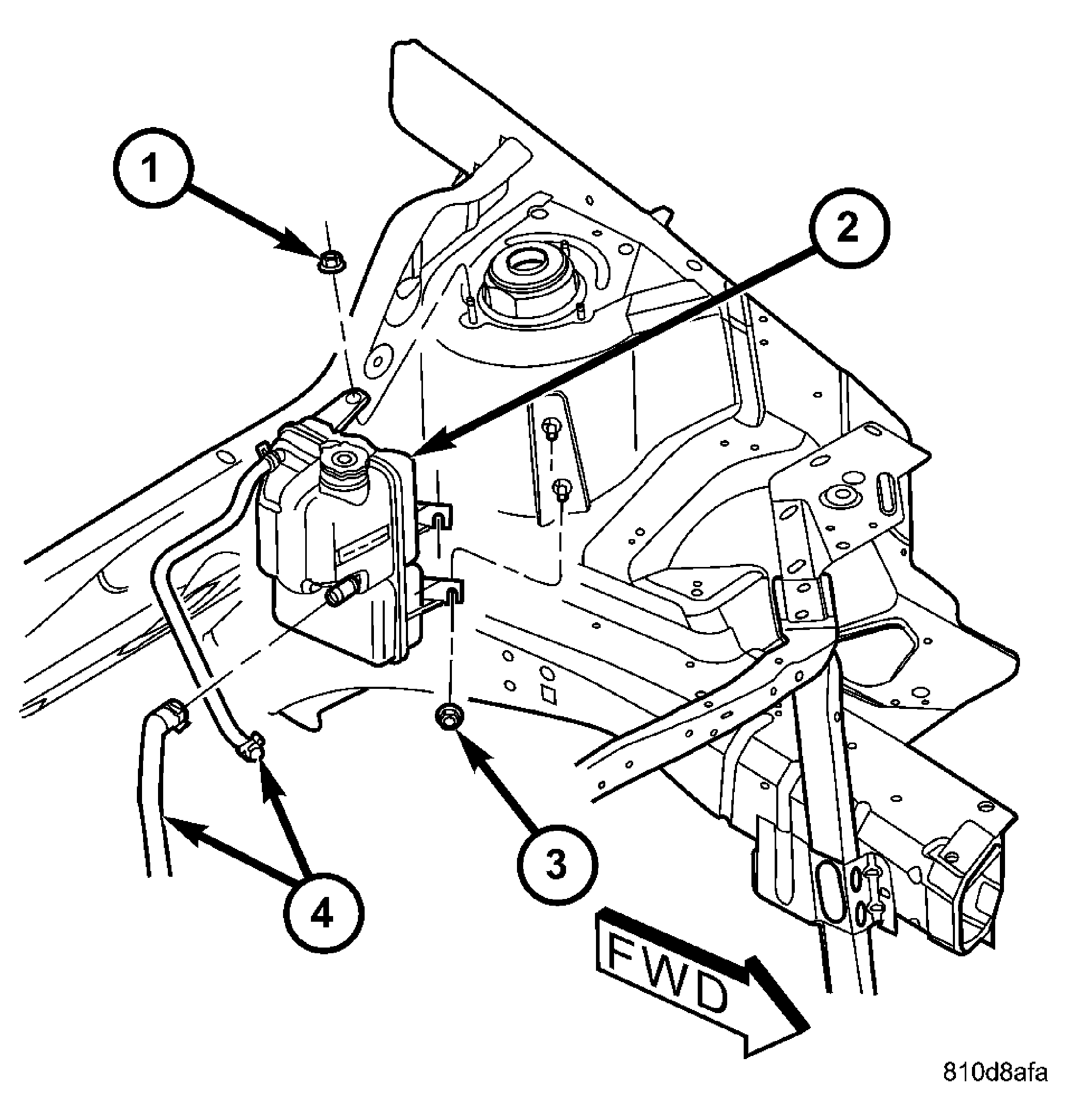

  2. Position the recovery container on the frame rail. See Figure.
  3. Install the upper attaching screw and tighten to 7 N.m (60 in. lbs.).
  4. Raise the vehicle on hoist.
  5. Install the lower attaching screws and tighten to 8.5 N.m (75 in. lbs.).
  6. Lower the vehicle.
  7. Add coolant to container as necessary (Refer to COOLING - STANDARD PROCEDURE) .
