Passenger Airbag: Installation

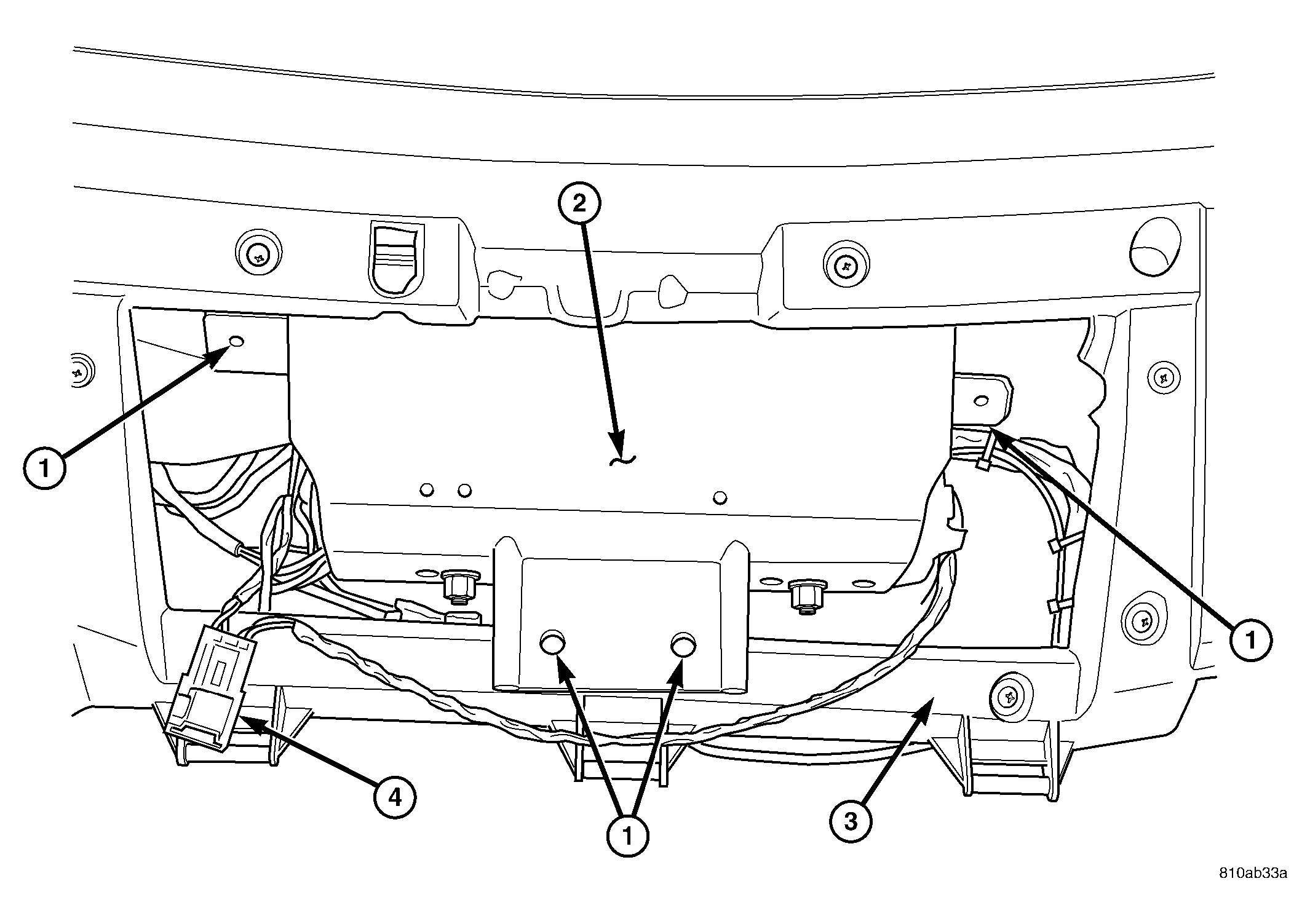

  1. Position the passenger airbag in the glove box opening and maneuver it enough to clear all obstacles and push it up into the opening in the instrument panel. See Figure. Once it is far enough up in the instrument panel it should rest on the crosscar beam.
  2. Using a long screwdriver or equivalent, reach up on both sides of the passenger airbag to install the screws that secure the passenger airbag to the instrument panel pad and door. See Figure. Torque screws to 2.5 +/-.5 N.m (24 +/- 5 in. lbs.).
  3. Connect the passenger airbag electrical connector. See Figure located on the inboard side of the passenger airbag, attached to the instrument panel steel reinforcement.
  4. Install the two lower screws attaching the passenger airbag to the crosscar beam. See Figure. Torque screws to 10 +/- 2 N.m (90 +/- 15 in. lbs.).
  5. Install the glove box assembly (Refer to BODY/INSTRUMENT PANEL/GLOVE BOX - INSTALLATION) .
    WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM)  FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.
  6. Verify vehicle and system operation.
  7. Close hood.
