Driver Airbag: Installation

When replacing a driver airbag, the new airbag will come with the trim cover and horn included. If undeployed, they need not be transferred to the new airbag.

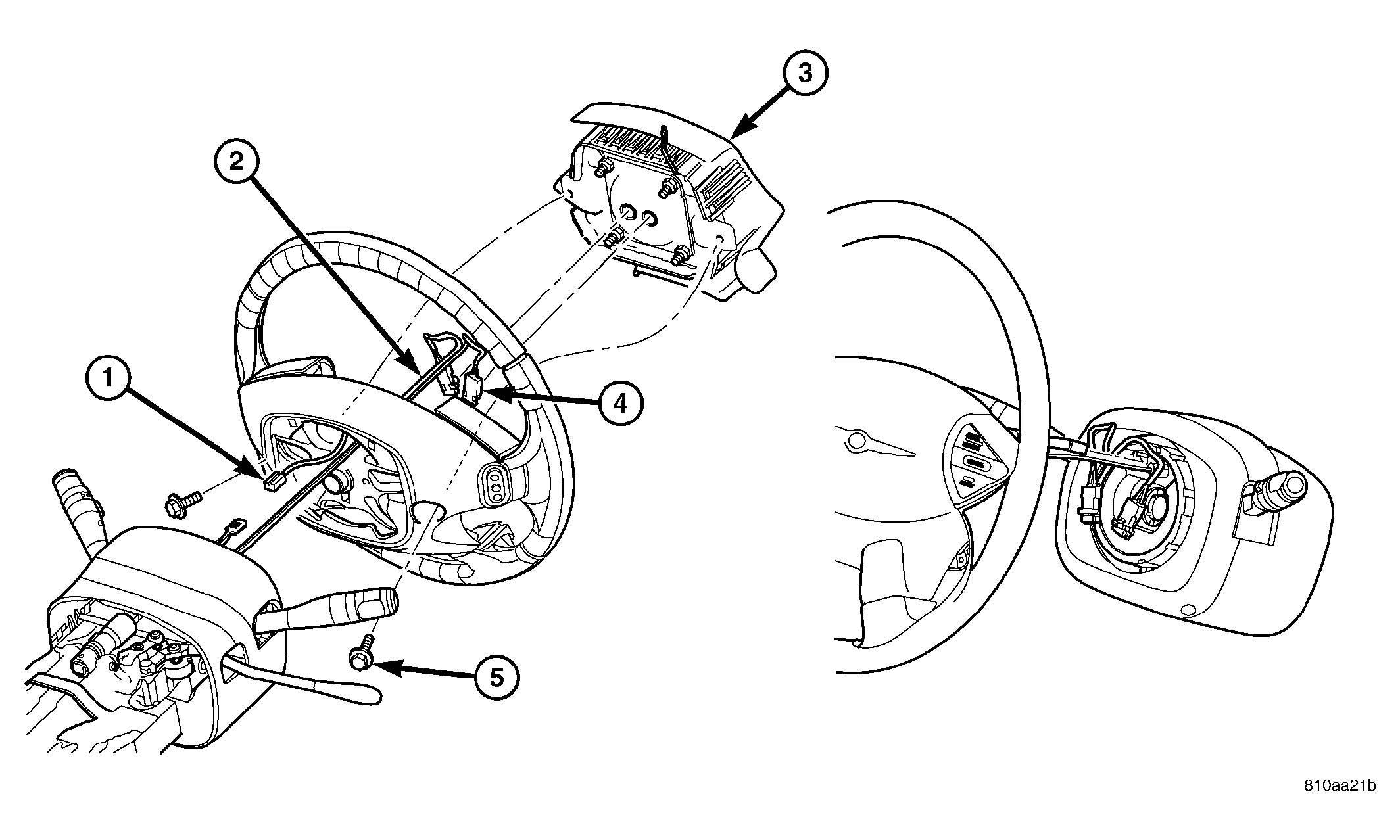

1. Connect the two squib connectors to the back of the driver airbag. See Figure.
2. Install the driver airbag into the steering wheel cavity.
3. Install the two retaining screws to the driver airbag in the rear of the steering wheel. See Figure.
   WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM)  FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.
4. Verify vehicle and system operation.
5. Close hood.
