Cross-Over Pipe: Removal

  1. Disconnect negative cable from battery.
  2. Remove the fasteners attaching the left bank manifold connection to cross-over pipe. See Fig 1.
  3. Loosen and remove the lower fastener.
  4. Remove the cross-over pipe support fastener.
  5. Remove the cross-over pipe. See Fig 1.
  6. Remove gaskets and discard. See Fig 1.

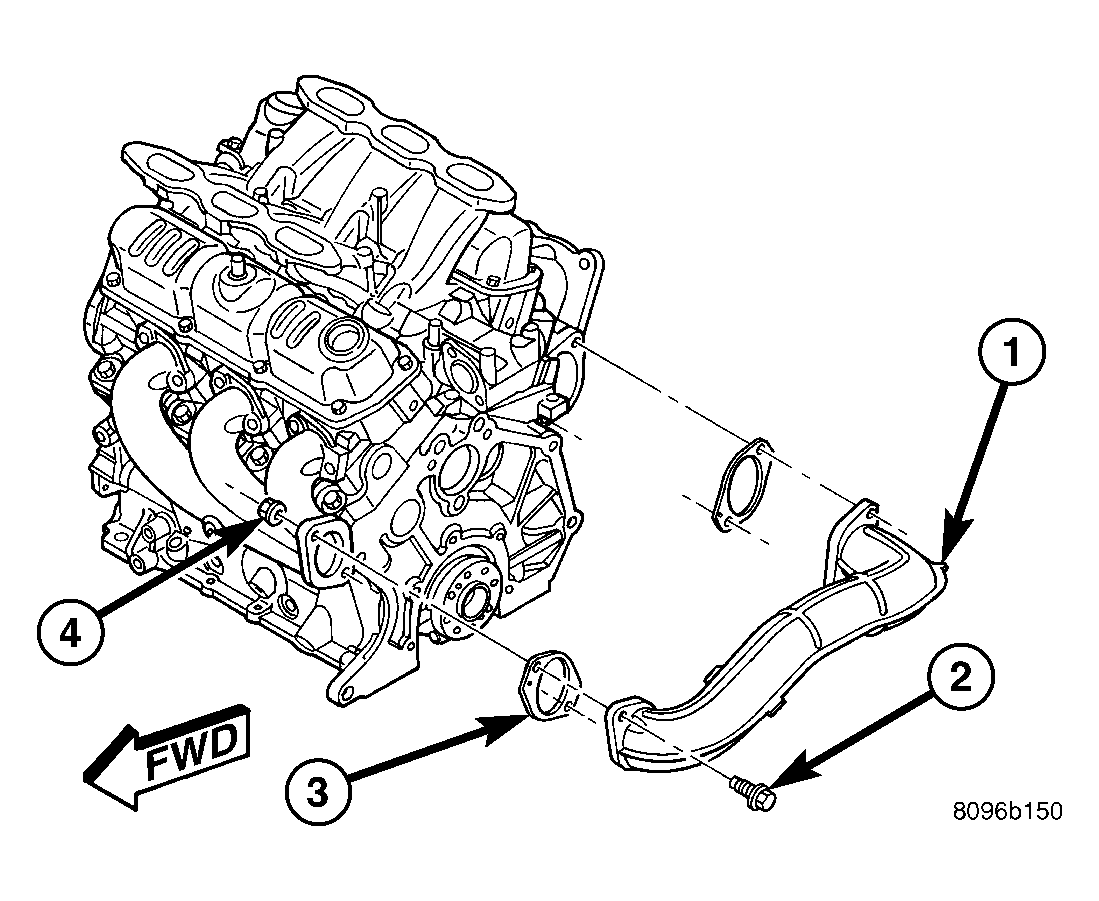

Fig 1: Cross-Over Pipe
GC0000215Courtesy of DAIMLERCHRYSLER CORP.
1 - CROSS-OVER PIPE
2 - BOLT
3 - GASKET
4 - FLAG NUT
