Cluster Lens: Installation

  1. Align the tabs over the retaining slots of the cluster housing. Be careful to align the trip odometer button through the cluster lens.
  2. Firmly push down until you seat all the retaining tabs.

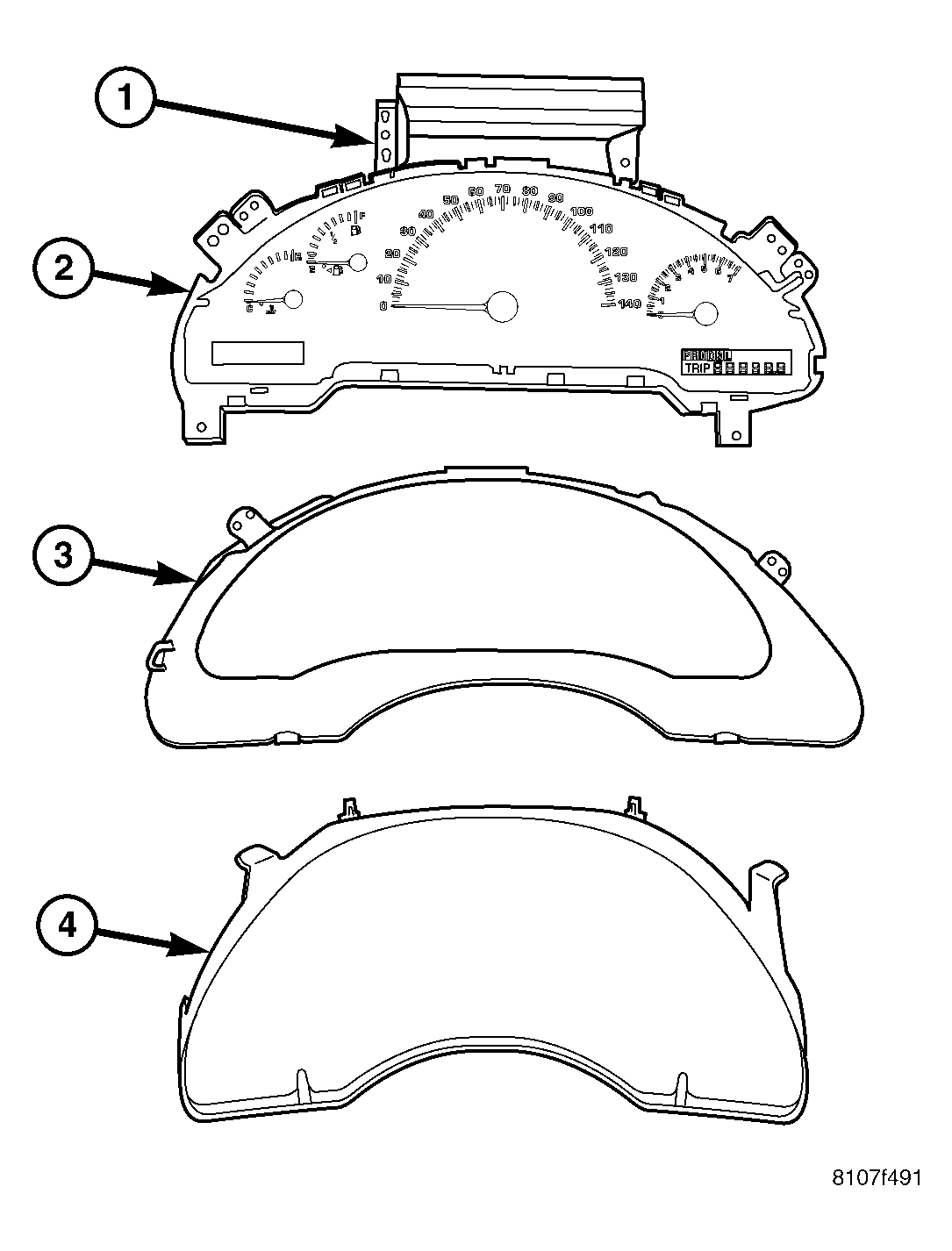

  3. Install the two screws retaining the mask/lens to the cluster housing. See Figure.
  4. Install the instrument cluster (Refer to ELECTRICAL/INSTRUMENT CLUSTER - INSTALLATION) .
  5. Verify vehicle and system operation.
