Power Latch: Removal

Open the liftgate.
Open the hood, disconnect and isolate the negative battery cable.
Remove the liftgate trim panel. Refer to INTERIOR/EXTERIOR for the procedure.
Disconnect the power latch electrical connector.

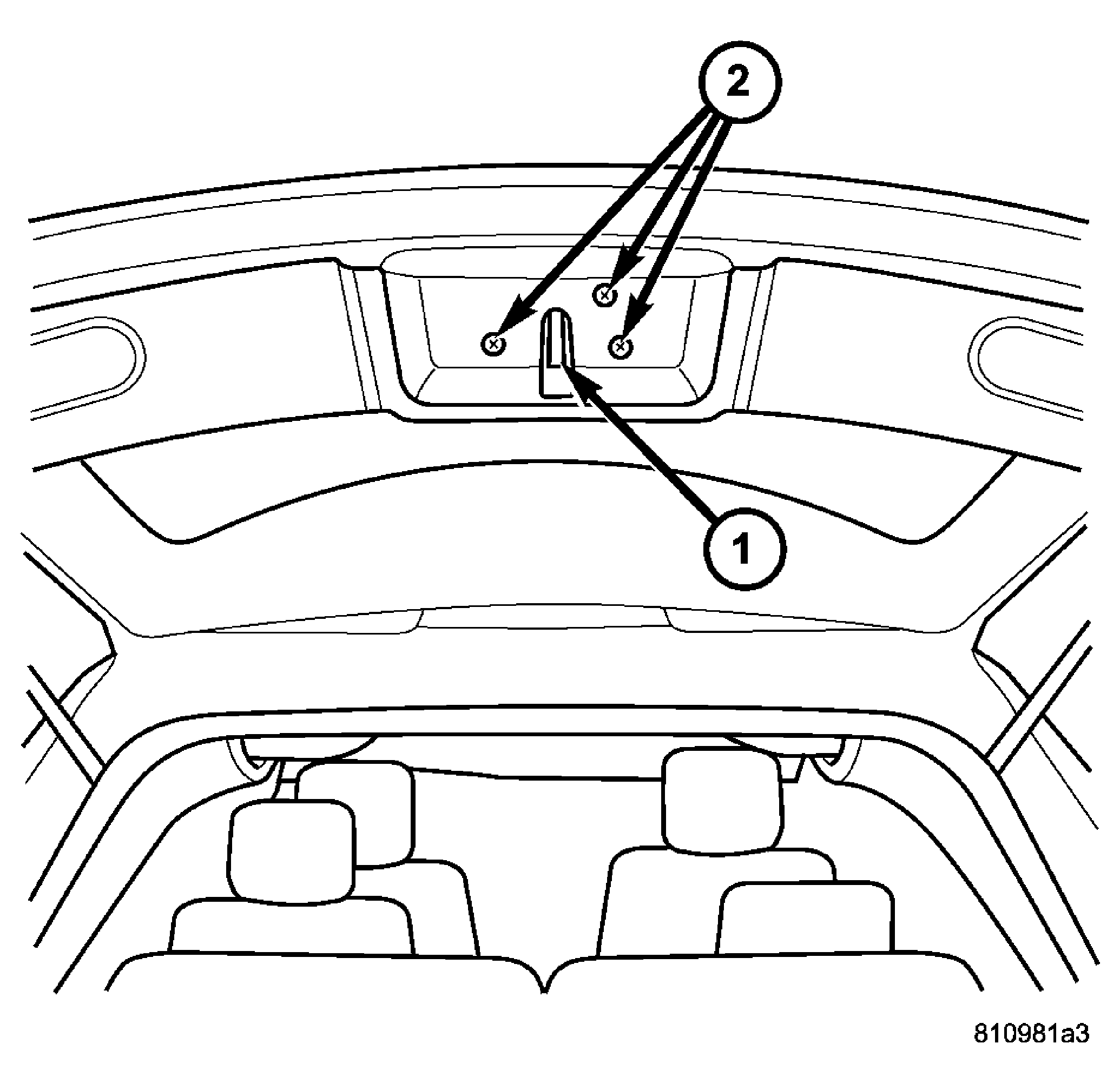

Fig 1: CS Power Latch Retaining Bolts
Courtesy of DAIMLERCHRYSLER CORP.

1 - Latch Assembly

2 - Latch Retaining Bolts
Remove the power latch retaining bolts. See Fig 1 and remove the latch assembly from the liftgate.
