Sentry Key Remote Entry Module: Installation

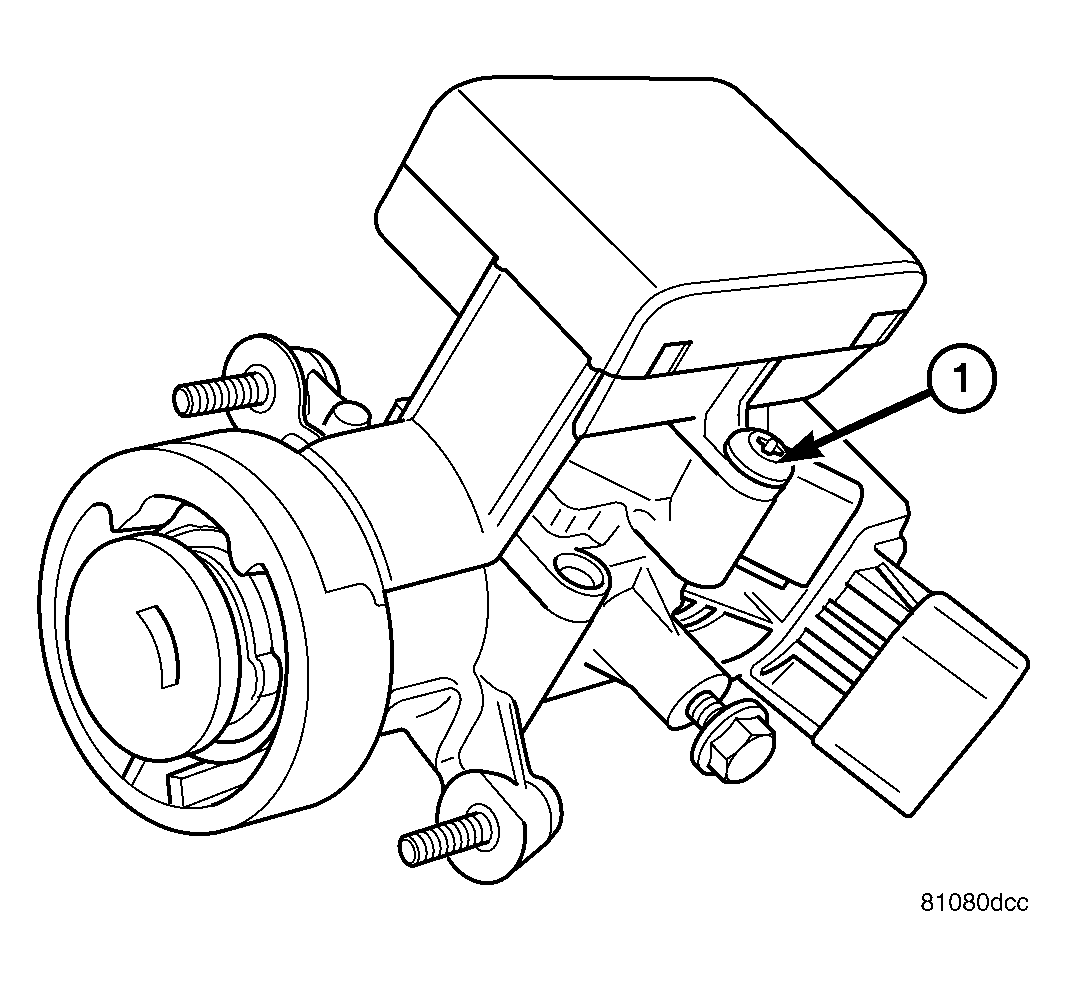

  1. Position the SKREEM on the ignition lock housing and install the retaining screw. See Figure

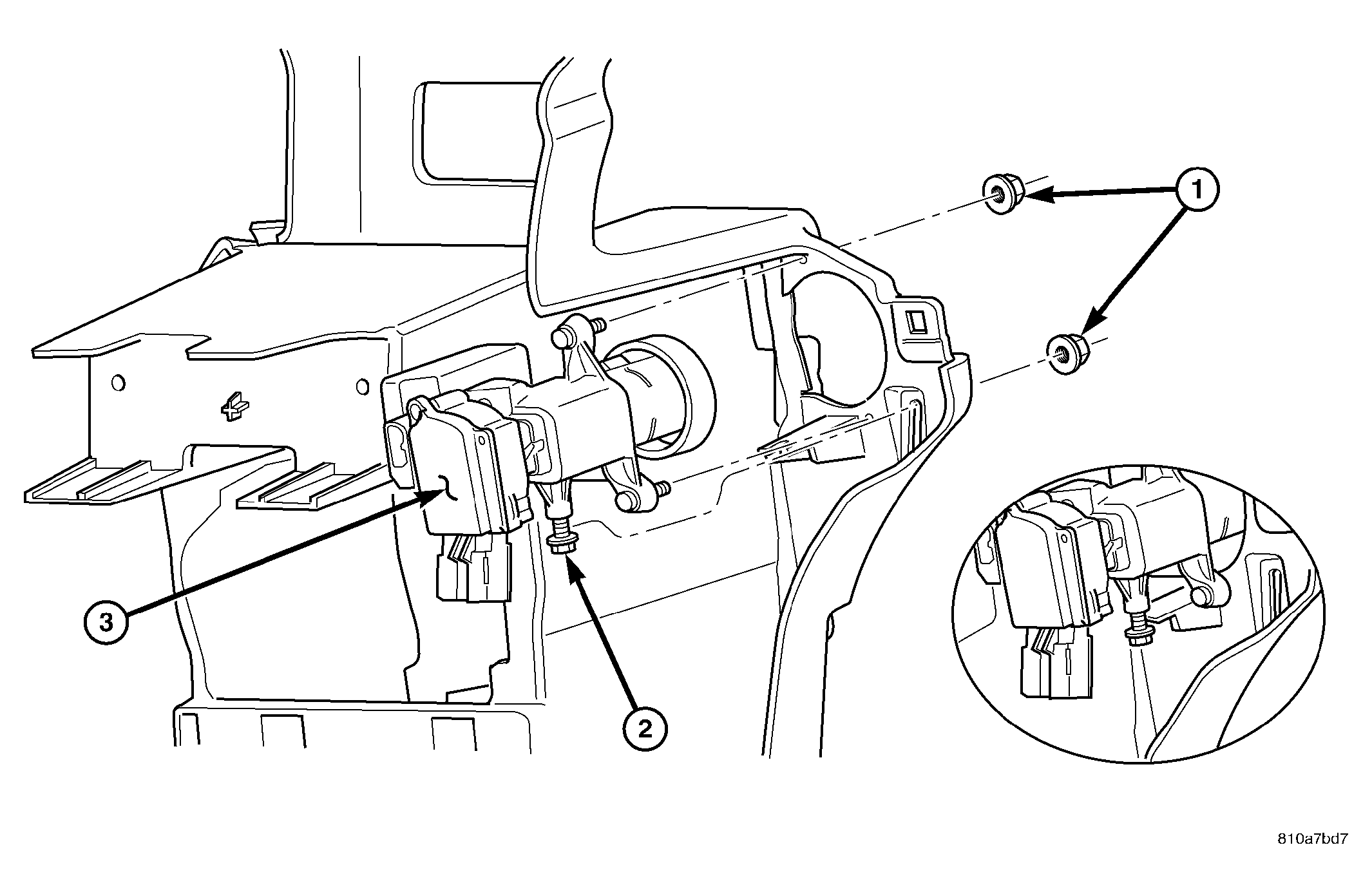

  2. Position the ignition switch/lock assembly up in behind the instrument panel and push rearward. See Figure.
  3. Install the two mounting nuts to the front of the instrument panel. See Figure.
  4. From underneath the ignition switch/lock assembly, tighten the lower retaining screw. See Figure.

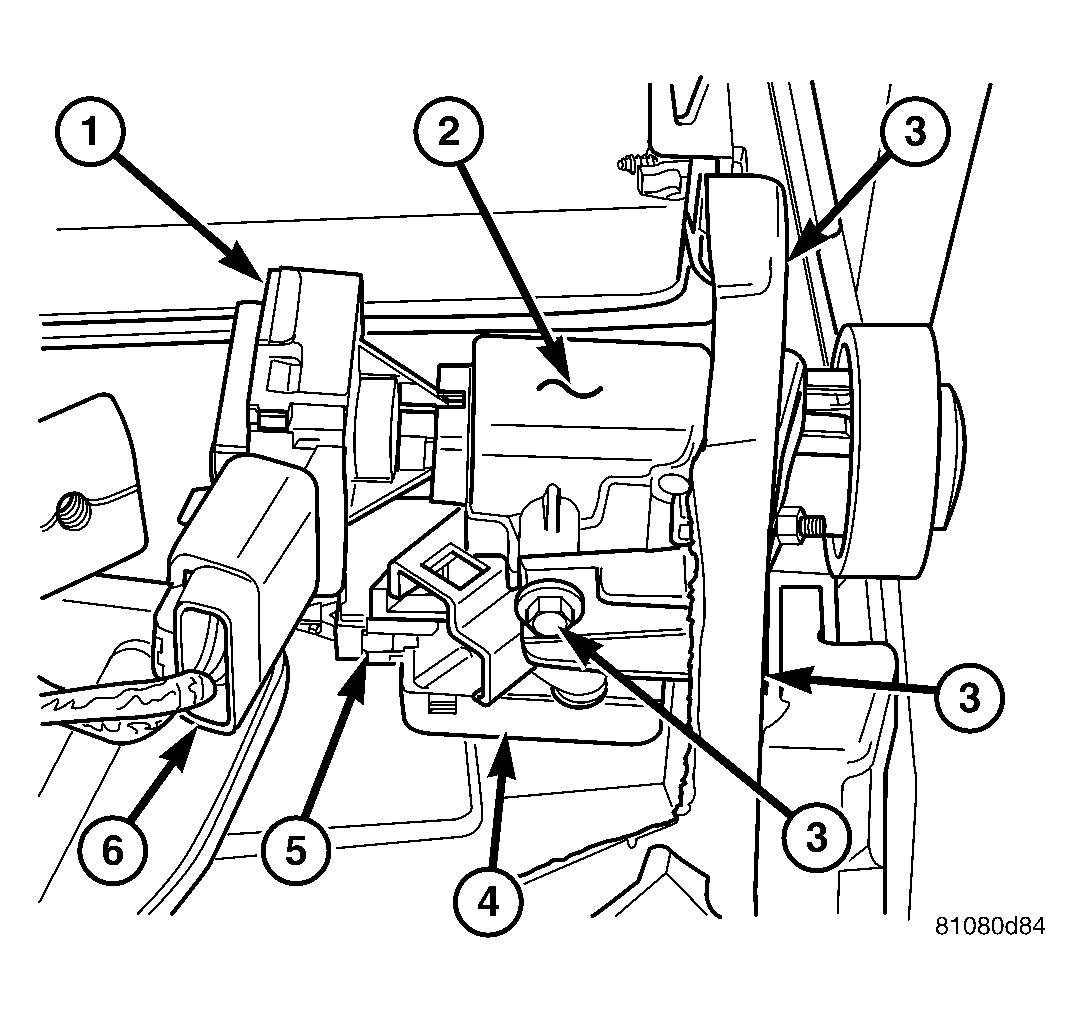

  5. Reach up behind the left side of the center stack and connect the ignition switch and SKREEM electrical connectors. See Figure.

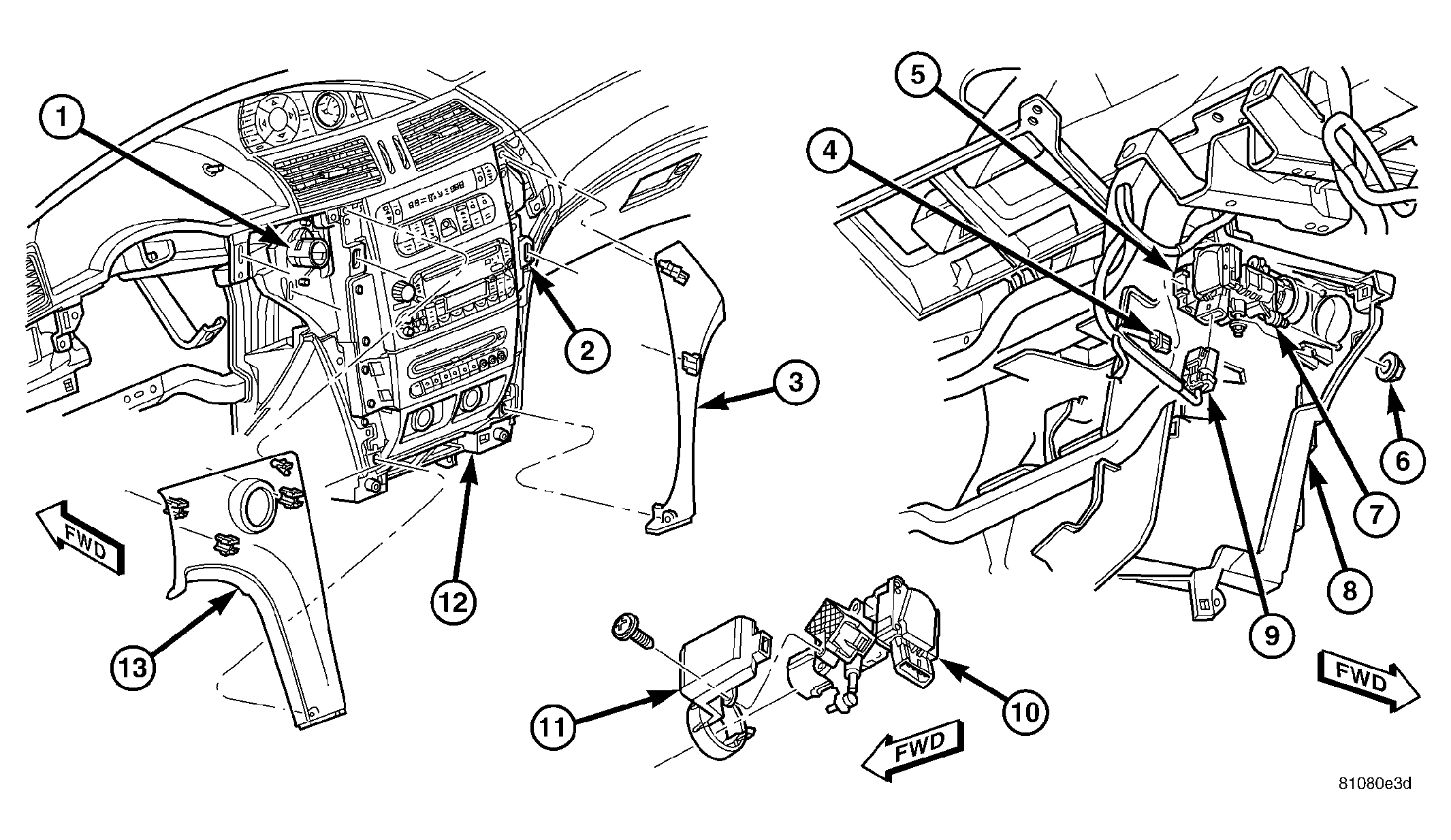

  6. Position the instrument panel center stack left bezel over retaining slots and firmly snap into place. See Figure.
  7. Install the knee blocker airbag (Refer to ELECTRICAL/RESTRAINTS/KNEE BLOCKER AIRBAG - INSTALLATION) .
    WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. (Refer to ELECTRICAL/RESTRAINTS - DIAGNOSIS AND TESTING - AIRBAG SYSTEM) FIRST. FAILURE TO DO SO COULD RESULT IN OCCUPANT PERSONAL INJURY OR DEATH.
  8. Verify vehicle and system operation.
  9. Close hood.
