Seat Belt Height Adjuster: Installation

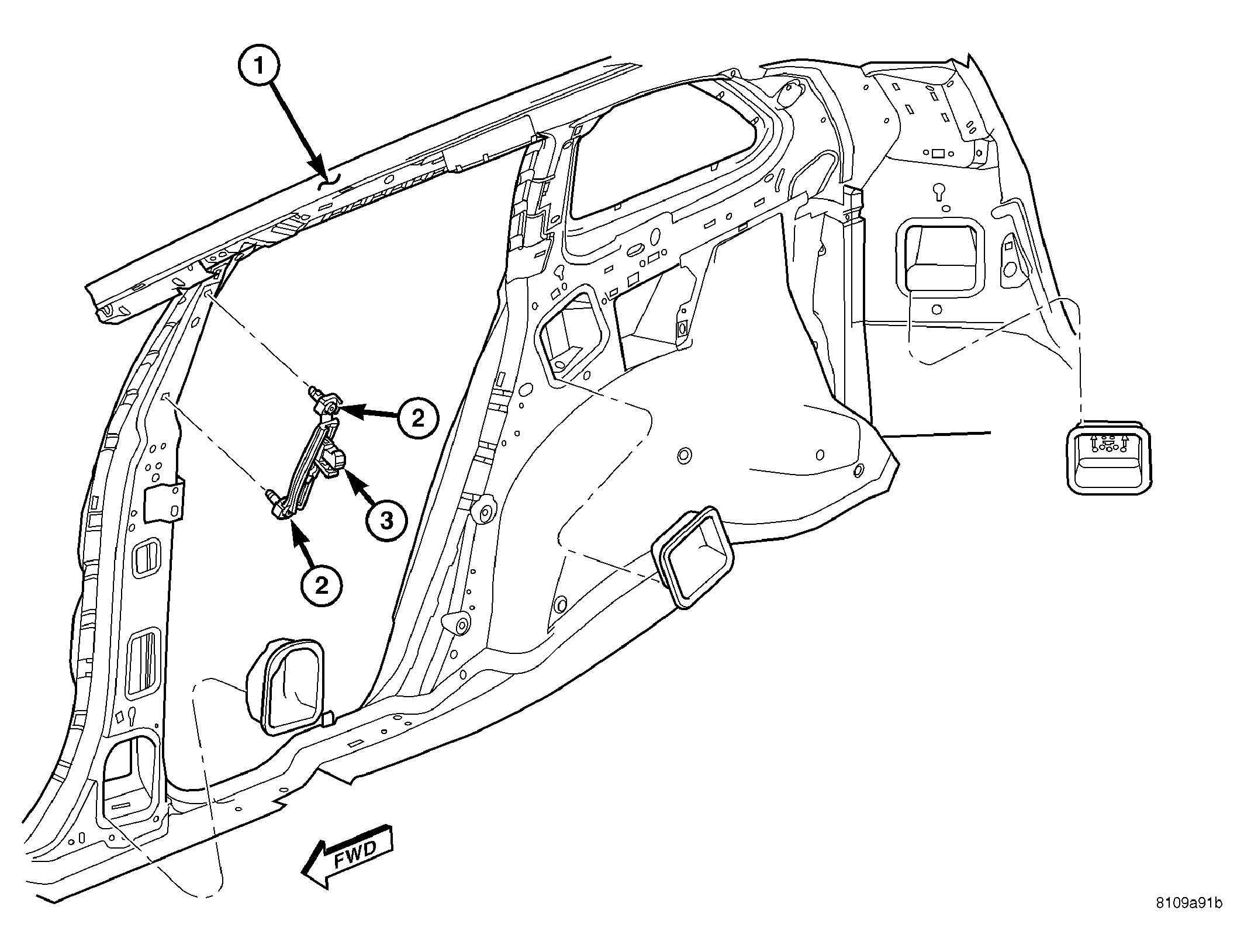

  1. Position height adjuster in place and install the two mounting bolts. See Figure.
  2. Install the turning loop to height adjuster retaining bolt. Torque bolt to 40 N.m (30 ft. lbs.).
  3. Install the upper B-pillar trim (Refer to BODY/INTERIOR/B-PILLAR UPPER TRIM - INSTALLATION) .
  4. Position the height adjuster knob cover onto the height adjuster knob and firmly snap into place.
  5. Verify system operation.
