Manifold Absolute Pressure Sensor - Gray 3 Way

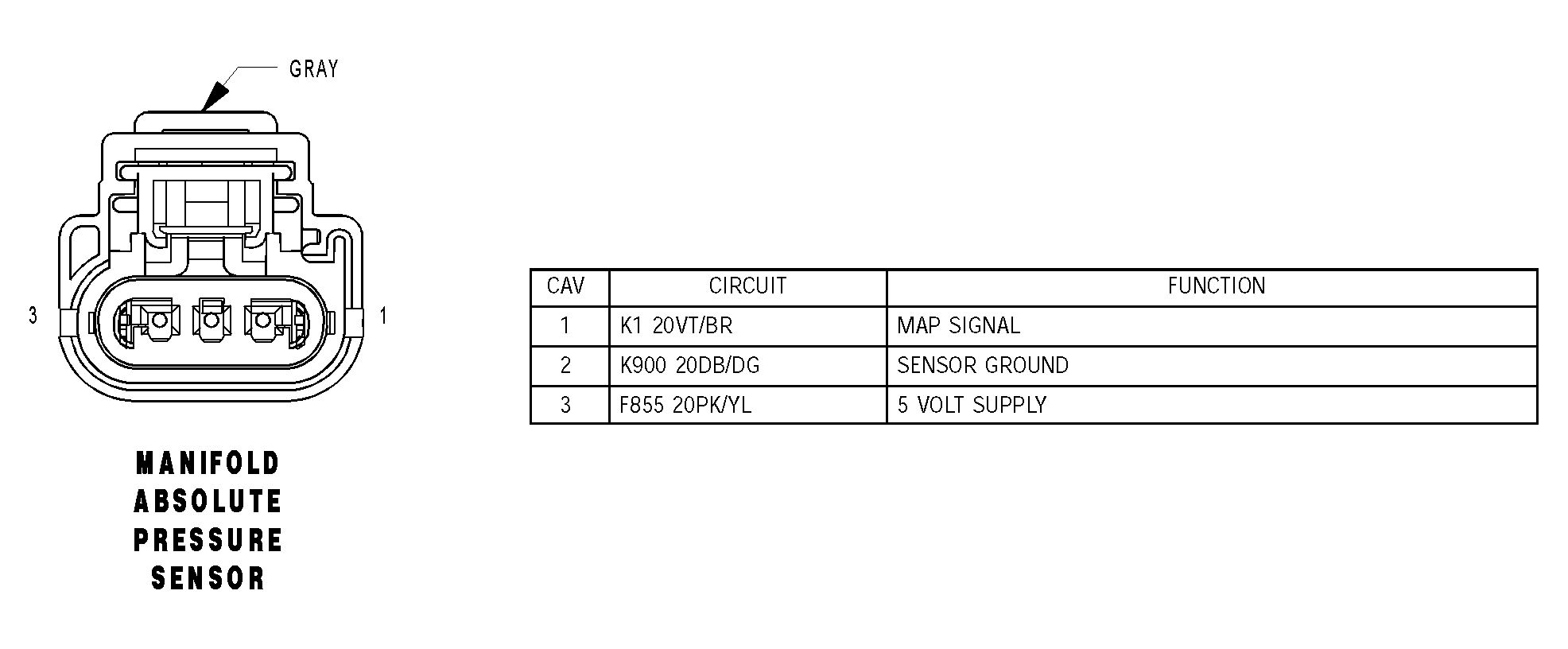

Fig 1: Identifying Manifold Absolute Pressure Sensor Connector Pinouts
G04528120Courtesy of DAIMLERCHRYSLER CORP.
