Engine Coolant Temperature Sensor - Black 2 Way

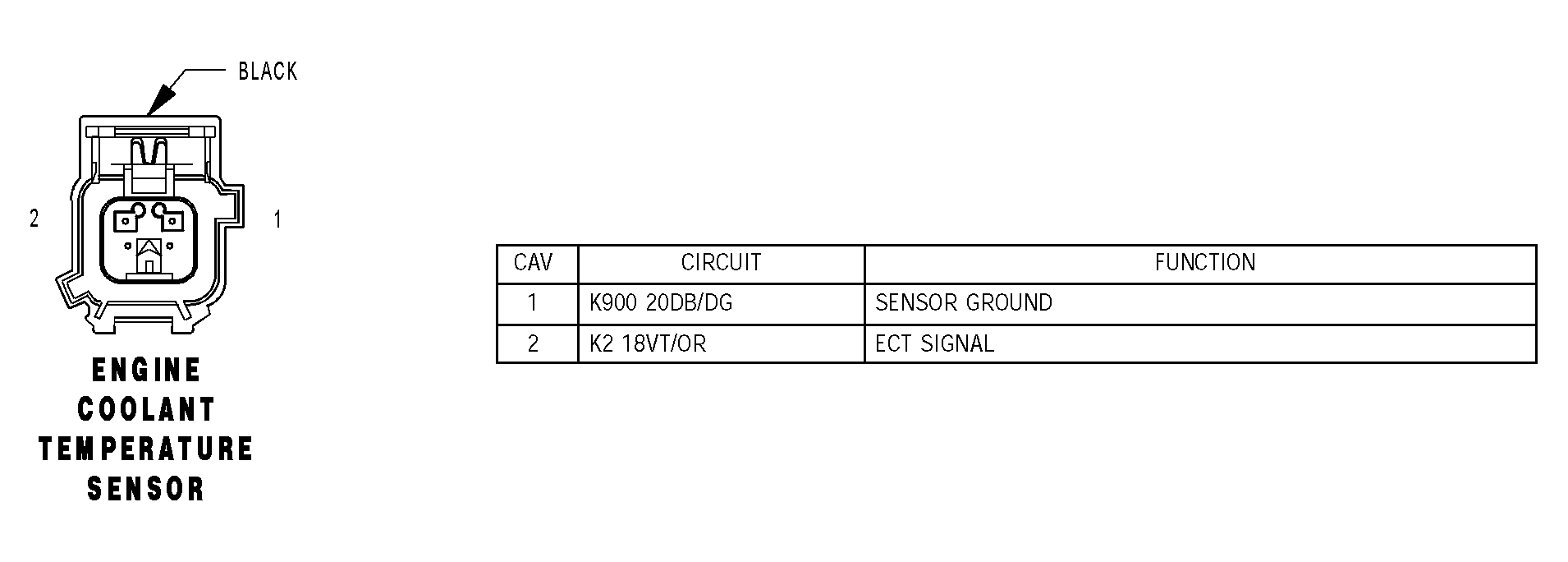

Fig 1: Identifying Engine Coolant Temperature Sensor Connector Pinouts

G04528099

Courtesy of DAIMLERCHRYSLER CORP.
