Short Runner Valve Solenoid: Installation

Install short runner valve. See Fig 1.

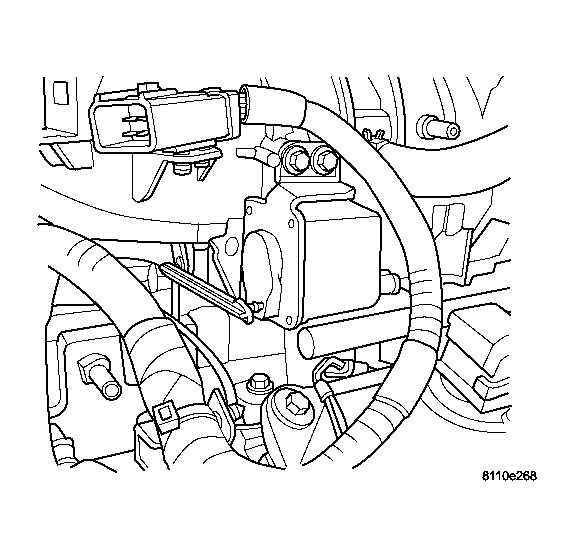

Fig 1: Short Runner Valve Solenoid Removed
Courtesy of DAIMLERCHRYSLER CORP.
Install the 4 bolts and tighten.
Install the link to short runner valve lever. See Fig 2.

Fig 2: Solenoid Link Removed
Courtesy of DAIMLERCHRYSLER CORP.
Connect the electrical connector to the short runner valve. See Fig 3.

Fig 3: Short Runner Valve
Courtesy of DAIMLERCHRYSLER CORP.
Connect the negative battery cable.
