Cs 3.5L/3.8L

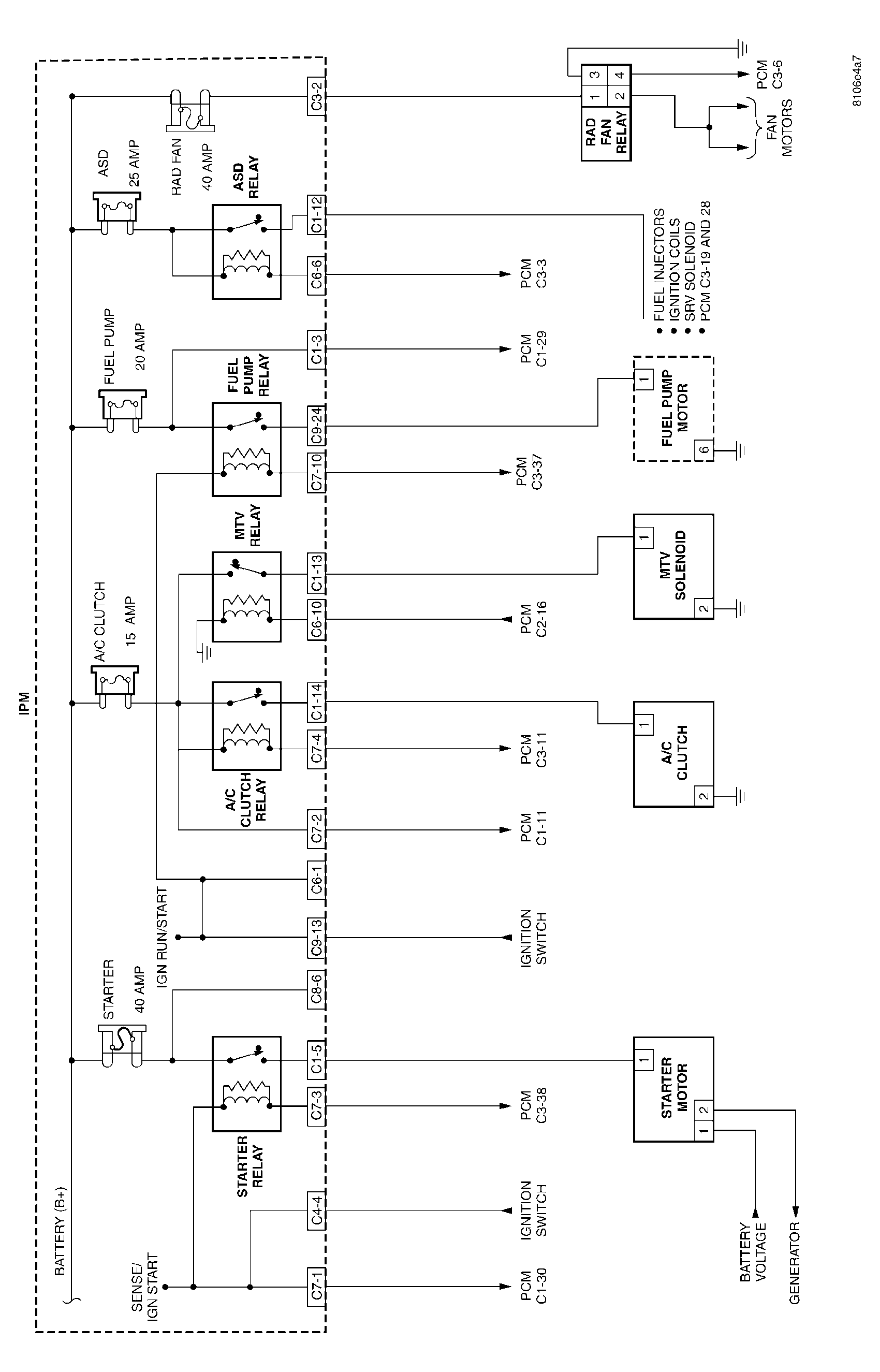

Fig 1: CS 3.5L/3.8L - Schematic Diagrams (1 Of 3)
G04528134Courtesy of DAIMLERCHRYSLER CORP.

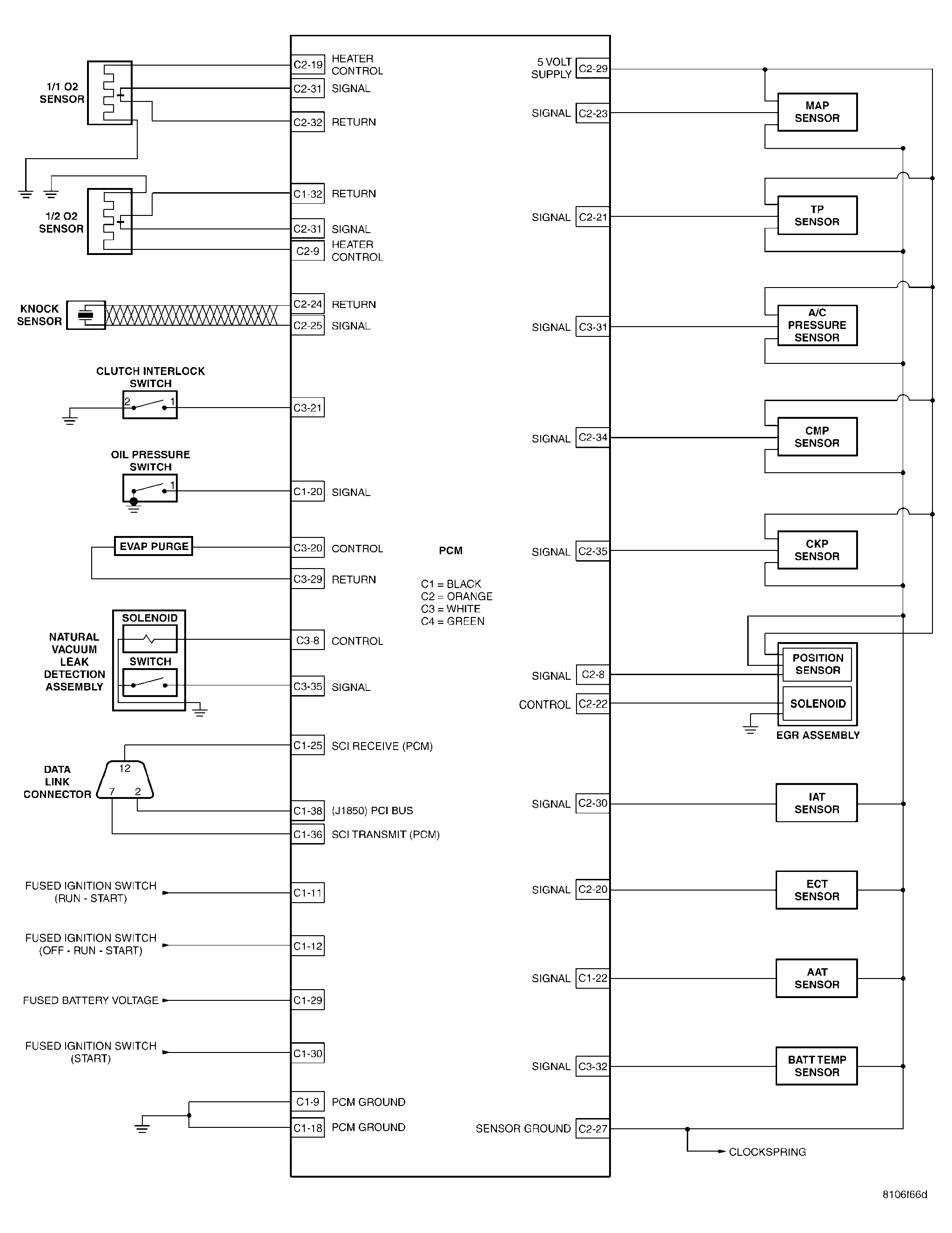

Fig 1: CS 3.5L/3.8L - Schematic Diagrams (2 Of 3)
G04528135Courtesy of DAIMLERCHRYSLER CORP.

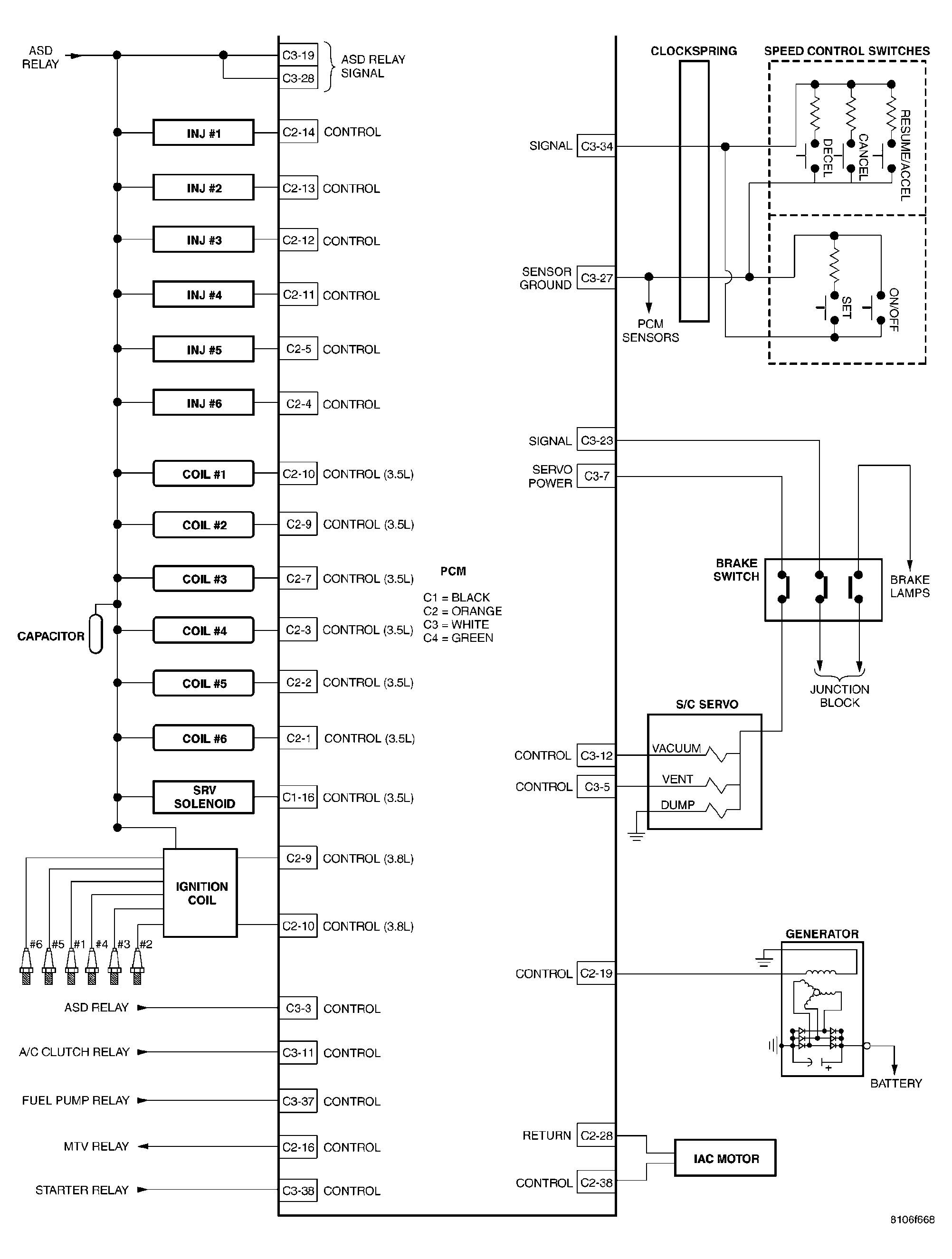

Fig 1: CS 3.5L/3.8L - Schematic Diagrams (3 Of 3)
G04528136Courtesy of DAIMLERCHRYSLER CORP.
