Installation - 2.2L Diesel

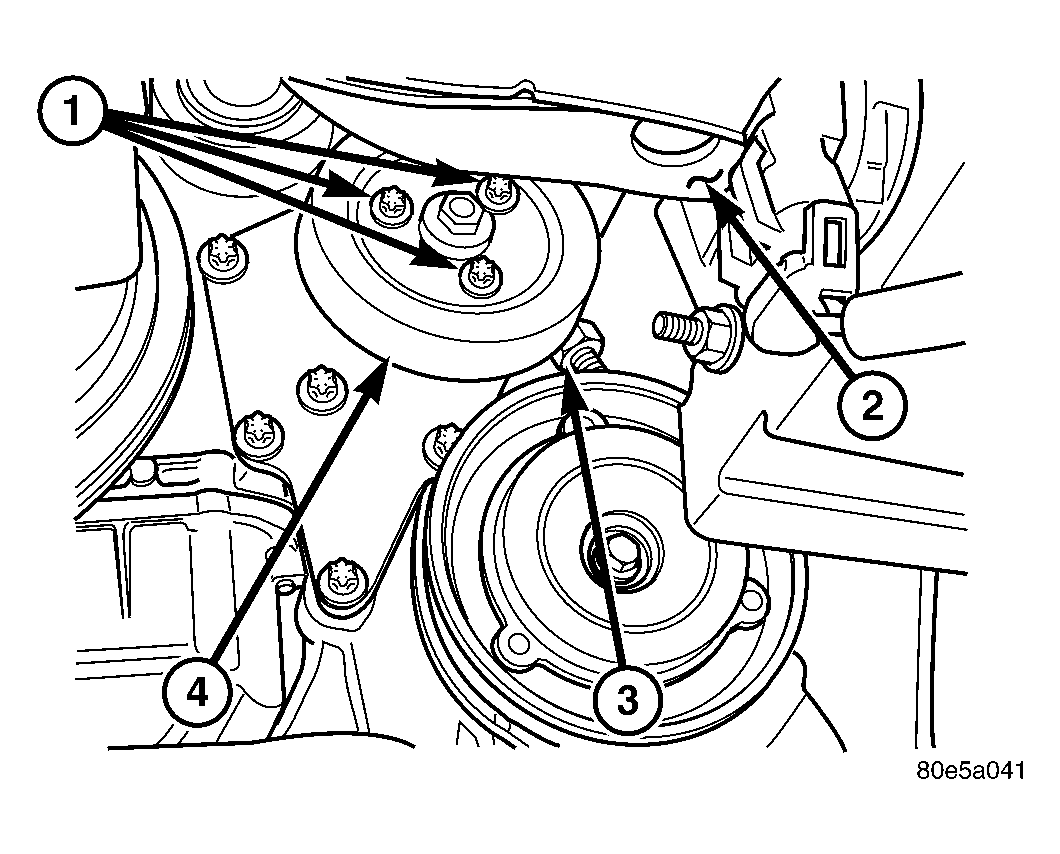

  1. Install pump drive pulley. See Figure. Tighten three mounting bolts to a torque of 28 N.m (21 ft. lbs.).
  2. Install accessory drive belt. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELT - INSTALLATION)

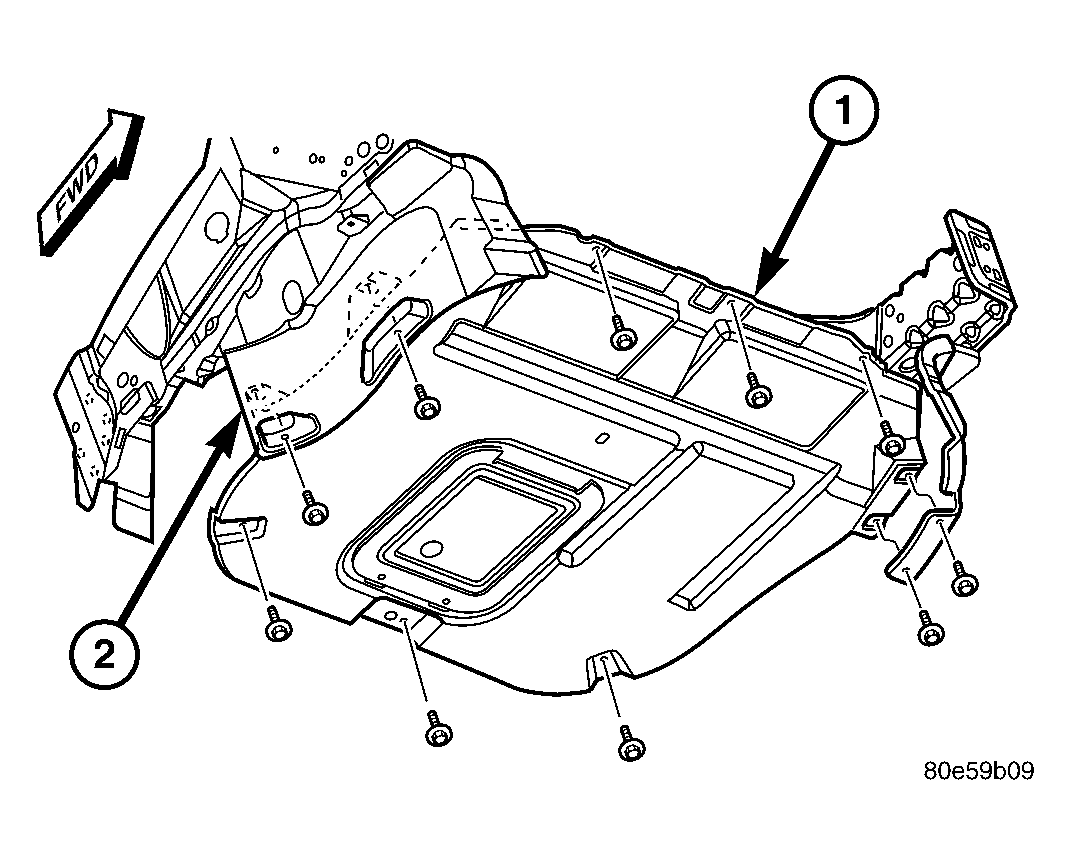

  3. Install lower engine compartment silencer assembly and drive belt splash shield. See Figure.
  4. Lower vehicle.
