Non-Deployed Airbag

  1. Open hood.
  2. Disconnect and isolate the battery negative cable.
  3. Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components.
  4. Remove instrument panel top cover (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL) .
  5. Open glove box, push in on the box/bin sides and lower to floor.
  6. Remove the right instrument panel end cap.
  7. Remove four passenger airbag cover screws along the bottom end of the airbag cover.
  8. Remove two passenger airbag cover screws along the top edge of the airbag cover.
  9. Remove two nuts retaining passenger airbag to instrument panel assembly inside glove box opening. See Fig 1.
    Fig 1: Passenger Airbag Retaining Nuts
    GC0023009Courtesy of DAIMLERCHRYSLER CORP.
  10. Lift airbag up until the wire connector is visible and disconnect the wire connector from airbag. Unlock the locking tab and release the connector. See Fig 2 and Fig 3.

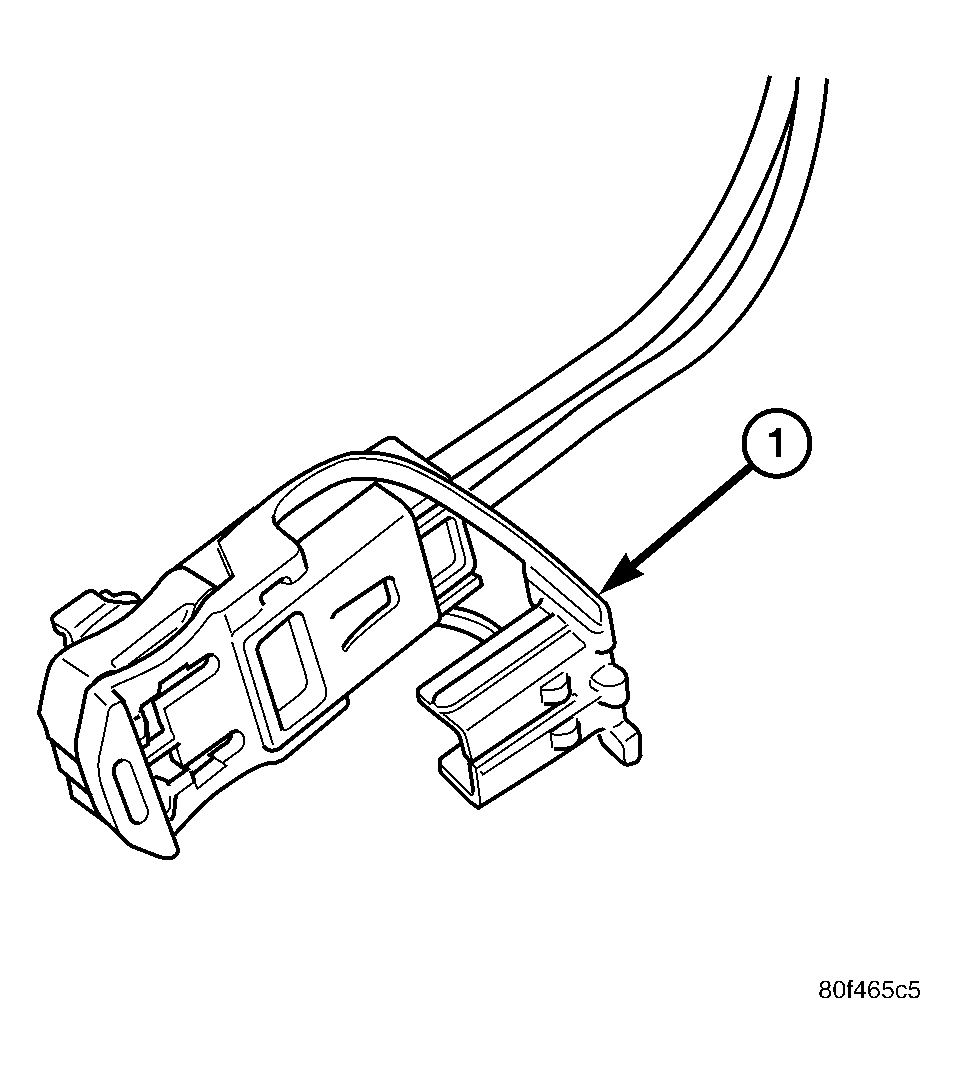

    Fig 2: Electrical Connector Lock
    GC0023010Courtesy of DAIMLERCHRYSLER CORP.
    1 - LOCKING TAB
    Fig 3: Passenger Airbag Electrical Connector
    GC0023011Courtesy of DAIMLERCHRYSLER CORP.
    1 - ELECTRICAL CONNECTOR
    2 - PASSENGER AIRBAG
  11. Remove passenger airbag from vehicle.
