Fuel Tank Filler Tube: Installation

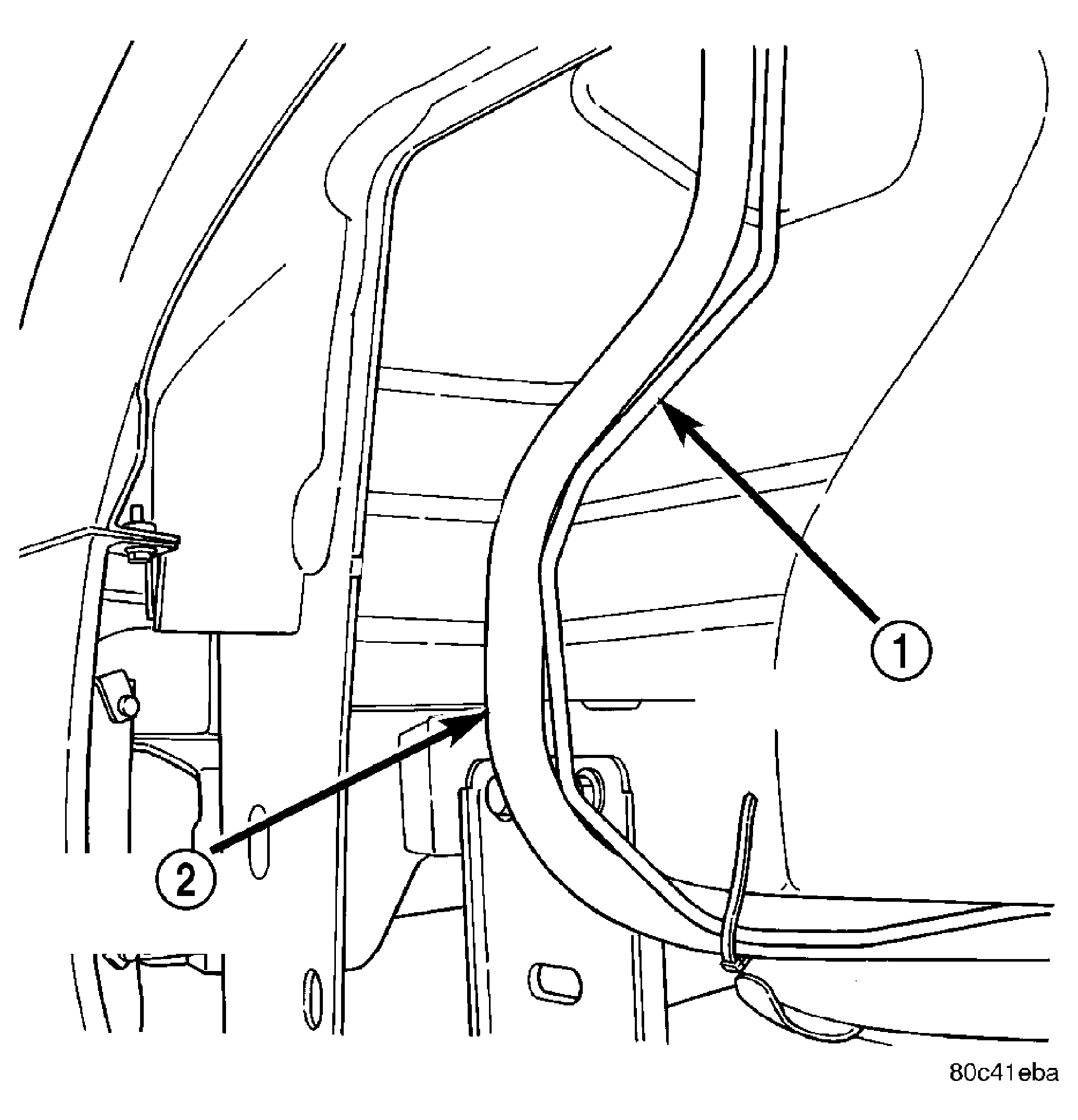

  1. Install fuel filler tube. Connect fuel filler tube hose to fuel tank neck and tighten clamp to 4.1 N.m (38 ins. lbs.). See Figure.

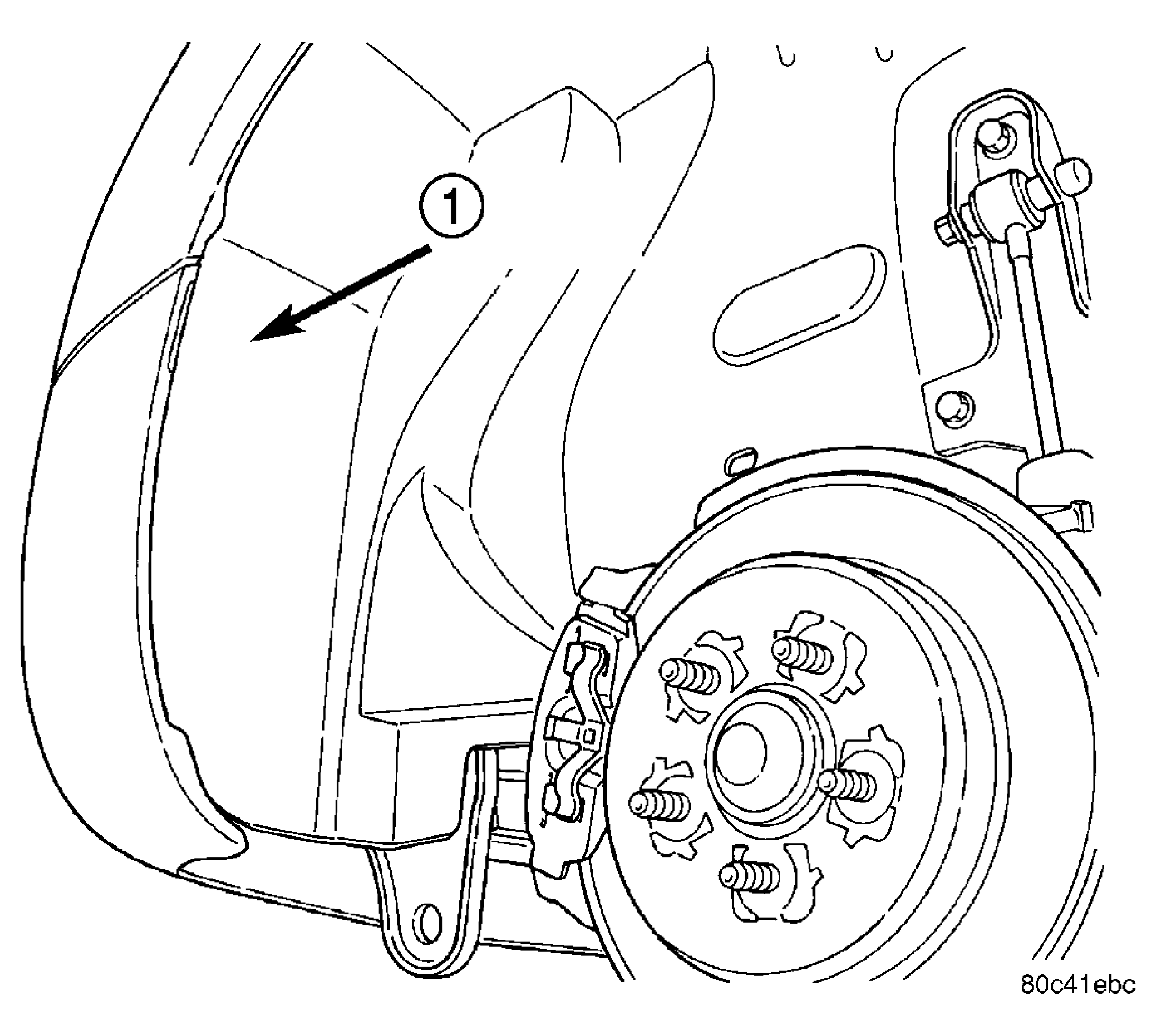

  2. Install the rear half of the inner splash shield. See Figure.
  3. Lower vehicle.

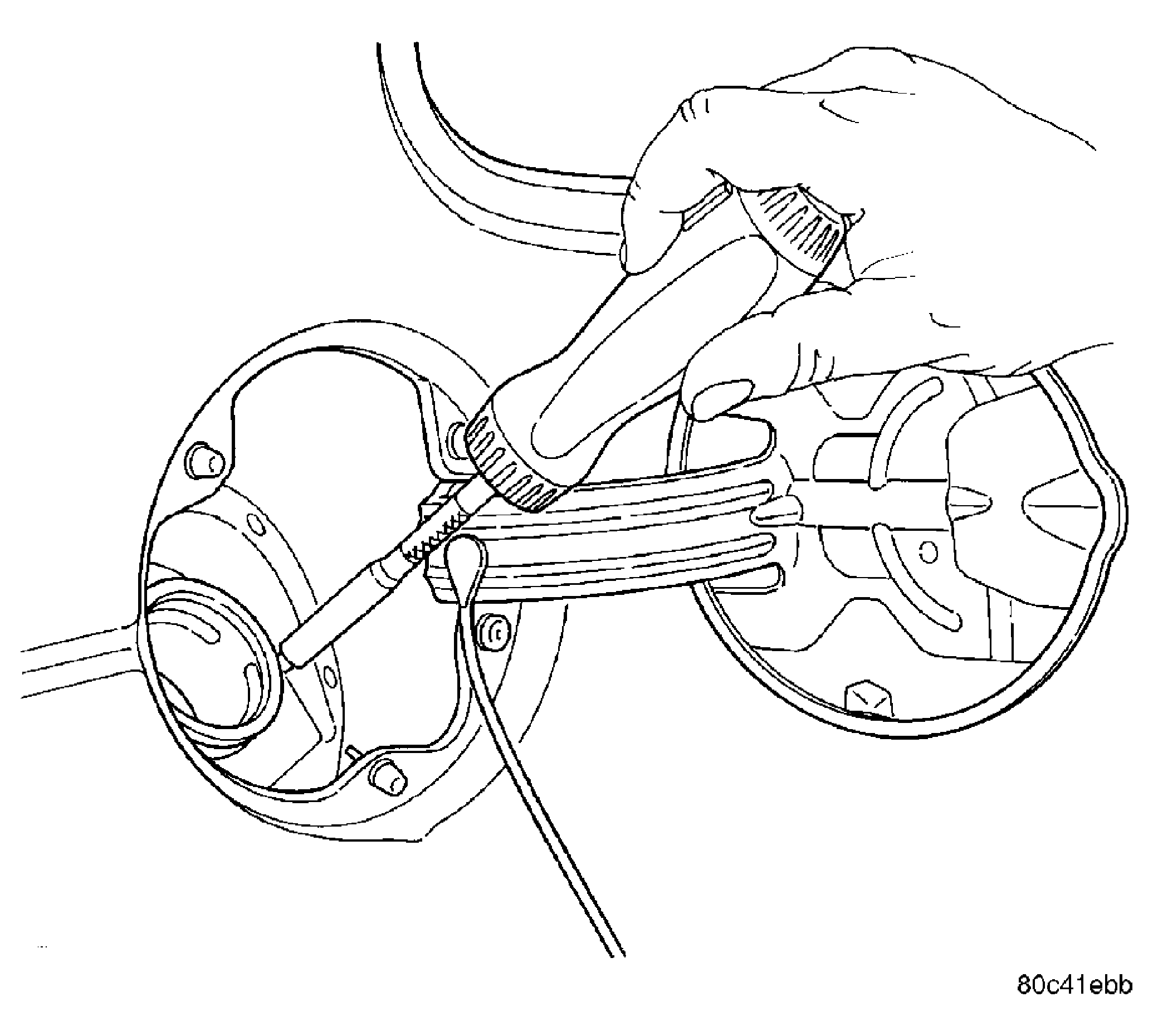

  4. Install fuel filler neck screws and tighten to 2.7 N.m (24 ins. lbs.). See Figure.
  5. Install fuel filler tube cap.
  6. Install the negative battery cable.
  7. Install the air cleaner lid and makeup air hose.
