Schematic Diagrams: Communication

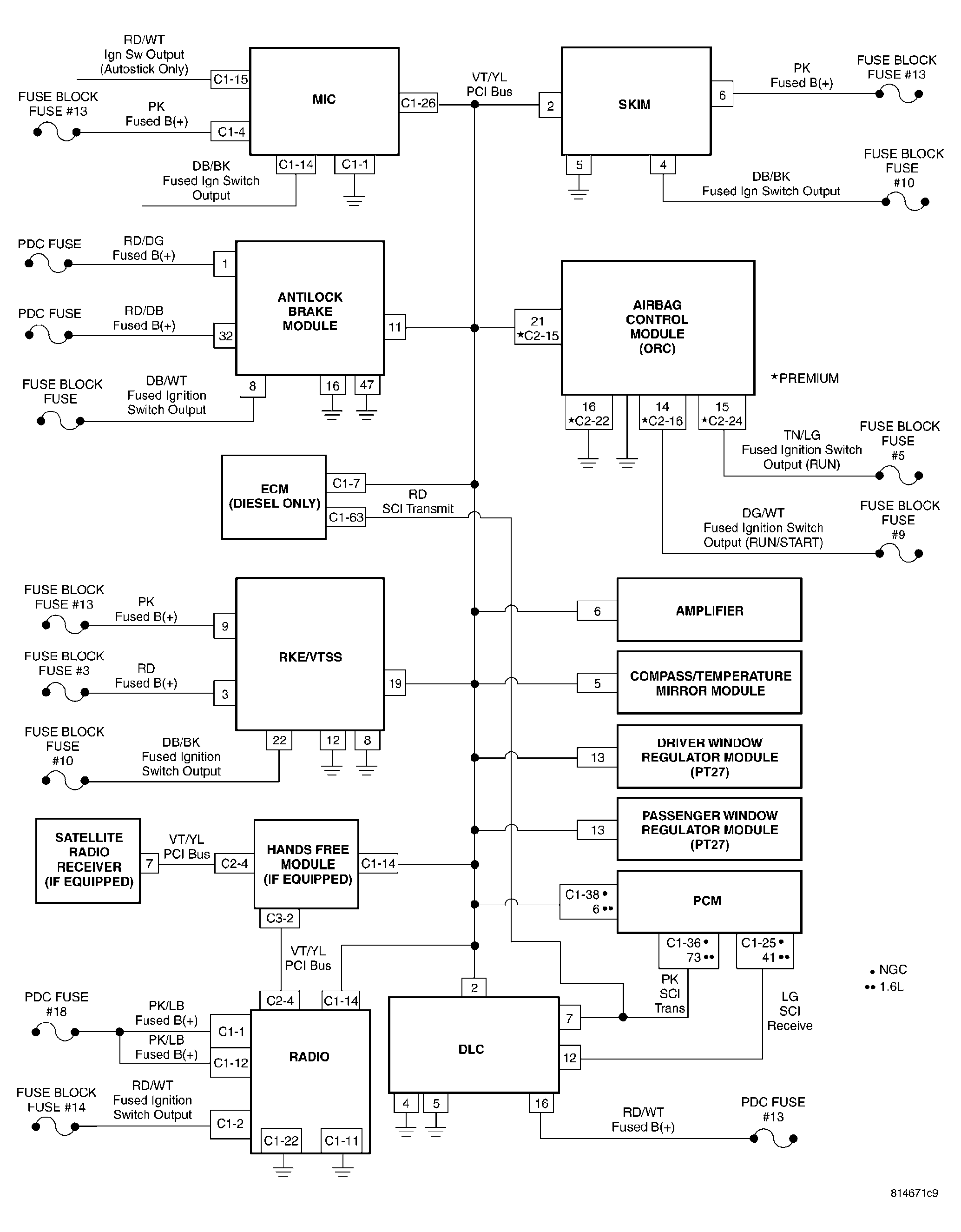

Fig 1: Communication - Schematic Diagrams

G04549121

Courtesy of DAIMLERCHRYSLER CORP.
