Powertrain Control Module (1.6L) - Black 90 Way

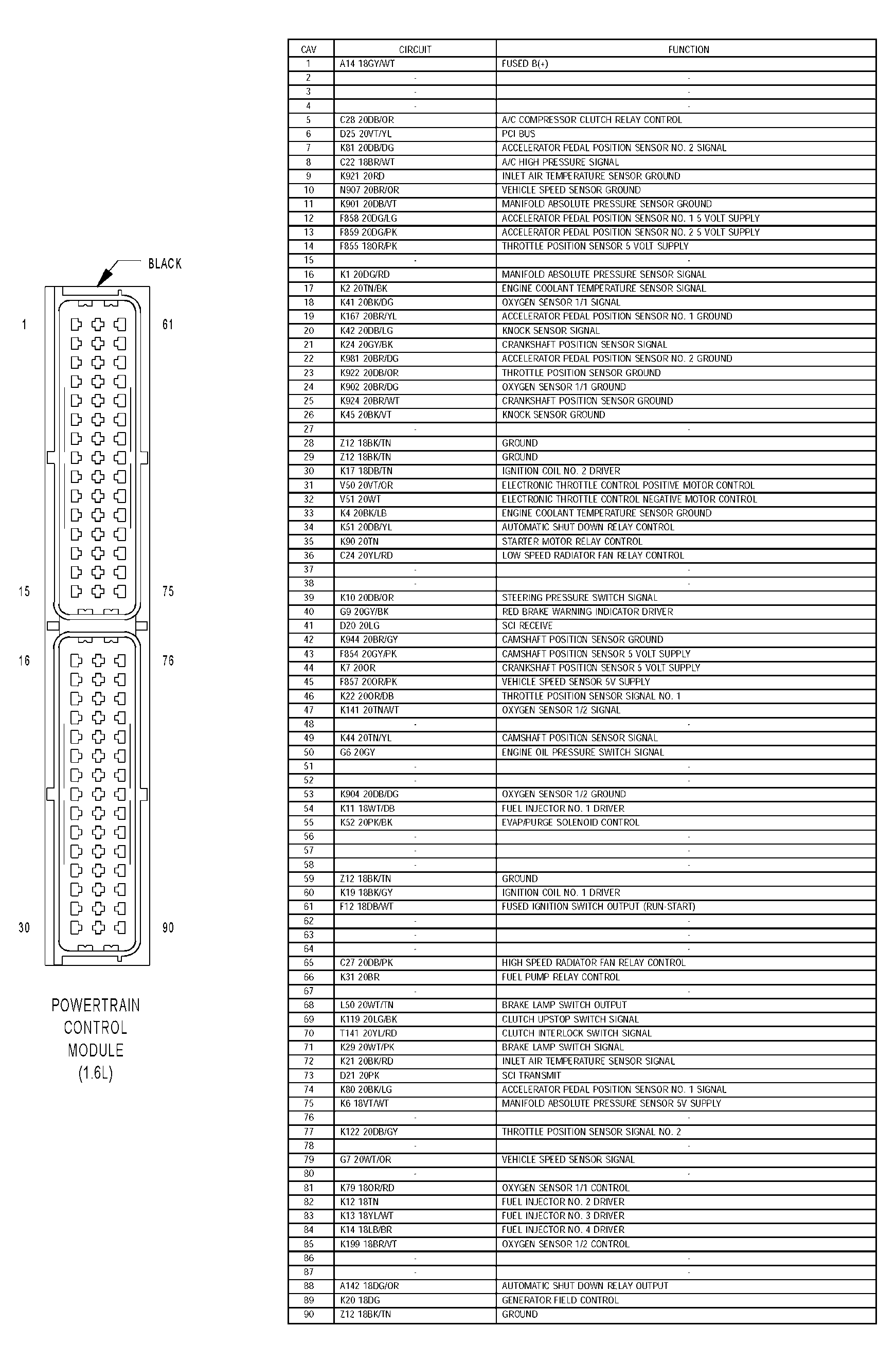

Fig 1: Identifying Powertrain Control Module (1.6L) - Connector Pinouts
G04549100Courtesy of DAIMLERCHRYSLER CORP.
