Generator and 1/1 O2 Sensor Locations (2.0L/2.4L)

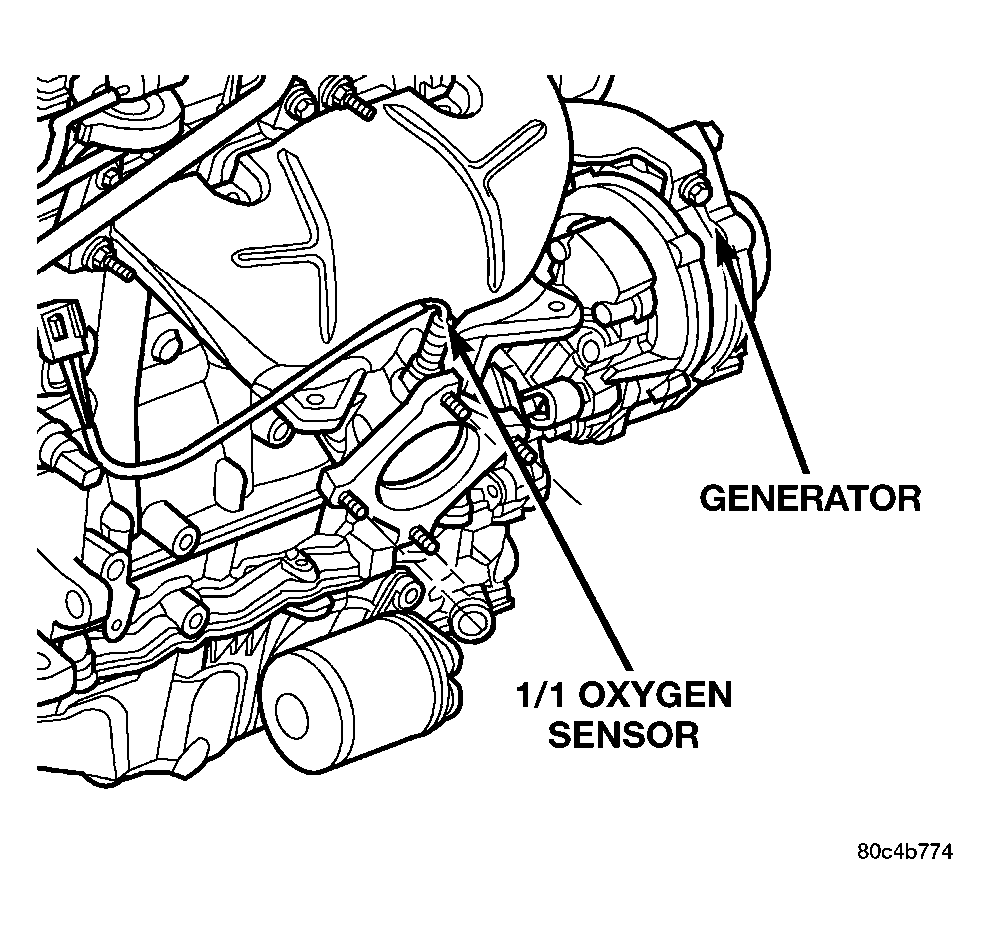

Fig 1: Locating Generator and 1/1 O2 Sensor (2.0L/2.4L)

G04548893

Courtesy of DAIMLERCHRYSLER CORP.
