Fuel Rail: Description

The fuel rail supplies the necessary fuel to each individual fuel injector and is mounted to the intake manifold. See Fig 1.

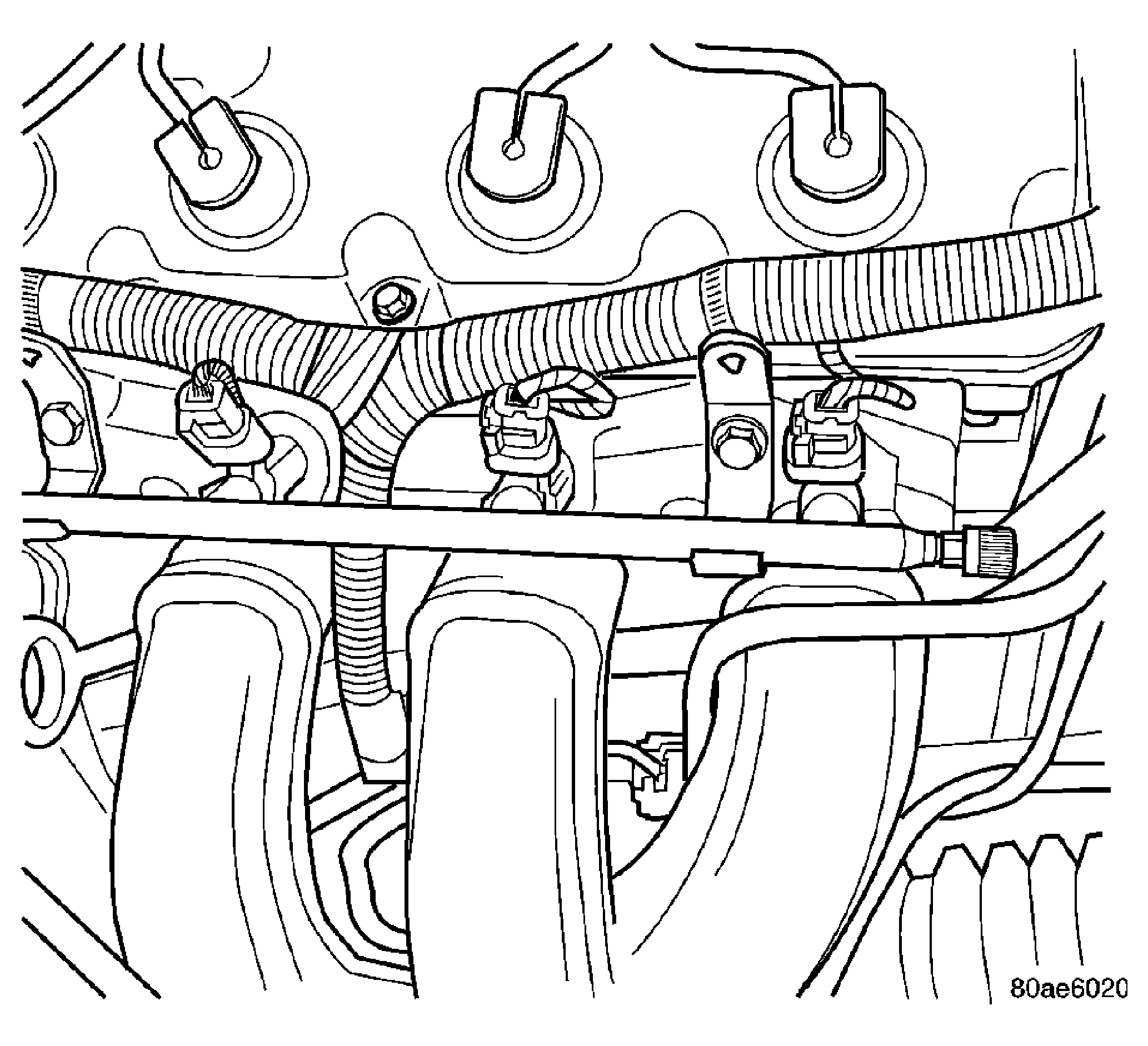

Fig 1: Fuel Rail
GC0019420Courtesy of DAIMLERCHRYSLER CORP.
