A-Pillar Trim: Removal: Notes

  1. Disengage clips attaching trim to A-pillar.
  2. Remove A-pillar trim from vehicle. See Fig 1.

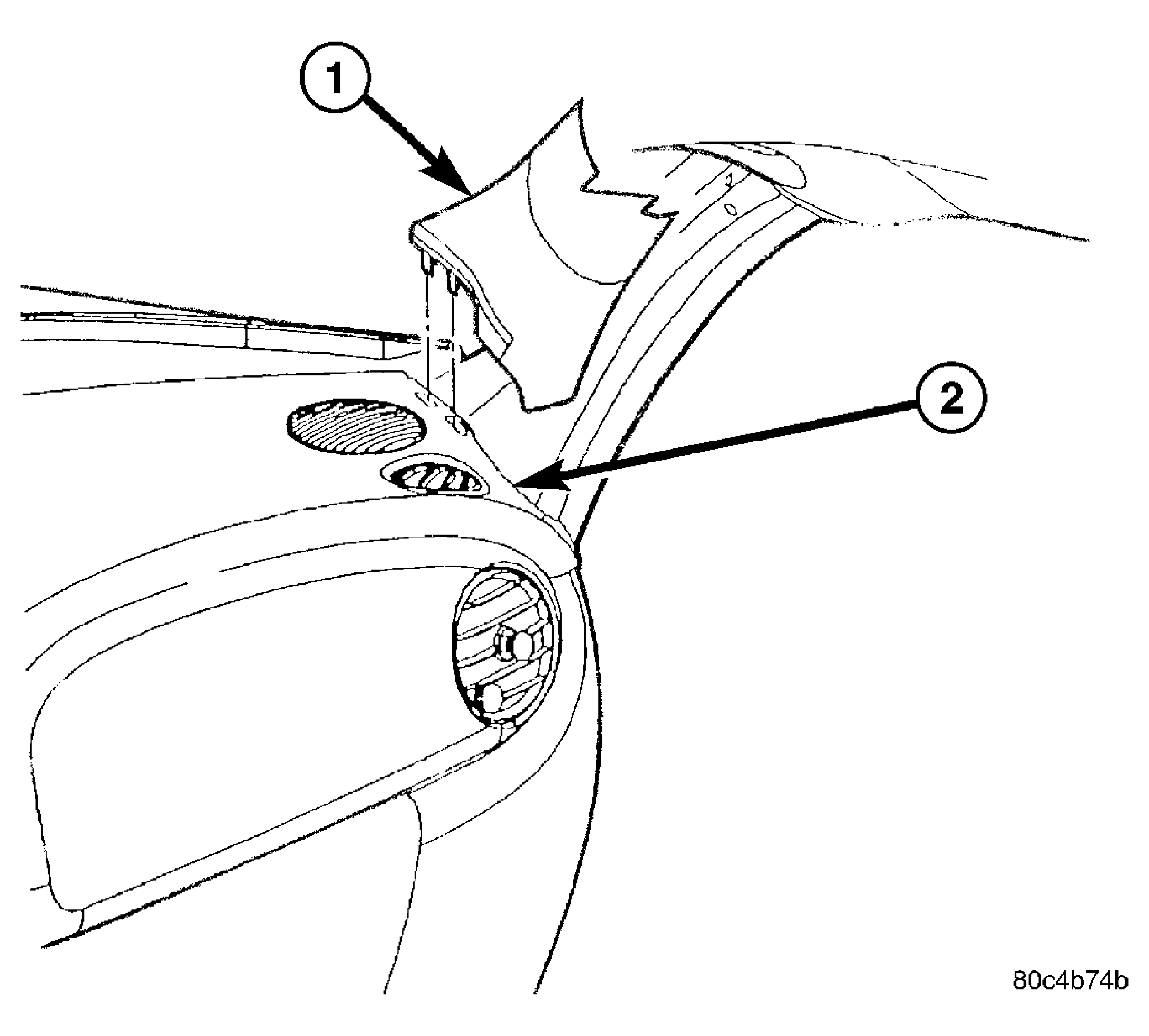

Fig 1: A-PILLAR TRIM
GC0022397Courtesy of DAIMLERCHRYSLER CORP.
1 - WINDSHIELD ( A-PILLAR ) SIDE GARNISH TRIM
2 - INSTRUMENT PANEL TOP COVER
