Steering Column Opening Cover: Installation

  1. Place the steering column cover into position and make sure the orientation of the hinge is correct and rotate the cover into place. See Fig 1.

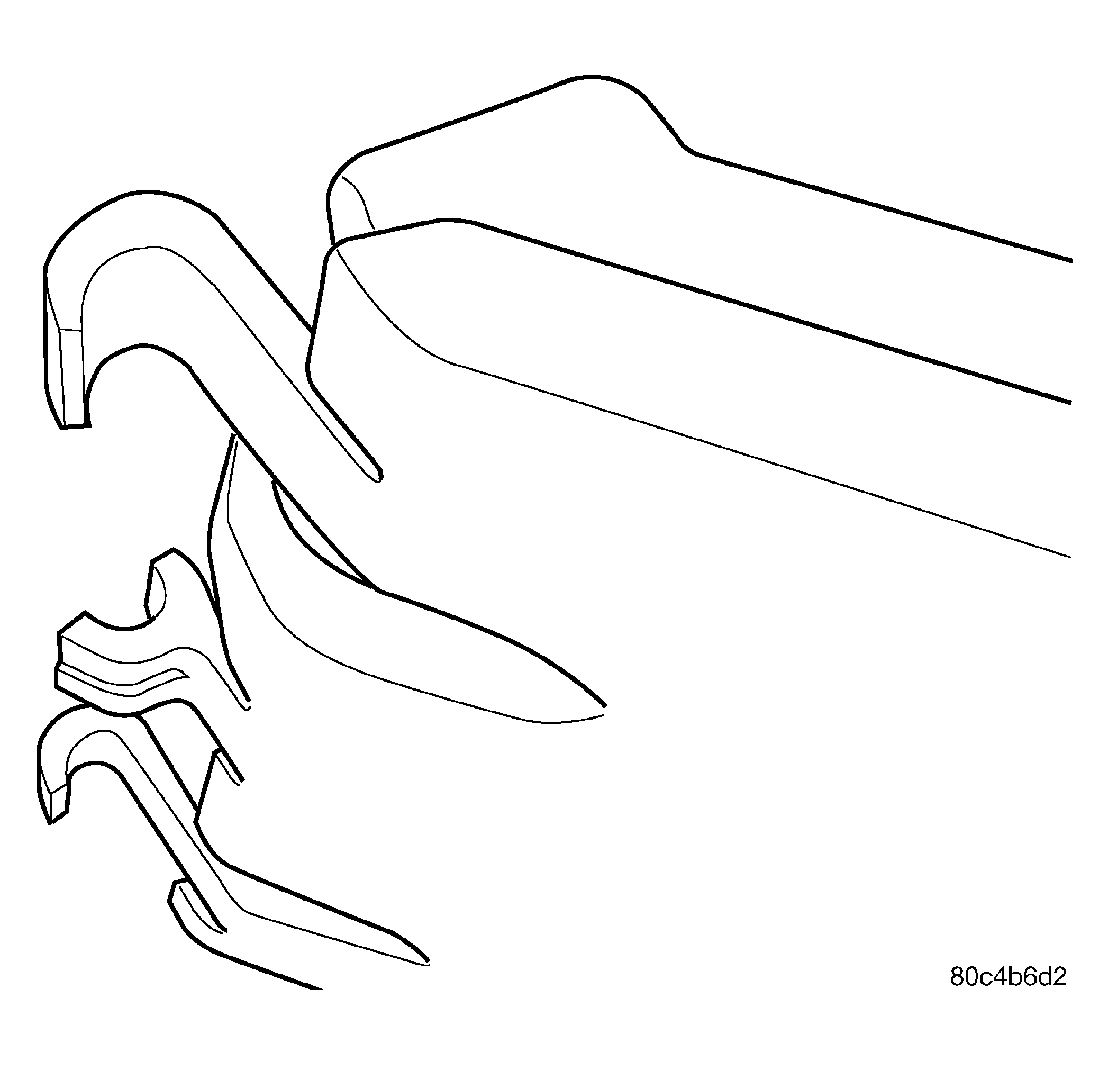

    Fig 1: STEERING COLUMN COVER HINGE
    GC0022396Courtesy of DAIMLERCHRYSLER CORP.
  2. Rotate the cover upward and snap into place. See Figure.
