Headliner Assembly: Installation

  1. Place headliner into position.
  2. Install five screws into the edge bow strip. See Fig 1 and Fig 2.
  3. Install the headliner extrusion profile to the backlite frame. See Fig 3.
  4. Install screws into the floating bow to attach the headliner. See Fig 4.

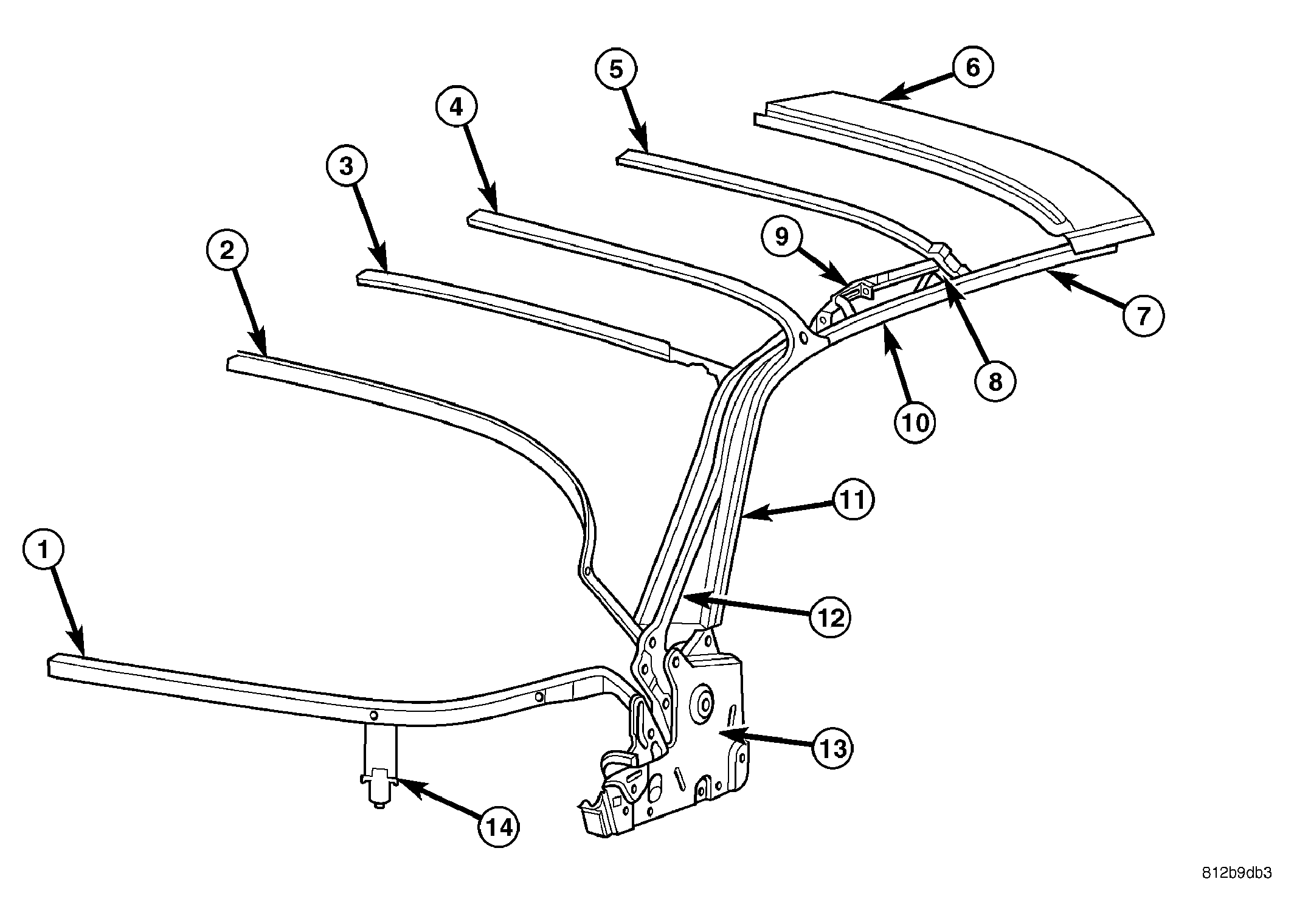

    Fig 1: FOLDING TOP FRAMEWORK
    GC0022256Courtesy of DAIMLERCHRYSLER CORP.
    1 - F-BOW (FLOATING BOW)
    2 - E-BOW (EDGE BOW)
    3 - D-BOW
    4 - C-BOW
    5 - B-BOW
    6 - A-BOW header)
    7 - FRONT RAIL
    8 - TEEPEE LINKS
    9 - B-BOW LINK
    10 - CENTER RAIL
    11 - C-POST STAMPING
    12 - C-POST LINK
    13 - MAIN PIVOT BRACKET
    14 - TENSION STRAP ASSEMBLY

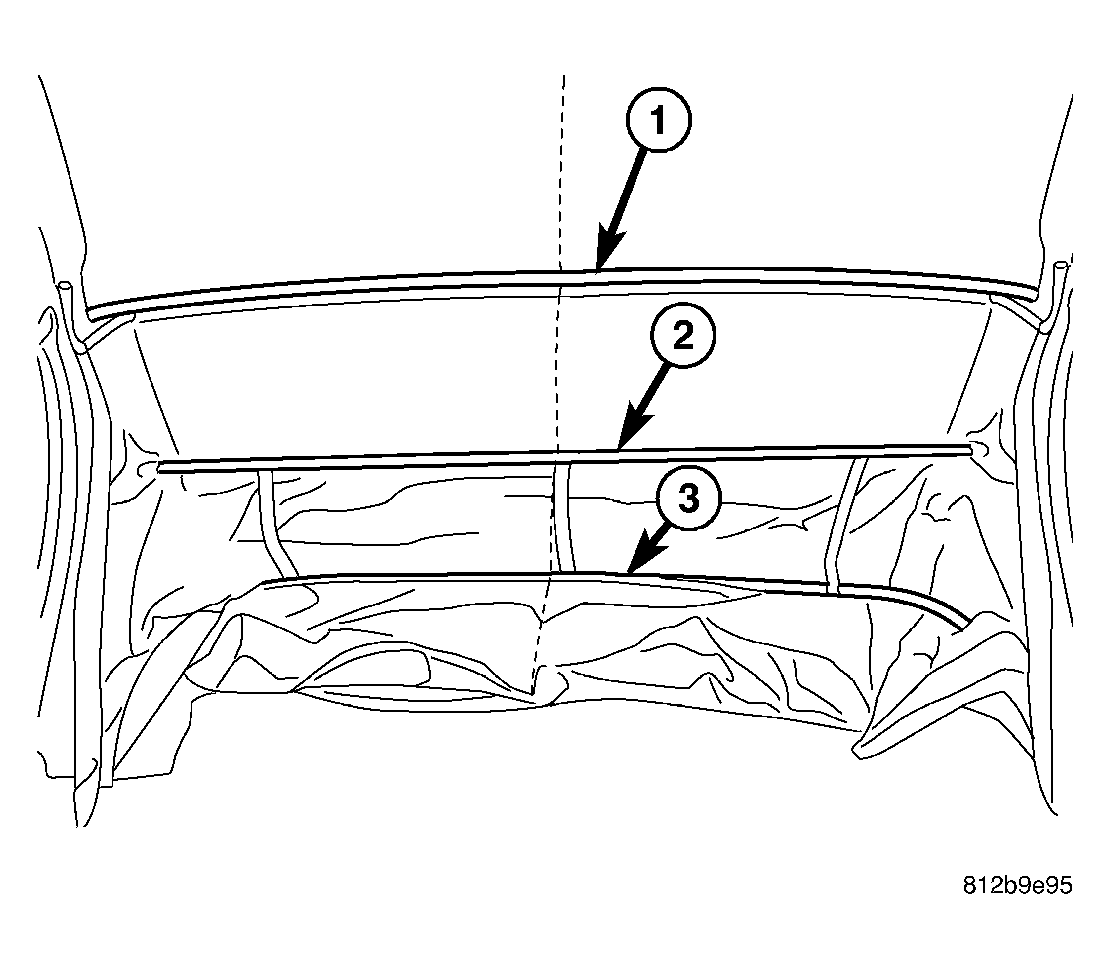

    Fig 2: C-BOW, D-BOW & E-BOW
    GC0022258Courtesy of DAIMLERCHRYSLER CORP.
    1 - C-BOW
    2 - D-BOW
    3 - E-BOW (EDGE BOW)

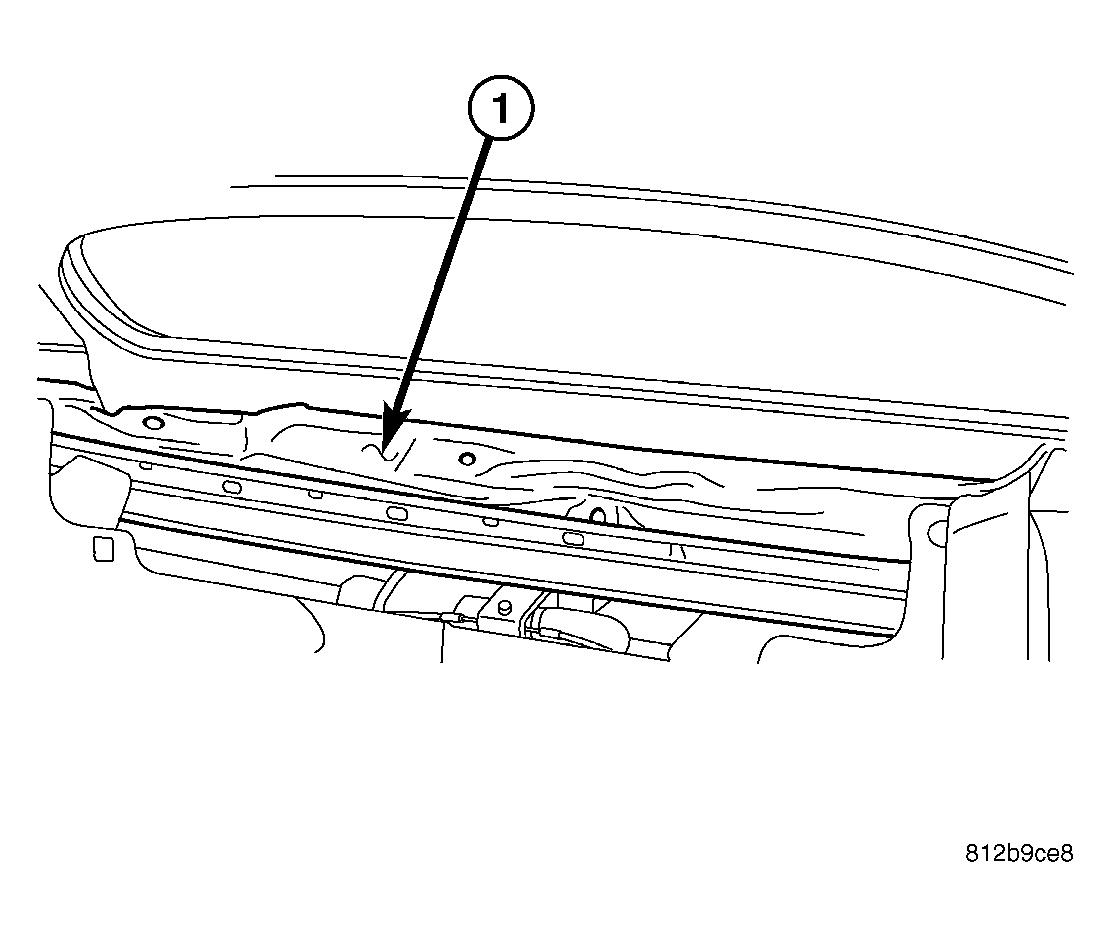

    Fig 3: WATER TROUGH
    GC0022244Courtesy of DAIMLERCHRYSLER CORP.
    1 - WATER TROUGH
    Fig 4: HEADLINER SCREW
    GC0022262Courtesy of DAIMLERCHRYSLER CORP.
    1 - HEADER COVER
    2 - HEADER ATTACHING SCREW
  5. Install C-Post flaps to the C-Post stamping (two expanding two rivets per side). See Fig 5.
  6. Install the headliner attachments (elastic straps) to the folding top frame. See Fig 6.
  7. Install five screws to each bow strip.
  8. Install nine attaching headliner to the front header.
  9. Position the canopy back to the B-Bow. See Fig 7 and Fig 8.
  10. Install tension cable with two spring clips on each side. See Fig 9 and Fig 10.
  11. Install canopy adhesive tape to the front header edges.
  12. Install 12 screws attaching Canopy to front header. See Fig 11.
  13. Operate the folding top assembly to ensure proper operation and fit.

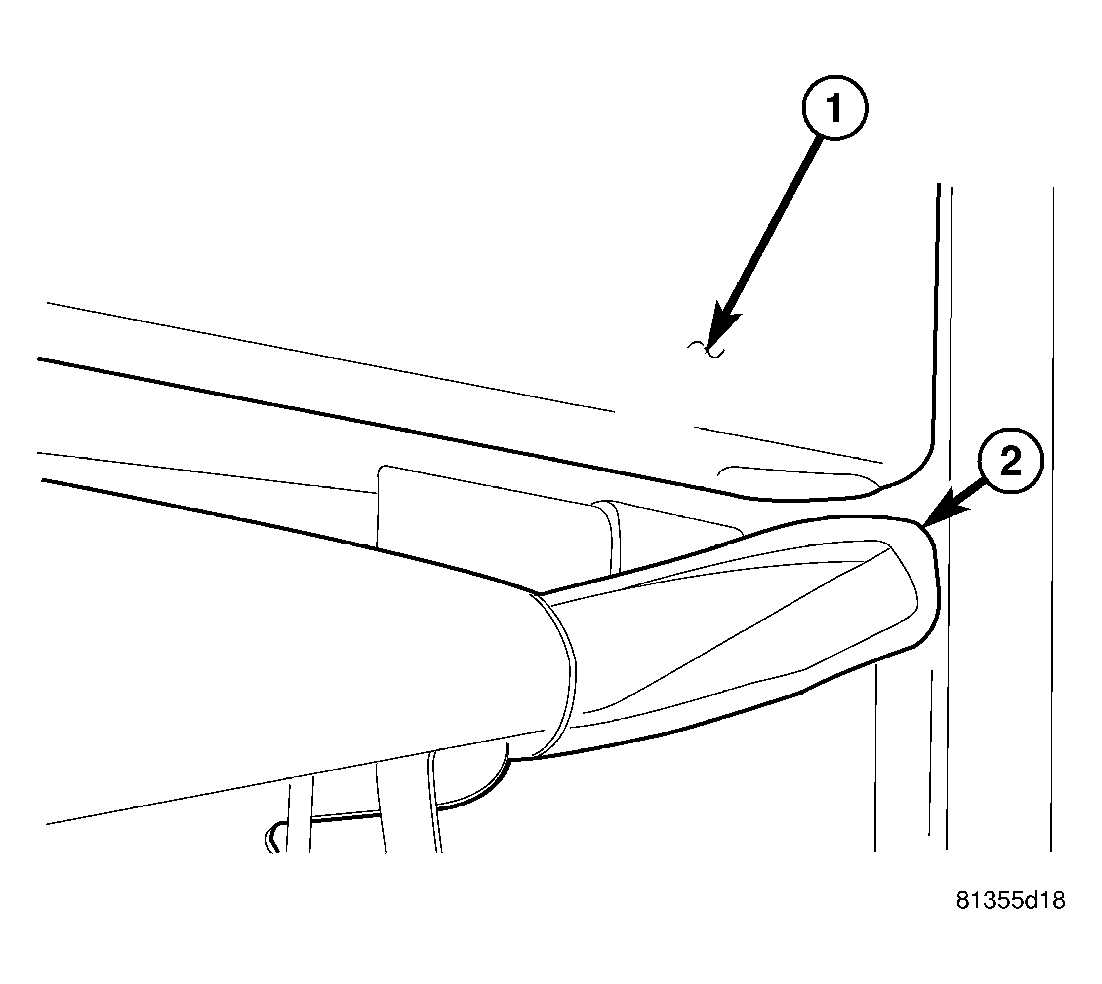

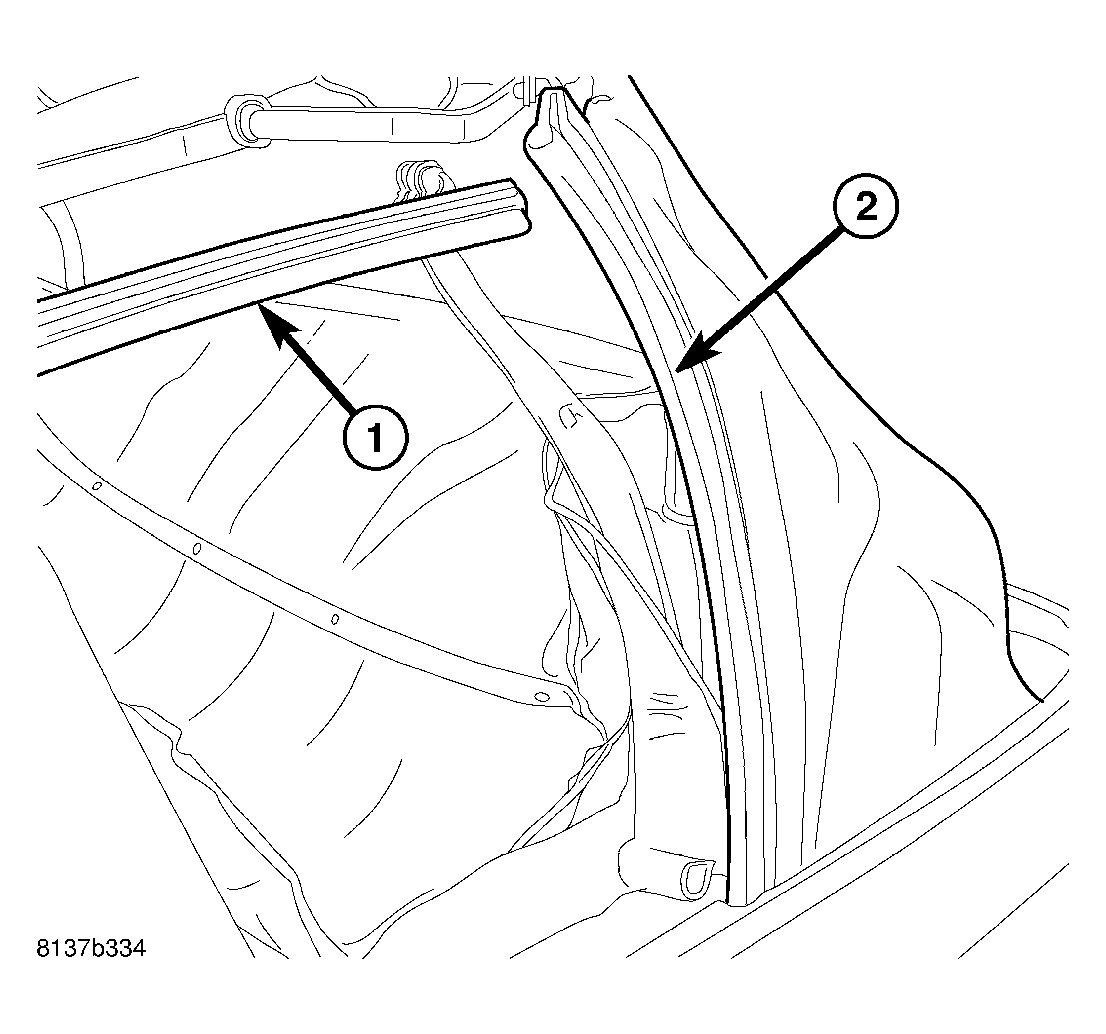

Fig 5: SEALS
GC0022270Courtesy of DAIMLERCHRYSLER CORP.
1 - CONTOUR BOW 2 SEAL
2 - C-POST LINKAGE SEAL

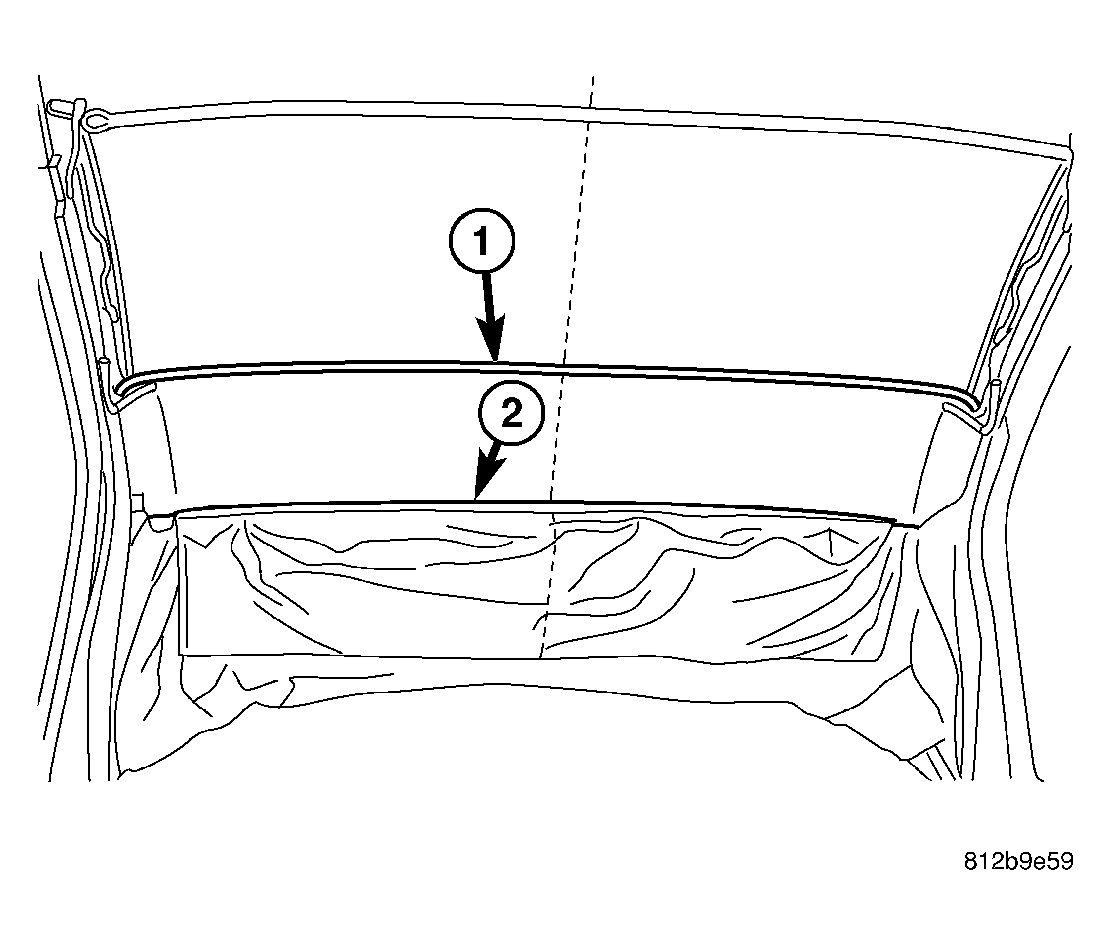

Fig 6: C-BOW & D-BOW
GC0022257Courtesy of DAIMLERCHRYSLER CORP.
1 - C-BOW
2 - D-BOW

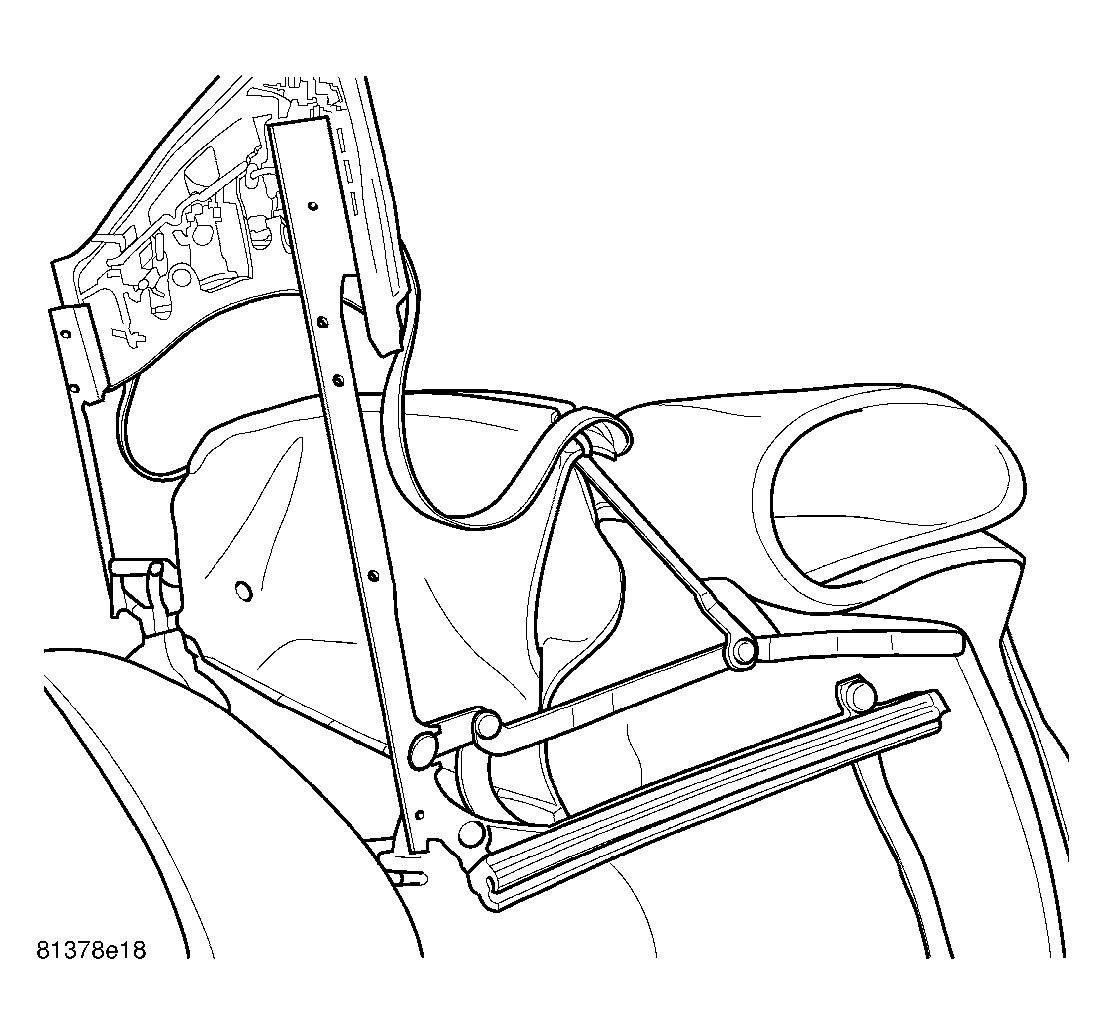

Fig 7: CANOPY AT B-BOW
GC0022269Courtesy of DAIMLERCHRYSLER CORP.

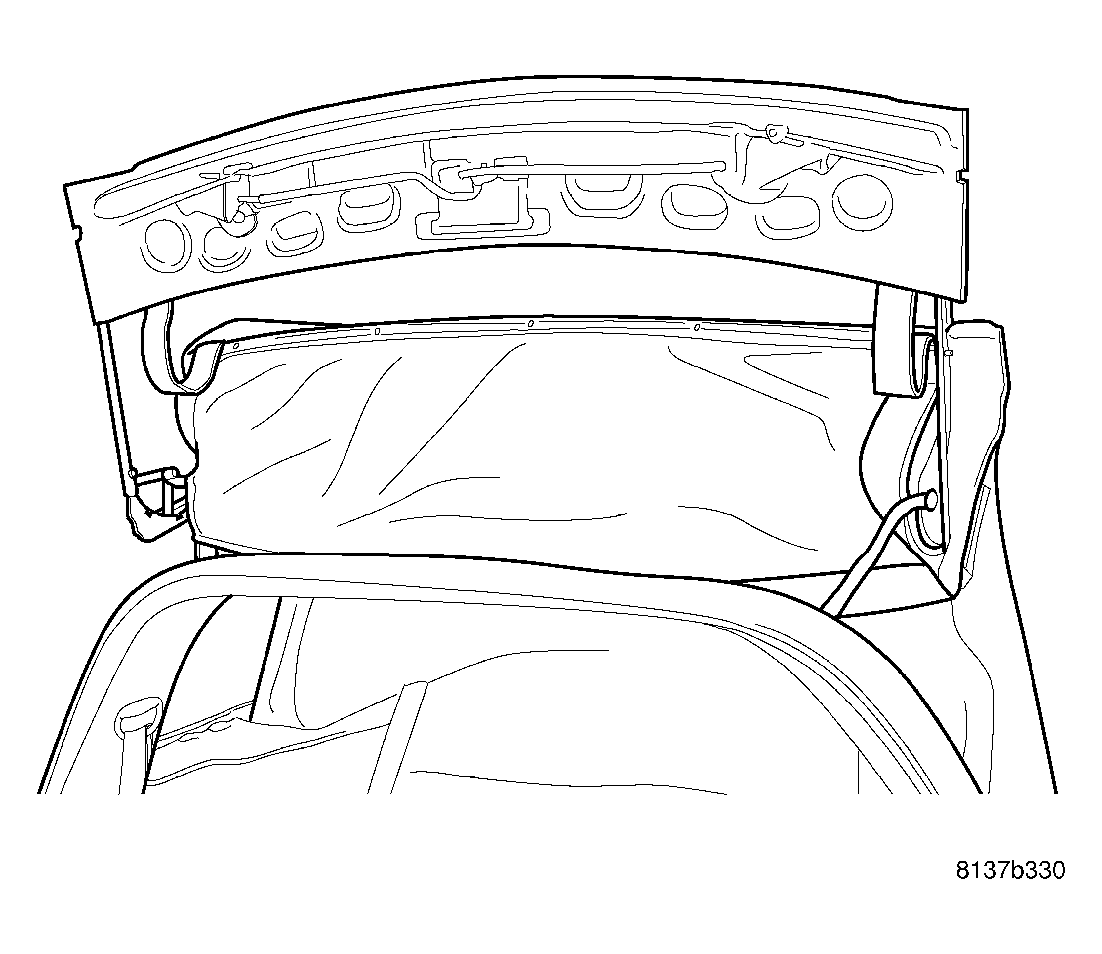

Fig 8: CANOPY FOLDED BACK
GC0022264Courtesy of DAIMLERCHRYSLER CORP.

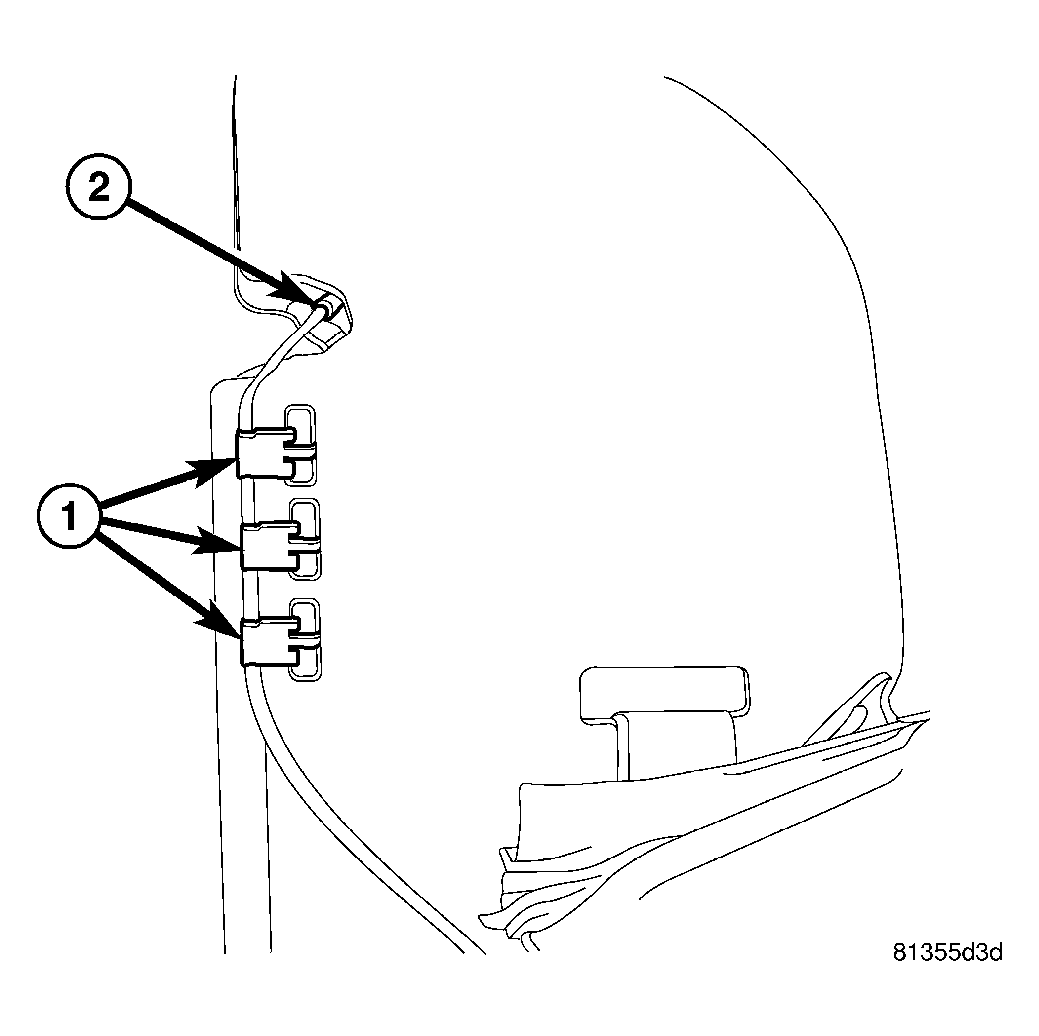

Fig 9: CABLE
GC0022267Courtesy of DAIMLERCHRYSLER CORP.
1 - THREE CLIPS
2 - CABLE END

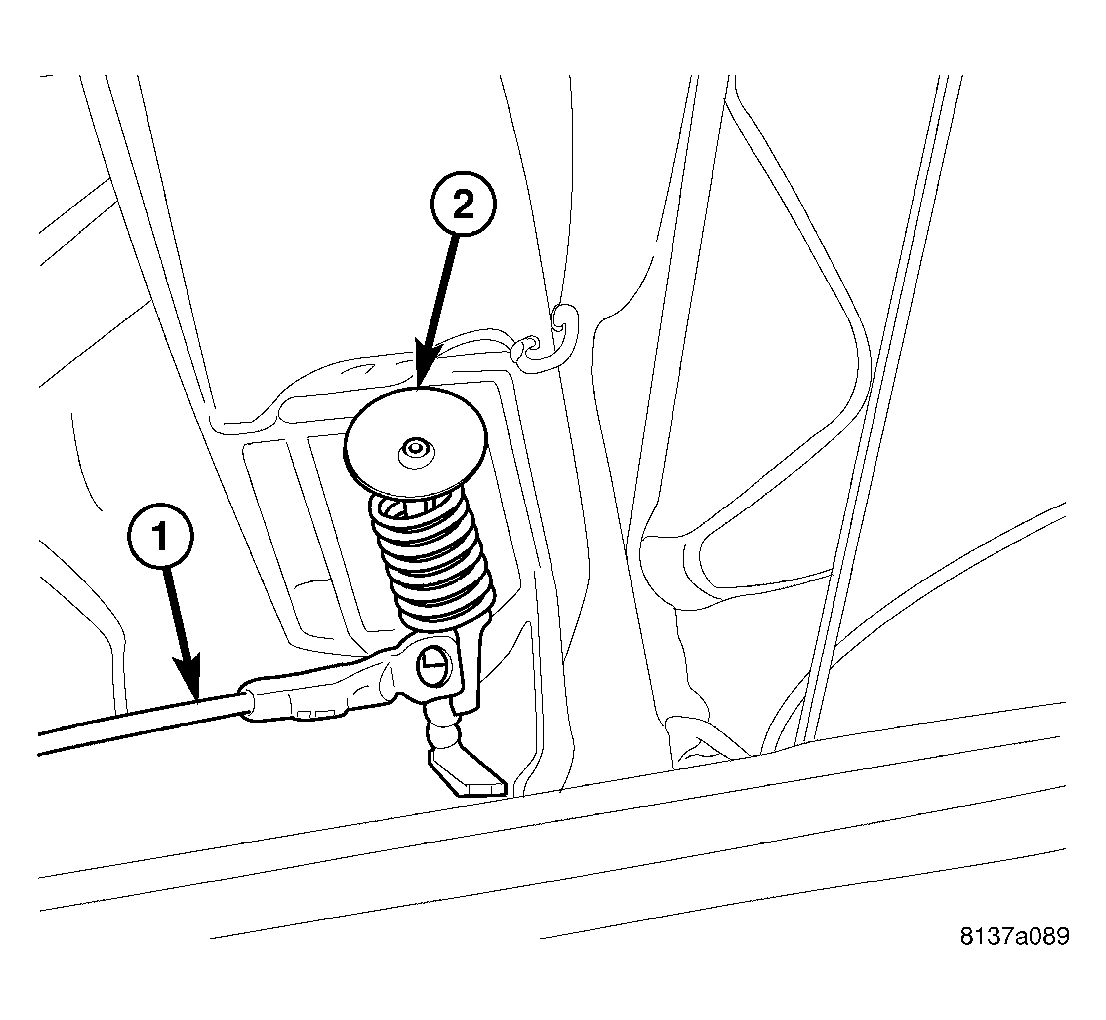

Fig 10: TENSION CABLE SPRING
GC0022268Courtesy of DAIMLERCHRYSLER CORP.
1 - CABLE
2 - SPRING

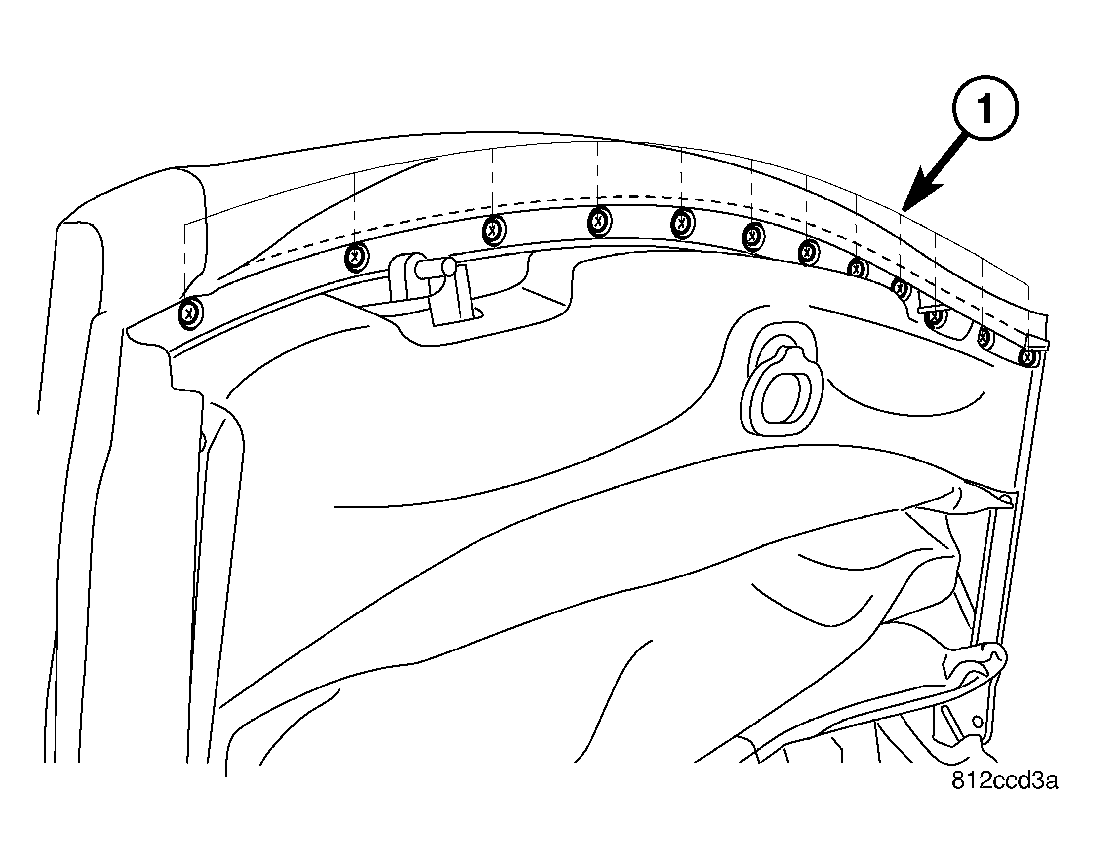

Fig 11: TOP COVER FRONT HEADER
GC0022259Courtesy of DAIMLERCHRYSLER CORP.
1 - ATTACHING SCREWS (12)
