Transmission Temperature Sensor Specifications

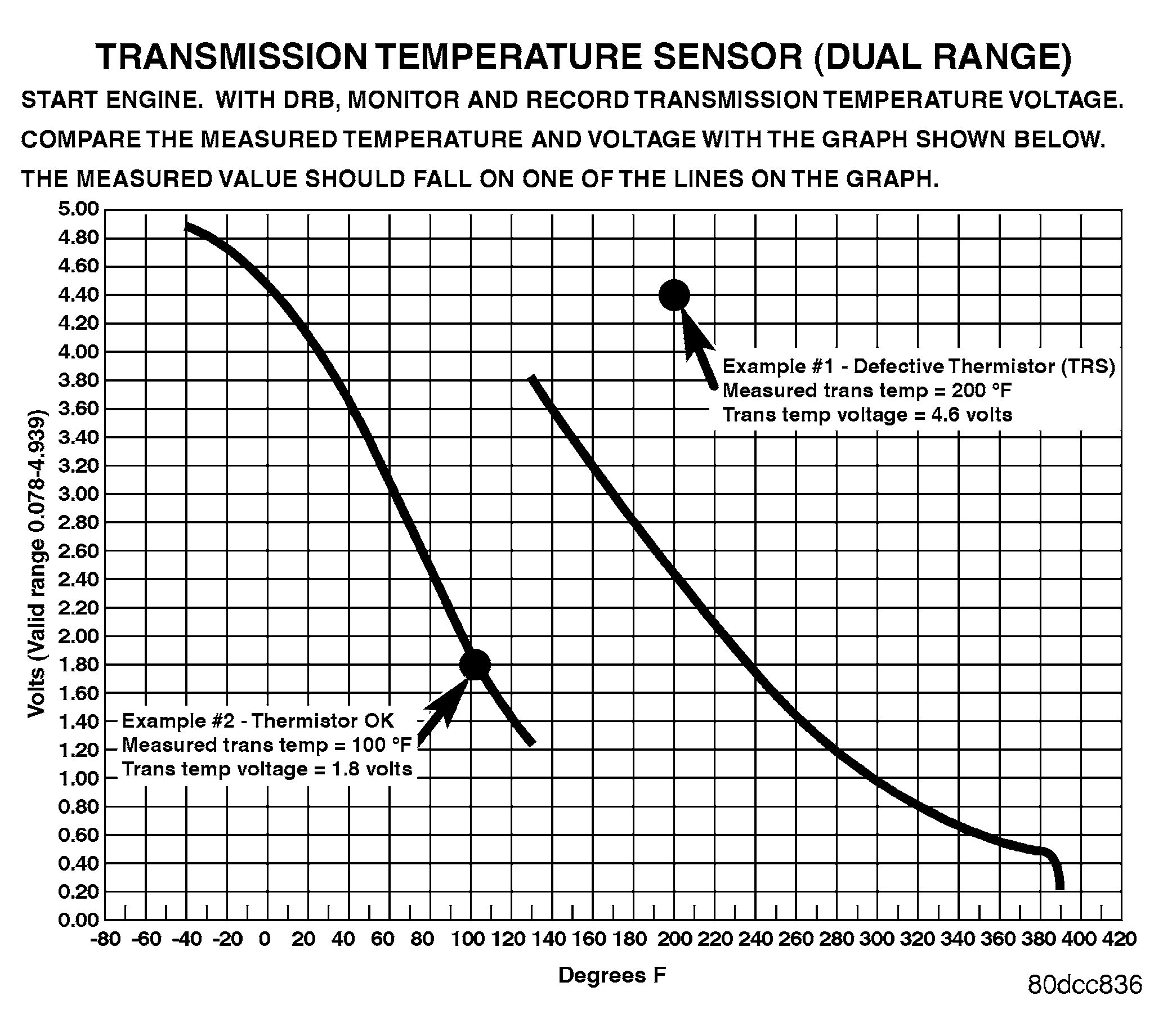

Fig 1: Identifying 11.5 Transmission Temperature Sensor (Dual Range) - Graph

G04549186

Courtesy of DAIMLERCHRYSLER CORP.
