Steering System: Pump: Pump: Assembly

CAUTION: Use care when removing and installing the power steering pump pulley. It is made of plastic composite, except for the center shank. Use the special tools in the shank area only as described in the following procedure.

NOTE: Replace the power steering pump pulley if it is cracked or loose.

Place the power steering pump pulley squarely on end of the power steering pump shaft. Mount Installer, Special Tool C-4063, or an equivalent, in the internal threads of the power steering pump shaft and against power steering pump pulley. See Fig 1.

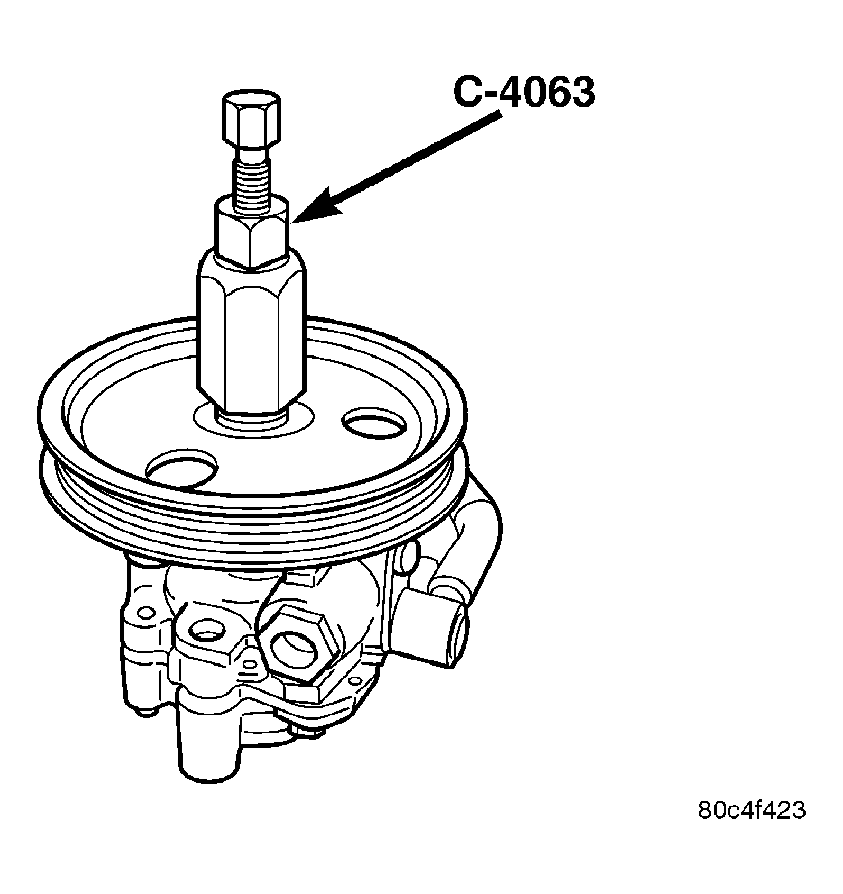

Fig 1: Pulley Installation
Courtesy of DAIMLERCHRYSLER CORP.
Ensuring that the installer and the pulley remain aligned with the pump shaft, turn the installer outer nut and force the pulley onto the power steering pump shaft until it is flush with the end of the pump shaft. Once the pulley is flush with the end of the shaft, the installer outer nut will no longer be able to turn.
Remove the installer from the power steering pump.
Install the power steering pump back on the engine. (Refer to STEERING/PUMP - INSTALLATION)
