Electrical Component Locator: Switches

SWITCHES LOCATION

Component	Location
A/C High Pressure Switch (Non-Turbo)	On back cover of A/C compressor.
A/C High Pressure Switch (Turbo)	On back cover of A/C compressor.
A/C Low Pressure Switch	At right rear corner of engine compartment, on A/C accumulator. See Figure .
Autostick Switch	At center console. See Figure .
Back-Up Lamp Switch	On left side of transaxle. See Figure .
Brake Lamp Switch	On brake pedal bracket. See Figure .
Brake Warning Indicator Switch	At left rear of engine compartment. See Figure .
Clutch Pedal Position Switch (M/T)	On clutch/brake pedal bracket. See Figure .

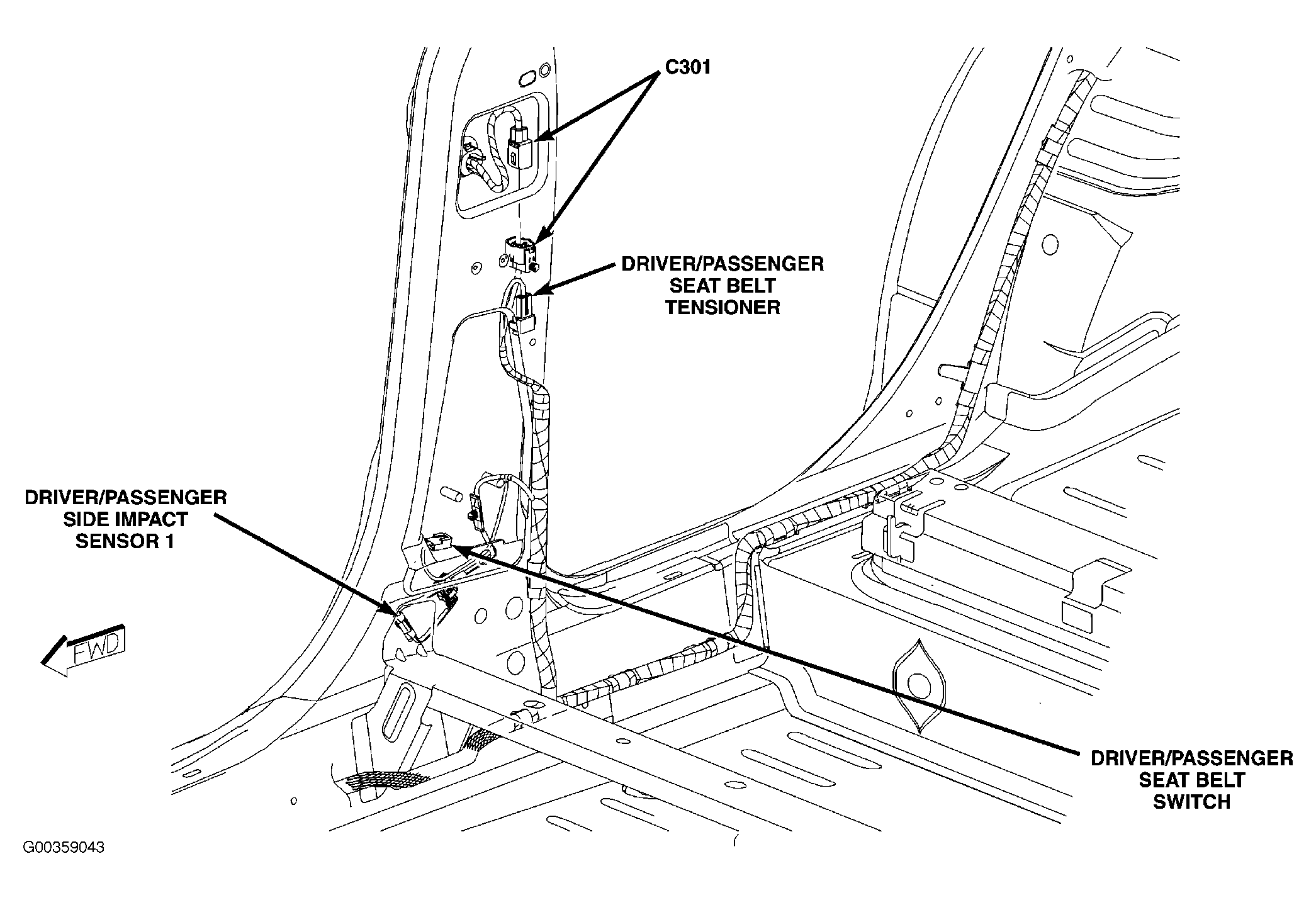

Driver Seat Belt Switch (Convertible)	On left side of body. See Figure .

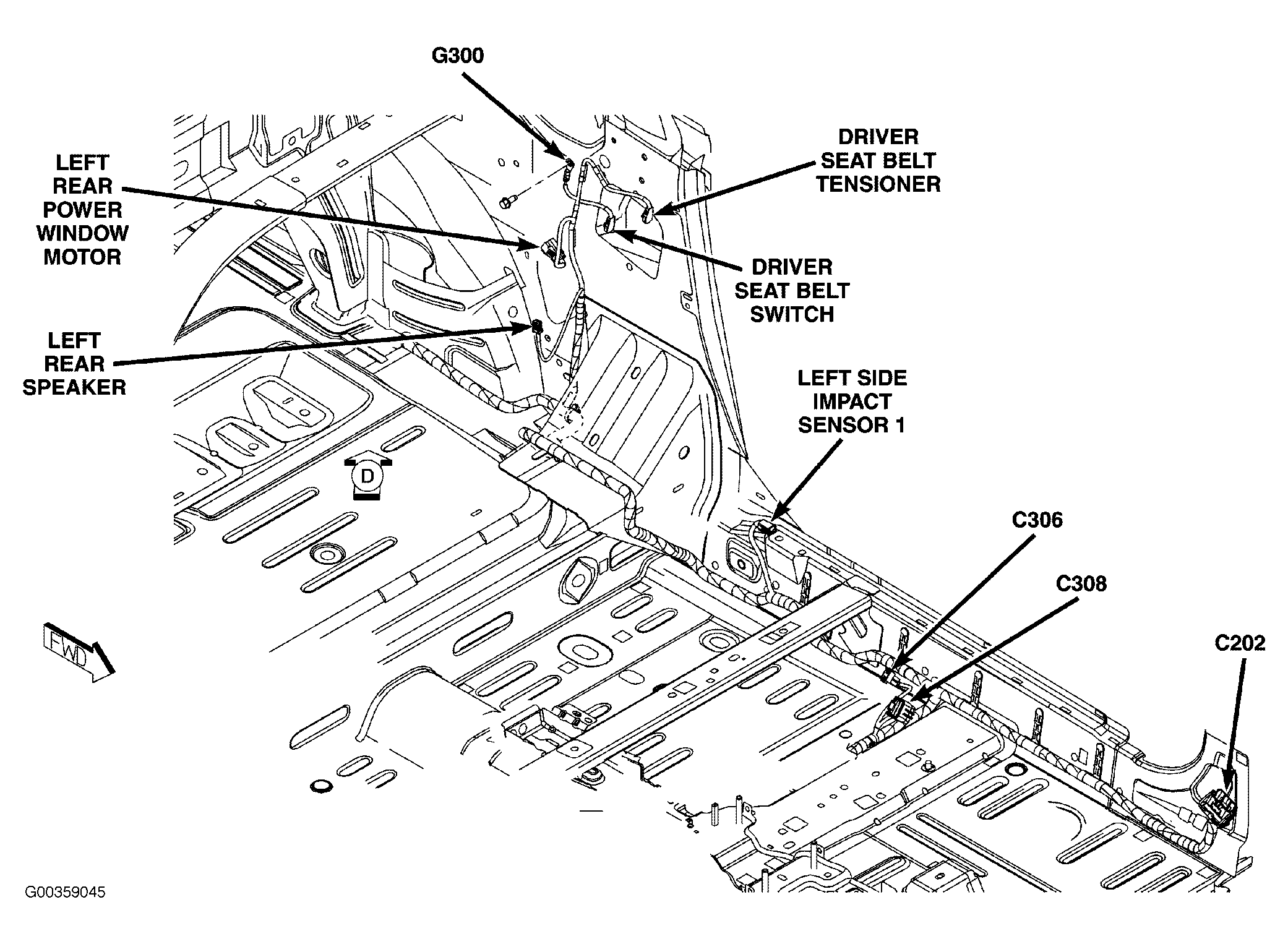

Driver Seat Belt Switch (Except Convertible)	Base of left "B" pillar. See Figure .

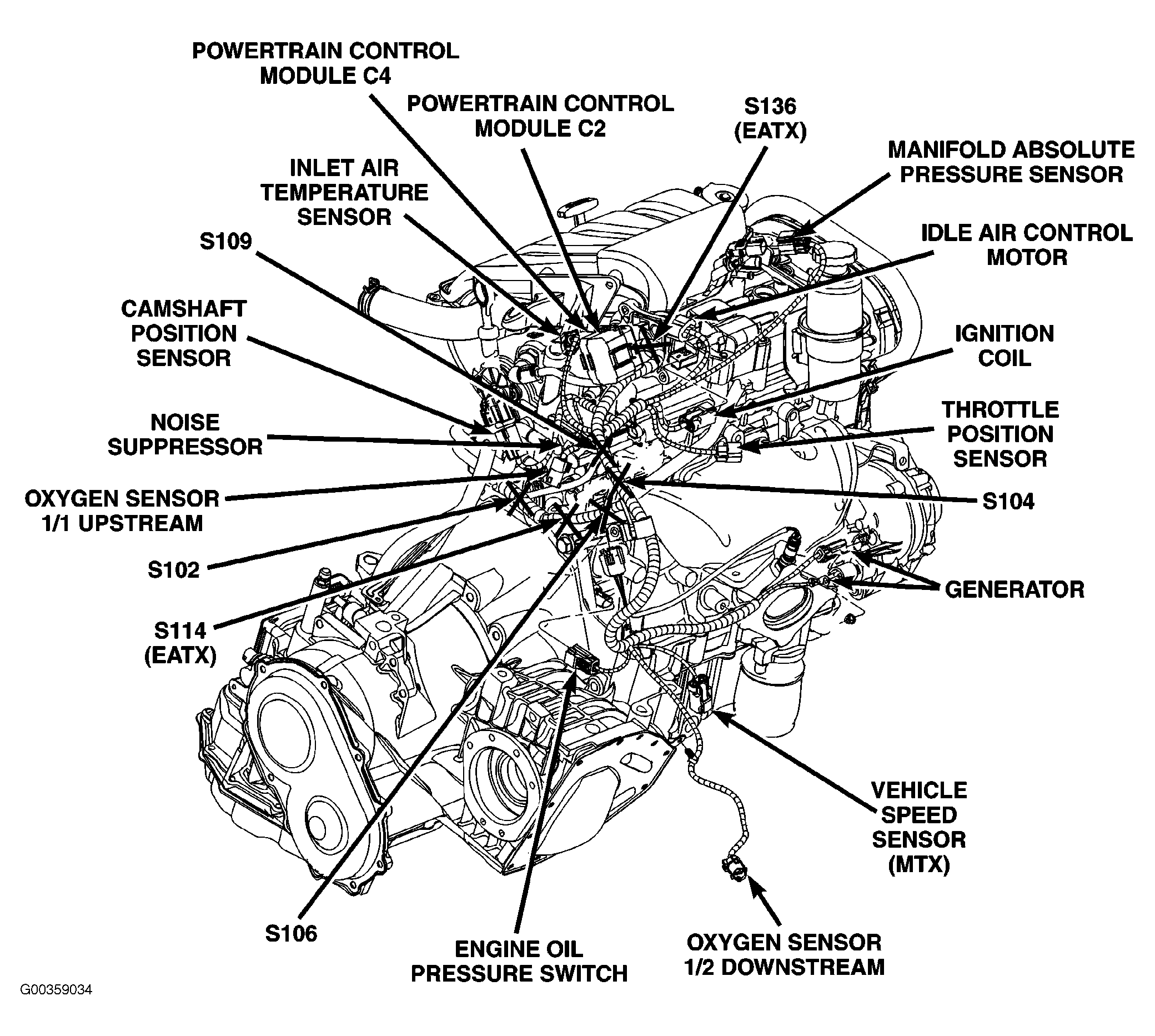

Engine Oil Pressure Switch (Non-Turbo)	On right rear side of engine block. See Figure .

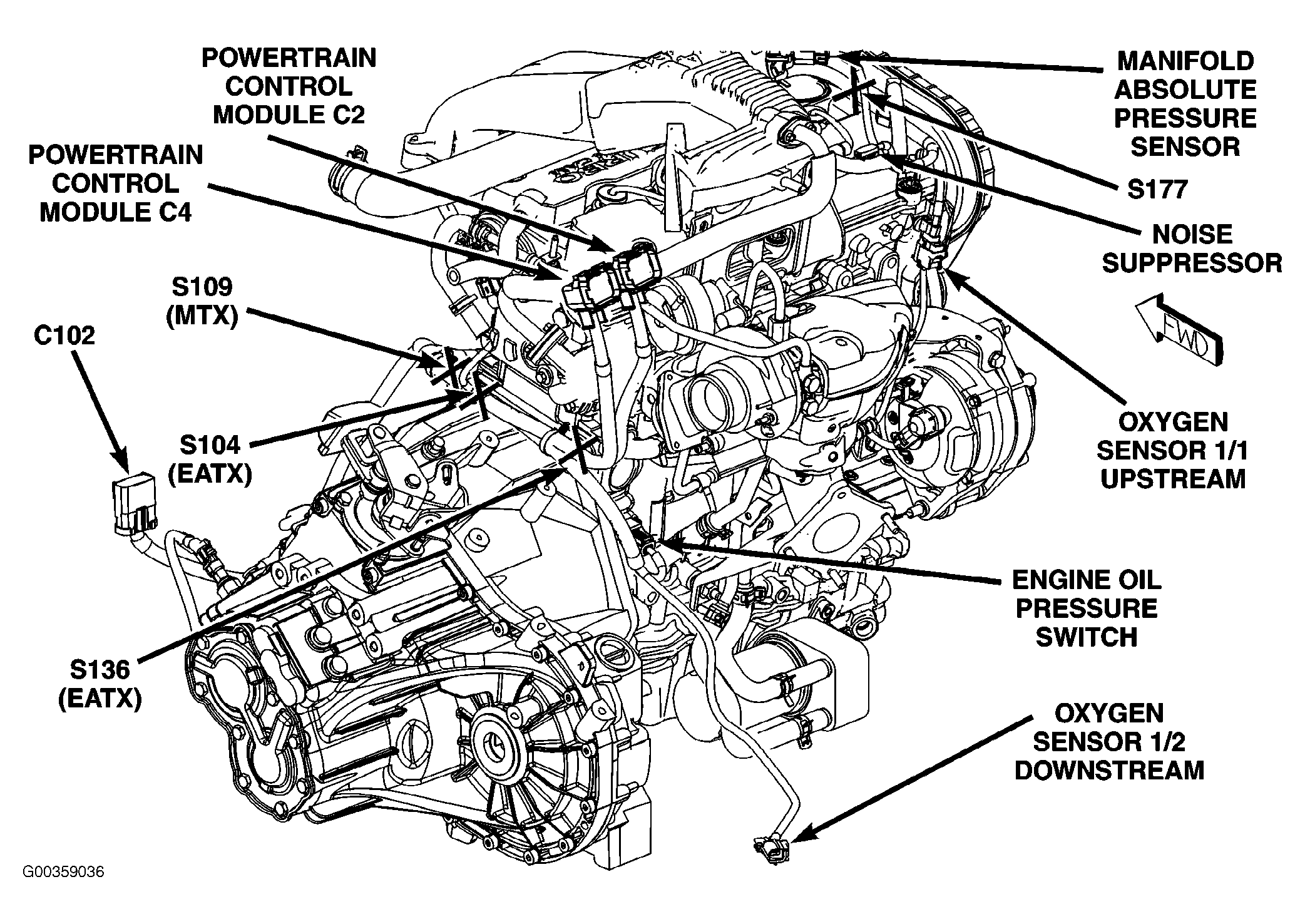

Engine Oil Pressure Switch (Turbo)	On right rear side of engine block. See Figure .
Hood Ajar Switch	At left rear corner of engine compartment.
Hood Light Switch	At left rear of engine compartment.
Left Cylinder Lock Switch (Convertible)	In left door. See Figure .
Left Cylinder Lock Switch (Except Convertible)	In left door. See Figure .
Left Rear Door Ajar Switch	Above left rear wheelwell. See Figure .
Liftgate Ajar Switch	Inside lower center of liftgate. See Figure .
Liftgate Cylinder Lock Switch	Inside lower center of liftgate. See Figure .
Parking Brake Switch	At base of park brake lever. See Figure .

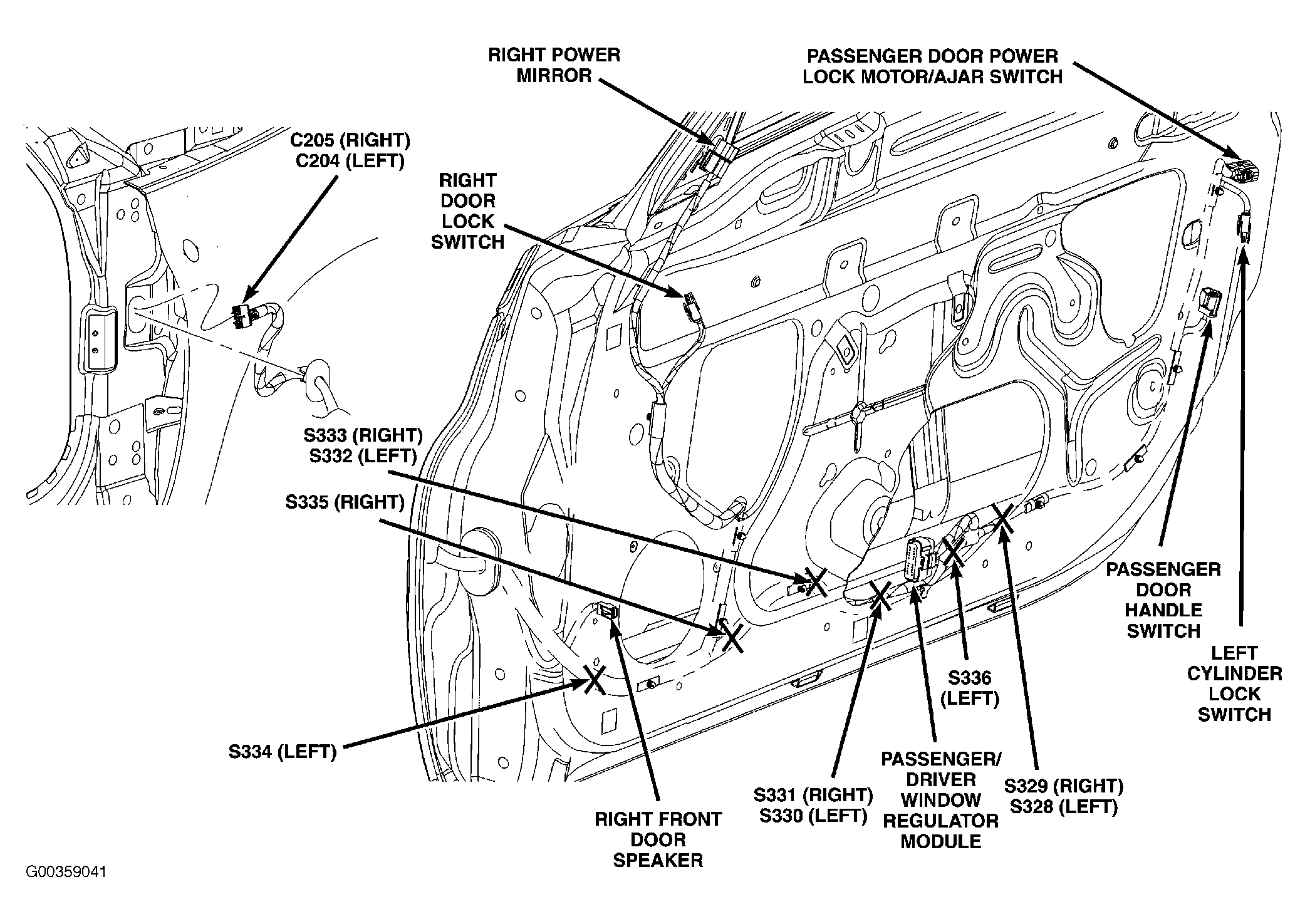

Passenger Door Handle Switch (Convertible)	In passenger door. See Figure .
Passenger Door Power Lock Motor/Ajar Switch	In passenger door. See Figure .
Passenger Seat Belt Switch (Except Convertible)	Base of right "B" pillar. See Figure .
Power Steering Pressure Switch	At left rear of engine compartment. See Figure .
Right Cylinder Lock Switch (Except Convertible)	In right door.
Right Rear Door Ajar Switch	Above right rear wheelwell. See Figure .
Transmission Solenoid/Pressure Switch Assembly (A/T)	On lower left side of transaxle. See Figure .
