Blower Motor Power Module: Removal
WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Remove the right quarter trim panel and right D-pillar trim panel from the quarter inner panel (Refer to BODY/INTERIOR/QUARTER TRIM PANEL - REMOVAL) .

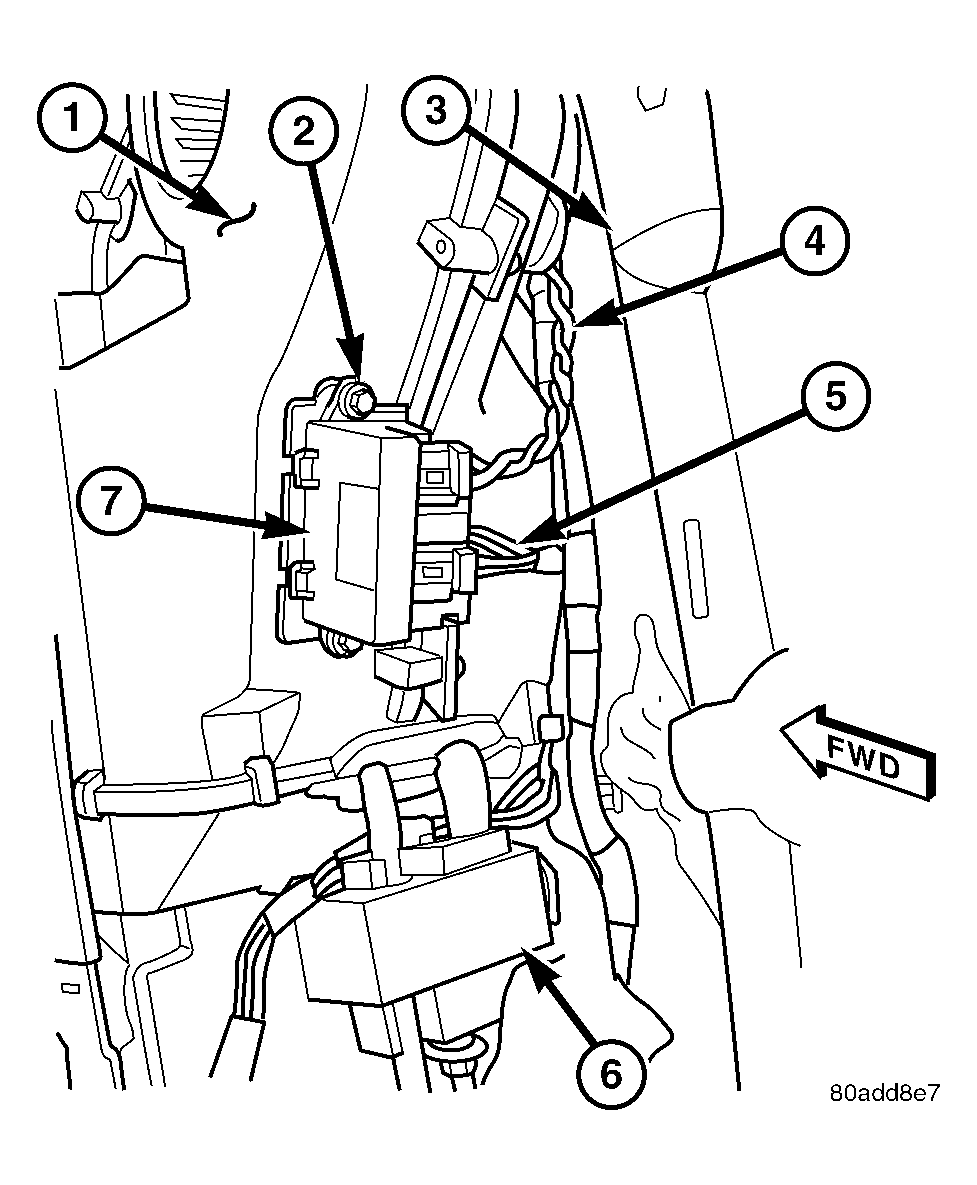

- Disconnect the rear HVAC wire harness connector from the rear blower motor power module. See Fig 1.
- Disconnect the rear blower motor wire harness connector from the rear blower motor power module.
- Remove the two screws that secure the rear blower motor power module to the rear HVAC housing and remove the power module.
| 1 - REAR HVAC HOUSING |
| 2 - SCREW (2) |
| 3 - D-PILLAR |
| 4 - REAR BLOWER MOTOR WIRE HARNESS |
| 5 - REAR HVAC WIRE HARNESS |
| 6 - A/C EXPANSION VALVE |
| 7 - REAR BLOWER MOTOR POWER MODULE |
