Infrared Temperature Sensor: Description
WARNING: This page is about a different car, the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, and 2005 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
The infrared temperature sensor consists of two infrared transducers that are concealed behind a clear lens located near the top of the instrument panel center bezel. See Fig 1. These sensors are used only on models equipped with the optional automatic temperature control (ATC) heating-A/C system. A molded plastic connector receptacle on the bottom of the panel outlet unit is concealed behind the center bezel. A short, dedicated jumper wire harness routed behind the center bezel connects the sensors directly to the ATC A/C-heater control module near the bottom of the center bezel. The infrared temperature sensor is integral to the center bezel panel outlet.

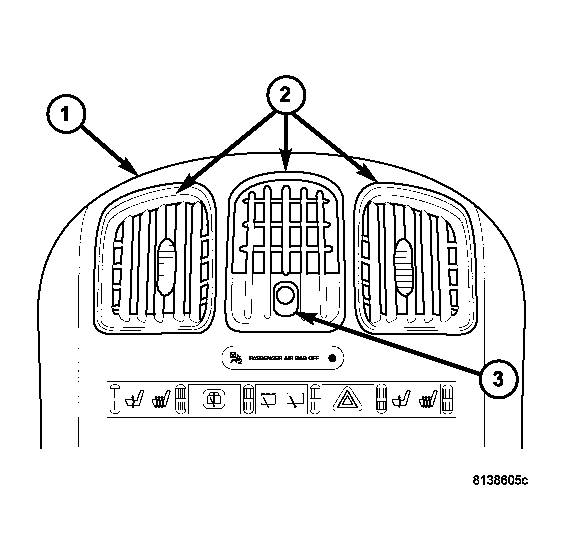

| 1 - INSTRUMENT PANEL CENTER BEZEL |
| 2 - CENTER IP AIR OUTLETS |
| 3 - INFRARED TEMPERATURE SENSOR |
